GE DS200TCTGG1AFF | Mark V Simplex Trip Board

• Brand: GE General Electric
• Full Model Number: DS200TCTGG1AFF
• Lifecycle Status: Legacy / Obsolete
• Core Function: Mark V Simplex Trip Board for turbine trip and shutdown control
• Top 3 Technical Specs: 21 plug-in relays; 3 × 50-pin connectors; 2 × 12-pin connectors
• Functional Acronym: TCTG
• PCB Coating: Normal coating
• Functional Revision: A / F
• Artwork Revision: F
• System: GE Speedtronic Mark V
• Stock & Condition: Physical stock and exact condition to be confirmed before PO; New Surplus or Tested Stock subject to quotation

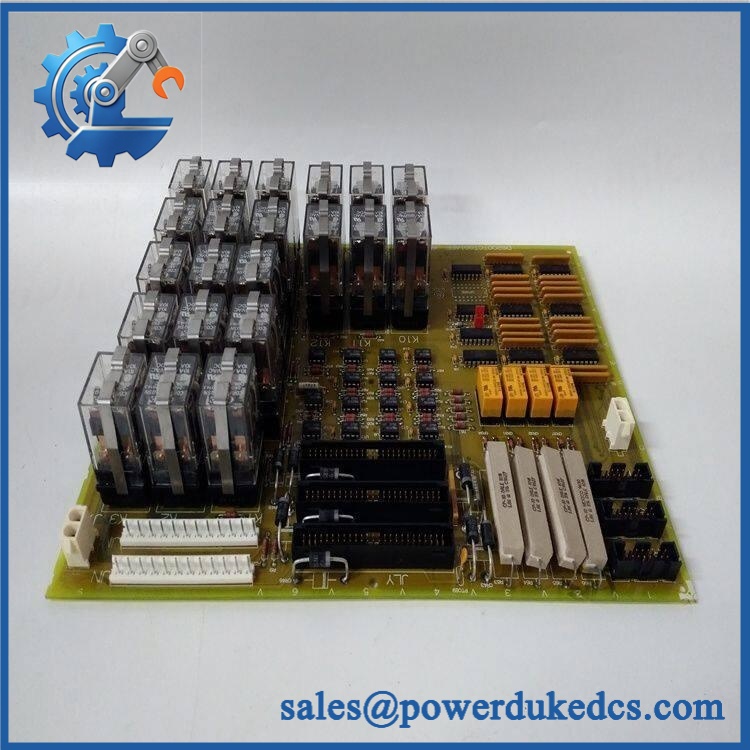

The DS200TCTGG1AFF is identified as a GE Mark V TCTG Simplex Trip Board. Available technical references specify 21 plug-in relays, three 50-pin connectors labeled JLY, JLX, and JLZ, plus two 12-pin connectors labeled JN and JM.

Obsolescence & Supply Chain Deep Dive

A failed DS200TCTGG1AFF can create a direct maintenance issue because it belongs to the legacy GE Mark V turbine-control platform and performs relay-based trip functions. The board is associated with the TCTG Simplex Trip function, including trip-related relay circuits and turbine shutdown interfaces. Consequently, sourcing an exact revision matters more than simply finding another DS200 board with a similar physical format.

For an operating Mark V installation, retaining an exact spare can avoid the engineering and commissioning work associated with replacing an entire control platform. The TCO calculation should include outage exposure, emergency freight, engineering labor, testing, and commissioning time. The DS200TCTGG1AFF uses 21 plug-in relays, so procurement should also account for relay condition and connector integrity rather than treating the board as a generic electronic assembly. (For obsolete hardware, verified surplus inventory can shorten sourcing time when factory production is no longer the practical supply route.)

Compatibility & Replacement Matrix

Field Traps — Watch Out

• Revision mismatch: The exact model is , with functional revisions A/F and artwork revision F. Related variants such as DS200TCTGG1AEC are separately identified, so the complete suffix should be matched before procurement.
• Relay and connector configuration: The board contains 21 plug-in relays and five identified multi-pin connectors. Document each cable location before removing the existing board, then verify the replacement against the same connection scheme.

GE DS200TCTGG1AFF

Quality Assurance & Testing SOP

For a legacy trip board, inspection should focus on the actual board, revision, relay condition, and connector integrity rather than relying solely on the DS200 family designation.

• Part-number verification: Confirm the board identification reads and record visible revision markings.
• OEM anti-counterfeit visual inspection: Inspect PCB markings, labels, component markings, solder quality, connector construction, coating, and evidence of unauthorized rework.
• Physical inspection: Check for corrosion, contamination, cracked components, damaged PCB traces, bent pins, loose hardware, and connector damage.
• Relay inspection: Examine all 21 plug-in relays for cracked housings, damaged pins, discoloration, loose retention hardware, and signs of overheating.
• Connector inspection: Check JLY, JLX, JLZ, JN, and JM for mechanical damage and secure mounting.
• Power-on self-test: Where an approved Mark V test fixture is available, energize the board under controlled conditions and check for abnormal indications.
• Relay switching test: Exercise applicable relay outputs using an approved test fixture and verify contact-state changes against the applicable test specification.
• I/O load testing: Apply controlled representative loads within approved electrical limits and monitor relay contacts, connectors, and board behavior.
• Trip-path verification: Where the appropriate Mark V test environment is available, verify applicable trip and shutdown signal paths.
• Final QA record: Record part number, revision, serial/identification data, relay inspection results, test date, and inspector approval before packing.

The DS200TCTGG1A family is documented as containing multiple dedicated relay circuits, including ETR, PTR, generator-breaker, and manual/external trip functions. Testing should therefore follow the site-approved Mark V procedure rather than relying on a generic PCB power-up test.

Procurement & Lifecycle FAQ

Is the GE genuinely in stock, and what is the cutoff for emergency shipping?

Confirm physical inventory, exact suffix, condition, test status, and packing completion before releasing the PO. Public listings currently show inventory from specialist suppliers, but those listings do not establish the seller’s current physical inventory for your order.

For an emergency requirement, request the same-day shipping cutoff, carrier option, and estimated dispatch time in the quotation.

How do you guarantee the condition and authenticity of an obsolete ?

Request actual-unit photographs showing the identification label, PCB markings, connectors, and relay assemblies. The QA record should document visual inspection, relay condition, connector inspection, and functional testing where an appropriate Mark V test fixture is available.

Are there any firmware compatibility issues I should warn my engineers about before issuing the PO?

The primary procurement concern is exact hardware and revision matching rather than assuming that a firmware flash will make different TCTG variants interchangeable. The is identified with functional revisions A/F and artwork revision F, while other TCTG variants carry different revision combinations.

Is the a direct replacement for DS200TCTGG1A variants?

Do not approve substitution solely from the common DS200TCTGG1A base number. Variants such as DS200TCTGG1AEC and have different revision designations. Match the complete part number and the installed system documentation before replacement.

What are the warranty and return terms?

The quotation should clearly state warranty duration, DOA coverage, return window, accepted condition, and functional-test coverage. For obsolete boards, specify whether the supplied unit is New Surplus, Tested Refurbished, or repaired stock so the purchasing team can evaluate the warranty basis before issuing the PO.
