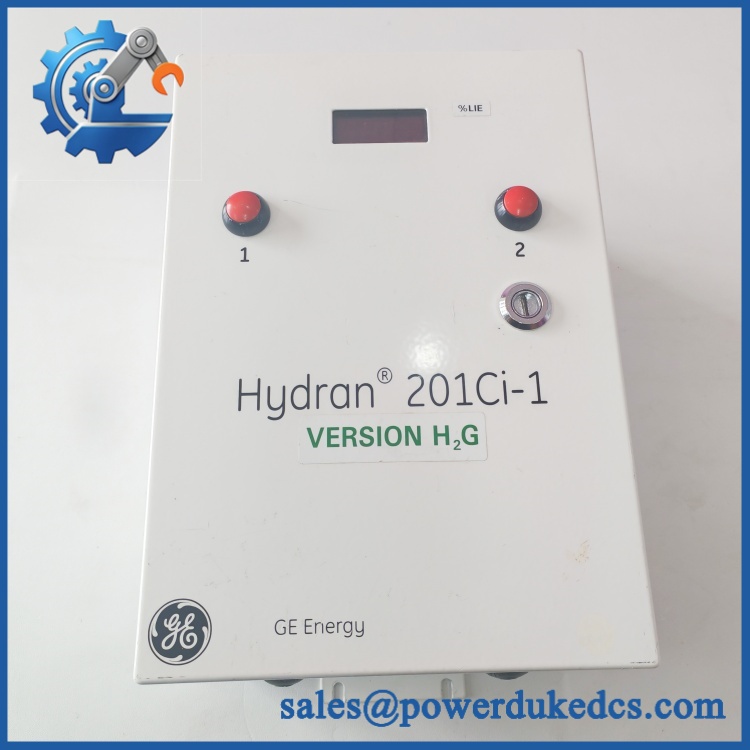

GE H201Ci-1 | Hydran 201i One Channel Transformer Controller

Description

• Brand: GE Energy / GE Digital Energy
• Full Model Number: H201Ci-1
• System/Series Family: Hydran 201i
• One-Sentence Core Function: One-channel remote controller for a Hydran 201Ti intelligent transformer dissolved-gas transmitter
• Top 3 Hardcore Specs: 0–2000 ppm H₂-equivalent display range; isolated 4–20 mA output; 3 SPDT alarm relays
• Compatible Transmitter: Hydran 201Ti
• Measurement Range: 0–2000 ppm H₂ equivalent
• Accuracy: ±10% of reading ±25 ppm
• Local Display: Digital LED, 0–1999 ppm scale
• Analog Output: Isolated 4–20 mA, 0–2000 ppm
• Alarm Relays: Gas High, Gas High-High, Fail
• Supervisory Link: Isolated RS-485
• Remote Interface: RS-232 / USB
• Network Capacity: Up to 128 H201Ti units through the network architecture
• Enclosure: NEMA Type 4X / IP66
• Typical Application: Oil-filled transformer online dissolved-gas monitoring
• Stock Status: New Surplus / Fully Tested Refurbished subject to availability

Module 3: Commercial-Technical Deep Dive

A transformer gas-monitoring system can remain physically installed while losing its local controller interface, alarm contacts, or supervisory communications. The GE H201Ci-1 Hydran 201i is the one-channel remote controller designed for a single Hydran 201Ti Intelligent Transmitter. GE documentation identifies the controller as providing the user interface, gas-level display, alarm contacts, and communications functions. The controller works with the 201Ti to monitor dissolved combustible gases in transformer insulating oil, with a documented measurement range of 0–2000 ppm volume/volume H₂ equivalent and accuracy of ±10% of reading ±25 ppm.

The useful field specifications are concrete. The H201Ci-1 provides an isolated 4–20 mA output scaled to 0–2000 ppm, three Type-C alarm relays for Gas High, Gas High-High, and Fail conditions, and an isolated RS-485 supervisory link. GE documentation also identifies a standard RS-232 or USB computer interface for local communication. The controller is housed in a weatherproof enclosure suitable for outdoor installation, with NEMA Type 4X / IP66 protection documented for the Hydran system. One important limitation: the H201Ci-1 is a controller for the 201Ti transmitter; it is not the gas sensor itself. A controller replacement therefore requires verification of the existing transmitter, supervisory link, alarm configuration, and analog scaling before commissioning.

Module 4: Compatibility & Installation Traps

Migration/Compatibility

• System: GE Hydran 201i
• Controller: H201Ci-1
• Primary Transmitter: Hydran 201Ti
• Architecture: One-channel controller
• Measurement: 0–2000 ppm H₂ equivalent
• Analog Output: Isolated 4–20 mA
• Alarm Functions: Gas High, Gas High-High, System/Fail
• Supervisory Communication: Isolated RS-485
• Local Communication: RS-232 / USB
• Replacement Type: Exact H201Ci-1 replacement strongly preferred
• Configuration: Preserve alarm thresholds, relay modes, communication parameters, analog scaling, and transmitter communication settings
• Logic Rewrite: Not applicable to PLC logic; controller parameters and field integration require verification
• Enclosure: NEMA Type 4X / IP66-class weatherproof construction documented for the Hydran controller/system

⚠️ Field Traps (Watch Out)

1. Do not confuse H201Ci-1 with H201Ci-C.
The H201Ci-1 is the one-channel controller and includes alarm relays. GE documentation states that the H201Ci-C does not have alarm relays and can handle multiple transmitters. They are different system architectures, not interchangeable controller labels.

2. Verify the 201Ti supervisory link before condemning the controller.
The H201Ci-1 communicates with the valve-mounted H201Ti through the supervisory link. A failed cable, incorrect polarity, or transmitter power problem can produce a communication failure that looks like a controller fault.

3. Preserve relay behavior, not just alarm thresholds.
The H201Ci-1 has three alarm relays. GE documents that the Fail/System relay is operated differently from the Gas High and Gas High-High relays, with the fail relay energized during normal operation for fail-safe behavior. Record the original relay-mode parameters before replacement.

4. Do not interchange analog-output specifications from the transmitter and controller.
The Hydran 201Ti and H201Ci-1 both have analog communication functions, but they are different devices. Confirm whether the plant SCADA cable terminates on the controller’s isolated 4–20 mA output or directly on another Hydran component before wiring.

Module 5: Quality Assurance SOP

Each available GE H201Ci-1 should undergo a documented controller-level inspection and functional test before shipment:

• OEM anti-counterfeit visual inspection: Verify GE/Hydran identification, complete H201Ci-1 model marking, enclosure labels, terminal markings, display/keypad arrangement, and manufacturing information.
• Model verification: Confirm the unit is specifically H201Ci-1, not H201Ti, H201Ci-4, or H201Ci-C.
• Enclosure inspection: Check the weatherproof enclosure, door seal, cable entries, mounting hardware, display window, and corrosion protection.
• PCB condition inspection: Inspect accessible electronics for corrosion, contamination, thermal damage, cracked components, and evidence of prior repair.
• Power-input verification: Apply the approved AC supply within the documented controller range and verify correct startup.
• Power-on self-test (POST): Confirm display initialization, diagnostic indicators, keypad operation, and controller startup sequence.
• 201Ti communication handshake verification: Connect a compatible Hydran 201Ti test transmitter or approved simulator and verify the supervisory-link communication.
• Gas-value simulation: Apply controlled test data corresponding to representative gas concentrations and confirm display scaling.
• Analog-output test: Verify the isolated 4–20 mA output across low, mid-scale, and full-scale test points corresponding to the 0–2000 ppm range.
• Alarm relay test: Exercise Gas High, Gas High-High, and Fail/System relay functions individually.
• Fail-safe verification: Confirm the System/Fail relay returns to the expected safe state when controller fault or communication-loss conditions are simulated.
• RS-485 test: Establish a controlled supervisory/network connection and verify communication with approved Hydran test equipment.
• RS-232 / USB test: Verify the local computer interface with the appropriate service connection.
• Alarm-indicator test: Confirm both local alarm indicators respond correctly to controlled Gas High and Gas High-High conditions.
• Configuration verification: Record alarm thresholds, relay modes, communication parameters, and analog-output settings before final packing.
• Environmental inspection: Confirm enclosure integrity and check that seals and cable entries are suitable for the intended outdoor installation.
• Final QC record: Record exact model, firmware/configuration information where available, analog measurements, relay test results, communication results, and technician sign-off.
• ESD-safe packaging: Protect the controller electronics and enclosure against moisture, impact, contamination, and electrostatic discharge.

The most valuable bench-test evidence is a combination of 201Ti communication, simulated gas concentration, analog-output measurement, and relay-state verification. A display that powers up only proves that the controller has electrical power; it does not prove that the transformer-monitoring chain is functional.

Module 6: CRO-Driven Buyer FAQ

What is the GE H201Ci-1?

The GE Hydran H201Ci-1 is a one-channel remote controller for one Hydran 201Ti Intelligent Transmitter. It provides local gas-level display, alarm indication, alarm contacts, analog output, and supervisory communications.

What does the H201Ci-1 measure?

The Hydran 201i system measures combustible gases in transformer insulating oil using an H₂-equivalent concentration scale. The documented range is 0–2000 ppm, with accuracy of approximately ±10% of reading ±25 ppm over that range.

What alarm outputs are available?

The H201Ci-1 provides three alarm relays: Gas High, Gas High-High, and Fail/System. Each relay uses normally open, normally closed, and common contacts.

Is H201Ci-1 the same as the Hydran 201Ti transmitter?

No. The 201Ti is the intelligent transmitter installed at the transformer, while H201Ci-1 is the remote controller/interface. Replacing the controller does not replace the sensor/transmitter assembly.

Can the H201Ci-1 be replaced while powered?

Do not assume live replacement. The controller has AC supply, alarm contacts, analog circuitry, and communication wiring. GE installation procedures should be followed, with the applicable alarm circuits and controller power safely isolated before replacement.

What should I verify before ordering H201Ci-1?

Confirm the complete H201Ci-1 model, the connected Hydran 201Ti transmitter, power-supply arrangement, analog-output wiring, RS-485 supervisory link, alarm relay assignments, and existing alarm thresholds. Preserving those settings makes the replacement much less likely to create a secondary commissioning problem.

What warranty and technical support should I expect?

Warranty duration should be stated for the exact unit condition and test status on the quotation. Technical support should cover model verification, H201Ti compatibility, alarm-relay configuration, 4–20 mA verification, communication checks, and documented bench-test results. Transformer protection studies, dissolved-gas interpretation, and substation commissioning should be treated separately unless explicitly included.
