GE Hydran M2-X | Transformer Monitor New Surplus Stock

Description

• Brand: GE
• Full Model Number: Hydran M2-X
• System/Series Family: Hydran M2-X Transformer Gas Monitoring
• Core Function: Online monitoring of hydrogen and moisture in transformer insulating oil
• Top 3 Hardcore Specs: Hydrogen measurement | Moisture-in-oil measurement | Continuous online transformer monitoring
• Measured Gas: Hydrogen (H₂)
• Additional Measurement: Moisture in oil
• Monitoring Type: Online / continuous
• Stock Status: New surplus, factory sealed, or fully tested refurbished subject to exact inventory confirmation

The GE Hydran M2-X is an online transformer monitoring instrument designed to measure dissolved hydrogen and moisture in transformer oil. GE’s Hydran technology is intended to provide early indication of developing transformer conditions without requiring routine laboratory sampling for every measurement.

Module 3: Technical Product Introduction

A transformer fault can develop between scheduled oil-sampling intervals, which is why continuous dissolved-gas monitoring has practical value on critical transformers. The GE Hydran M2-X monitors hydrogen dissolved in transformer oil and provides continuous information that can be used to identify changes in transformer condition. It also incorporates moisture measurement, giving maintenance personnel two important indicators from the same monitoring installation.

The engineering value is the measurement trend rather than a single alarm threshold. Hydrogen concentration can change as electrical or thermal activity develops inside the transformer, while moisture affects insulation performance and dielectric strength. The Hydran M2-X is designed for online monitoring so operators can observe changes without waiting for the next manual oil sample. —Field interpretation still matters: a rising hydrogen trend should be investigated alongside transformer load, temperature, maintenance history, and other diagnostic evidence rather than treated as proof of one specific fault.

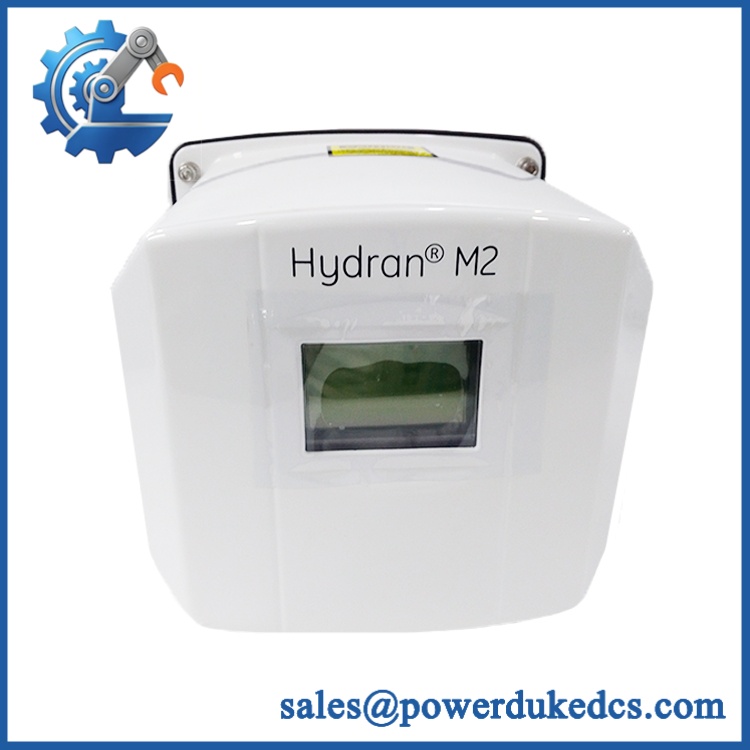

GE Hydran M2-X

Module 4: Application Scenarios & Field Realities

• On high-value power transformers, continuous hydrogen monitoring can provide an additional condition-monitoring layer between laboratory oil analyses. The useful signal is often the trend over time; establish a site-specific baseline after commissioning rather than relying on one universal alarm value.
• For transformers at remote substations, an online monitor reduces dependence on frequent physical access for every condition check. Communications and alarm integration should be tested carefully because a sensor that measures correctly but cannot report its status to the control center has limited operational value.
• During transformer commissioning or post-maintenance monitoring, the Hydran M2-X can help establish a new baseline after oil processing, inspection, or other maintenance work. Record the initial hydrogen and moisture values and correlate them with the transformer’s operating temperature and load.
• Where moisture is a maintenance concern, monitoring moisture in oil alongside hydrogen gives the engineer another trend to evaluate. Moisture readings should be interpreted with oil temperature in mind because moisture solubility and measurement behavior change with operating conditions.

Module 5: Migration, Compatibility & Installation Traps

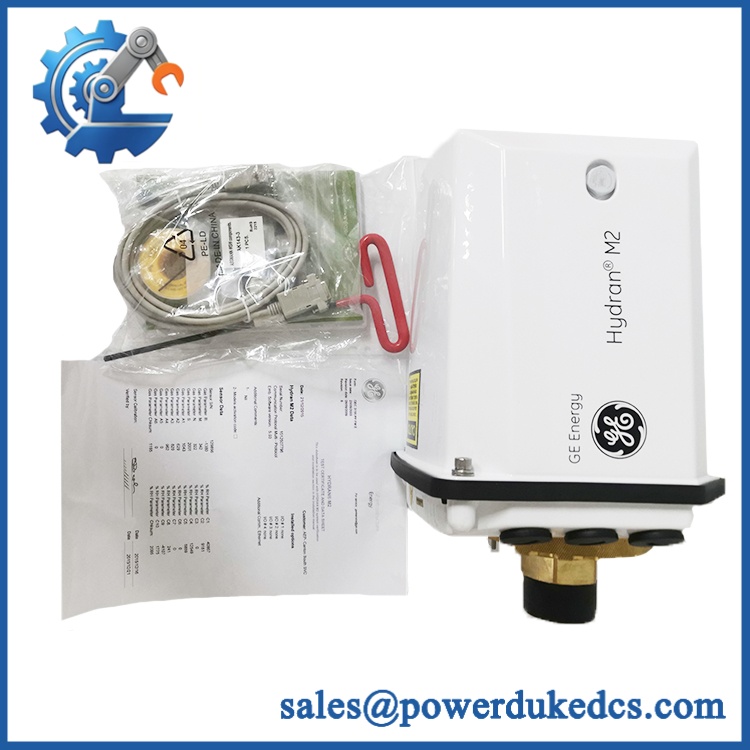

GE Hydran M2-X

Replacement Matrix

Field Traps — Watch Out

1. Do not treat Hydran models as interchangeable: The Hydran product family includes different generations and configurations. A Hydran M2-X should be matched using the complete equipment identification and installed sensor arrangement rather than assuming compatibility from the Hydran name alone.

2. Oil connection and sensor installation: The measurement assembly is part of the monitoring system. Verify the transformer oil connection, isolation arrangement, tubing or mounting hardware, and installation orientation before commissioning. Incorrect installation can create leakage or produce unreliable measurement conditions.

3. Temperature affects moisture interpretation: Moisture-in-oil values are not independent of transformer temperature. Record the relevant oil temperature when evaluating readings and compare measurements against historical trends under comparable operating conditions.

4. Alarm settings require engineering review: Do not copy generic hydrogen alarm thresholds directly into a replacement monitor. Alarm levels should be coordinated with the transformer type, historical baseline, utility maintenance practice, and other diagnostic methods.

Module 6: Quality Assurance SOP

Before shipment, each GE Hydran M2-X should undergo a documented inspection sequence appropriate to the available transformer-monitoring test equipment.

• Step 1 — Part-number verification: Record Hydran M2-X, complete model/order information, serial number, hardware revision, sensor identification, and visible GE markings.
• Step 2 — OEM anti-counterfeit visual inspection: Examine GE labels, product identification, enclosure markings, connectors, sensor interfaces, terminal blocks, fasteners, and manufacturing identifiers. Photograph the nameplate and serial information.
• Step 3 — Physical condition inspection: Check the enclosure, display, connectors, sensor assembly, tubing or oil interface components, mounting points, and exposed electronics for corrosion, contamination, cracks, impact damage, or evidence of previous repair.
• Step 4 — Power-supply verification: Confirm the exact electrical supply requirements from the unit’s hardware documentation before energizing the monitor. Verify polarity and protective provisions where applicable.
• Step 5 — Power-on self-test (POST): Energize the Hydran M2-X under controlled conditions and record startup behavior, display/status indicators, diagnostic messages, and initialization results.
• Step 6 — Hydrogen measurement verification: Where an appropriate calibrated test setup is available, apply a representative hydrogen concentration and verify that the monitor responds within the specified measurement tolerance.
• Step 7 — Moisture measurement verification: Test the moisture-measurement channel using the appropriate calibrated reference or simulator. Record the measured value and test conditions.
• Step 8 — Communication handshake verification: Verify the applicable local or remote communication interface and confirm that measured values, alarms, and diagnostic status can be transmitted correctly.
• Step 9 — Alarm and status verification: Exercise representative alarm conditions where the test system permits. Confirm that local status indications and configured outputs respond as expected.
• Step 10 — Final photographic record: Photograph the complete monitor, model label, serial number, sensor connections, enclosure condition, and final packaging.

QA release criterion: A successful power-up alone does not establish gas-measurement accuracy. A fully tested Hydran M2-X should have documented measurement, communication, diagnostic, and applicable alarm-function checks. If calibrated gas or moisture simulation is unavailable, that limitation should be stated explicitly rather than presenting the unit as fully calibrated.
