Description
- GE IC800SSI228RD2 | ESD Packed Control Hardware
Unboxing & Physical Snapshot
- Brand & Model: GE IC800SSI228RD2
- Product Family: GE PACSystems RX3i / VersaMotion industrial control component family (verify exact system compatibility before installation)
- Approximate Physical Dimensions: Approximately 1.6 × 5.1 × 5.0 in (40 × 130 × 127 mm), depending on mounting accessories and terminal configuration.
- Estimated Shipping Weight: Approximately 1.0-1.5 lb (0.45-0.7 kg) including protective packaging.
- What’s in the Box:
- GE IC800SSI228RD2 module
- Original ESD shielding packaging when supplied as factory stock
- Mounting hardware where included by OEM configuration
- Terminal accessories if supplied with the ordered assembly
- Product identification labels and documentation when available
Product Introduction
Industrial motion systems depend on precise hardware identification because servo-related modules directly affect machine synchronization, feedback integrity, and production availability. The GE IC800SSI228RD2 is designed for integration into industrial automation environments where controller compatibility, firmware alignment, and documented spare-part history are essential (especially during maintenance audits after equipment upgrades).
This module installs as part of a larger control architecture rather than functioning as a standalone replacement board. The mounting interface, terminal connections, and enclosure arrangement must match the approved system design. Before installation, inspect the connector surfaces, terminal blocks, and retaining features for contamination or mechanical damage.
Core Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | GE |
| Model Number | IC800SSI228RD2 |
| Product Type | Industrial Motion / Servo Interface Module |
| Automation Platform | GE Industrial Control Systems |
| Mounting Method | Panel or system-specific mounting arrangement |
| Communication Interface | Application-dependent industrial motion interface |
| Input/Output Function | Servo-related control and feedback interface |
| Power Supply | System-provided industrial control power |
| Power Consumption | Application-dependent; verify OEM electrical specifications |
| Heat Dissipation | Dependent on operating load and cabinet airflow |
| Cooling Method | Natural convection cabinet cooling |
| Firmware | Version dependent; verify before commissioning |
| Operating Temperature | Refer to OEM environmental specification |
| Storage Temperature | Refer to OEM storage specification |
| Protection Consideration | Industrial enclosure installation required |

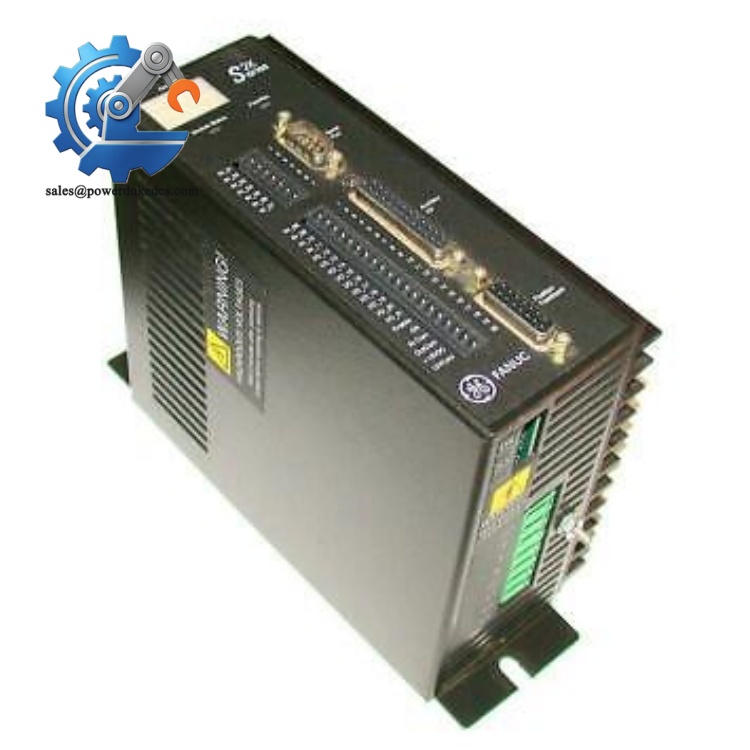

GE IC800SSI228RD2
Global Compliance & Industry Certifications
Expected regulatory approvals for this category of industrial automation hardware may include:
- CE Mark for applicable European electrical safety and EMC requirements.
- UL/cUL Recognition or Listing for industrial control installations in North America.
- ATEX/IECEx compatibility only when the module is incorporated into a certified hazardous-area system.
- Marine approvals such as DNV GL may apply for offshore or vessel automation installations where the complete control system is certified.
A UL/cUL certification provides documented evaluation of electrical safety requirements, including insulation, temperature limits, and component suitability within approved industrial assemblies.
Verify specific lot certifications with OEM.
Long-Term Storage & Asset Preservation Guide
- Maintain the module inside its original anti-static (ESD) shielding bag until deployment. Exposure to uncontrolled environments can allow moisture and airborne contaminants to affect connector contacts and board surfaces.
- Store between 40-60% relative humidity whenever possible. Excess moisture may accelerate corrosion on metallic contacts, while extremely dry conditions increase electrostatic discharge risk.
- Perform periodic visual inspections of the enclosure, connectors, and labels. Do not place heavy inventory items on top of the module carton because pressure can deform terminal components or mounting clips over long storage periods (a common warehouse handling issue).
Physical Installation Prerequisites
- Confirm the target controller platform and hardware revision before inserting the module.
- Install inside a properly grounded industrial cabinet with controlled airflow.
- Maintain approximately 50 mm clearance above and below adjacent rack components where required for convection cooling.
- Ensure the cabinet grounding system connects properly to protective earth.
- Secure mounting screws or retaining mechanisms to prevent vibration-related connector loosening.
- Keep high-current motor wiring separated from sensitive signal wiring according to the cabinet design requirements.
Buyer’s FAQ (Logistics & Compliance Focus)
Q: What HS Tariff Code should be used when exporting the GE IC800SSI228RD2?
A: Industrial automation modules are commonly reviewed under HS classifications for electrical control equipment, often associated with HS 8537. The final tariff classification depends on the module function, destination country rules, and customs interpretation.
Q: Why does Country of Origin (COO) matter when purchasing this spare?
A: COO affects customs declarations, import duties, and some regulated procurement programs. Maintain the original OEM label, packing documentation, and supplier traceability records for compliance reviews.
Q: Should this module be shipped with additional insurance coverage?
A: Yes. Servo and motion-control hardware should normally be insured according to replacement value because internal PCB damage may not be visible after transit. Use rigid packaging with ESD protection and shock protection.
Q: Does the arrive with the newest firmware installed?
A: Firmware availability depends on manufacturing date and inventory history. Factory-stock units may contain the production revision available at assembly. Confirm firmware compatibility with the installed controller platform before startup.
