GE IS200EPMCH1 | Mark VI Exciter Power Control Board

Description

• Brand: GE / General Electric
• Full Model Number: IS200EPMCH1
• System/Series Family: GE Mark VI / IS200 Exciter Control
• Core Function: Exciter power control and interface board within the Mark VI control architecture
• Top 3 Hardcore Specs: Mark VI exciter application; IS200 board assembly; H1 hardware revision
• Board Type: Exciter power management / interface board
• Architecture: GE IS200-series control board
• Installation: Mark VI control cabinet
• Stock Status: New Surplus / Fully Tested Refurbished — verify exact condition and test evidence before shipment

The IS200EPMCH1 is identified in industrial automation references as an IS200-series board associated with GE Mark VI exciter control equipment. Because published specifications for this legacy board are limited and can vary by source, the exact application should be confirmed against the customer’s cabinet drawing and board labeling before substitution.

Module 3: Commercial-Technical Deep Dive

Exciter-control failures are difficult to troubleshoot because the symptom may appear as a generator excitation problem while the actual fault sits in the control interface hardware. The GE IS200EPMCH1 belongs to the IS200 board family used in the Mark VI control architecture and is associated with exciter power/control functions. In an installed GE system, the board should therefore be identified by the complete part number before replacement; similar-looking IS200 boards are not automatically interchangeable. The H1 suffix is part of the board identification and should be matched during procurement.

The commercial advantage is straightforward: keeping the exact spare reduces the need to redesign a legacy excitation-control path when the installed board fails. That matters during forced outages, where a compatible replacement can preserve the existing cabinet wiring and control topology. The limitation is important, though: available public references do not establish a universal plug-in compatibility matrix for every IS200EPMCH1 installation. Confirm the associated Mark VI rack, firmware/application configuration, terminal wiring, and board revision before dispatch. A correct part number is the starting point; cabinet-level compatibility is the final check.

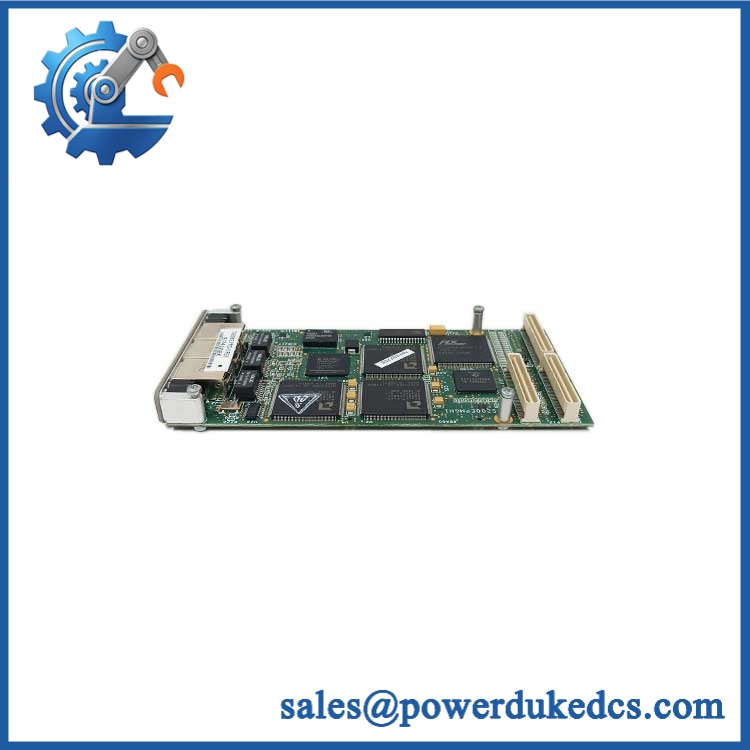

GE IS200EPMCH1

Module 4: Compatibility & Installation Traps

Migration/Compatibility

For a Mark VI installation already specified for IS200EPMCH1, the preferred replacement strategy is a like-for-like board exchange, provided the board revision and surrounding hardware configuration match. This is not a generic exciter controller that can be substituted solely on the basis of electrical function.

A firmware flash or logic rewrite should not be assumed from the board number alone. The requirement depends on the host Mark VI application, the controller configuration, and how the original board was commissioned. Record the original board revision, cable positions, terminal assignments, and applicable software/configuration information before removal.

⚠️ Field Traps (Watch Out)

• Board identification error: GE boards can have similar physical construction but different functions and connector assignments. Match the complete IS200EPMCH1 identifier and visible revision markings before installation; do not substitute another EPM or similarly named board without documented compatibility.
• Wiring and connector position: Photograph every connector and terminal location before removing the failed board. A connector placed on a visually similar header can create an immediate commissioning fault or, depending on the circuit, an electrical hazard.
• ESD exposure: Handle the board only under controlled ESD conditions. The processor, interface circuitry, and connector contacts can be damaged by improper handling even when the PCB shows no visible defect.

Module 5: Quality Assurance SOP

For surplus and legacy GE Mark VI inventory, the pre-shipment process should include documented physical and functional checks:

1. OEM anti-counterfeit visual inspection — verify GE markings, board identification, revision code, connector arrangement, PCB layout, component population, and evidence of unauthorized rework.
2. Part-number reconciliation — photograph and record the complete identification and all visible secondary markings.
3. PCB condition inspection — examine connectors, terminal interfaces, solder joints, capacitors, mounting points, PCB surfaces, and protective coatings for corrosion, contamination, cracks, or mechanical damage.
4. Power-on self-test (POST) — where the approved test fixture permits energization, verify expected startup behavior and inspect all available diagnostic/status indications for abnormal conditions.
5. Power and signal verification — measure applicable board supply rails and verify expected signal paths against the authorized test configuration rather than using an improvised load.
6. Communication/interface handshake verification — test applicable control interfaces with a representative Mark VI test environment where supported by the board’s installed architecture.
7. Configuration comparison — verify jumpers, switches, and connector configuration against the original board or approved installation documentation.
8. Stability observation — operate the board long enough to identify intermittent faults, abnormal temperature rise, resets, or unstable signal behavior.
9. Final QC release — retain identification photographs, inspection results, test observations, and packaging records with the shipment file.

A visual inspection alone is not sufficient for an exciter-control spare. The meaningful test result is whether the board behaves correctly in the intended Mark VI test configuration.

Module 6: CRO-Driven Buyer FAQ

1. Is GE an obsolete board?

The family belongs to GE’s legacy Mark VI control architecture, so sourcing is primarily a spare-parts and installed-base maintenance issue rather than a new-system procurement decision. Condition and authenticity should be verified carefully because inventory can include unused surplus, previously installed boards, and repaired units.

2. Is a drop-in replacement?

It can be a direct hardware replacement when the existing Mark VI documentation specifies the same assembly and matching revision. Do not assume that another -series exciter board is interchangeable simply because its physical dimensions appear similar.

3. Can be hot-swapped?

Do not assume hot-swap capability. Excitation-control hardware can be connected to energized circuits with hazardous voltage and stored energy. Follow the site’s electrical isolation, lockout/tagout, and GE-specific maintenance procedure unless the applicable documentation explicitly authorizes energized replacement.

4. Does the replacement require firmware or software loading?

Not necessarily at the board level, but the complete Mark VI control system may require restoration of the correct application configuration after hardware replacement. Preserve the original hardware identification and system configuration before removing the failed board, then verify commissioning requirements against the installed control system.

5. What warranty and technical support should I expect?

The quotation should clearly state the unit condition—new surplus, unused, or tested refurbished—and the applicable warranty period. Technical support should cover part-number verification, compatibility review, installation documentation, and available test evidence. Site-specific excitation tuning, application modifications, and generator commissioning are separate engineering activities.
