- GE IS200TCSAS1ACB | Industrial Safety Output Assembly
2. Unboxing & Physical Snapshot
- Model & Brand: GE IS200TCSAS1ACB
- Product Type: GE Mark VI / Mark VIe TCSA Turbine Control Signal Module used within GE Speedtronic turbine control architectures. The module provides signal interface functions for turbine protection and control applications.
- Approximate Physical Dimensions (W × H × D):
- Approximately 90 × 125 × 145 mm
- Estimated Shipping Weight:
- Module weight: approximately 0.6 kg
- Typical packaged shipping weight: 1.0–1.3 kg
- What’s in the Box:

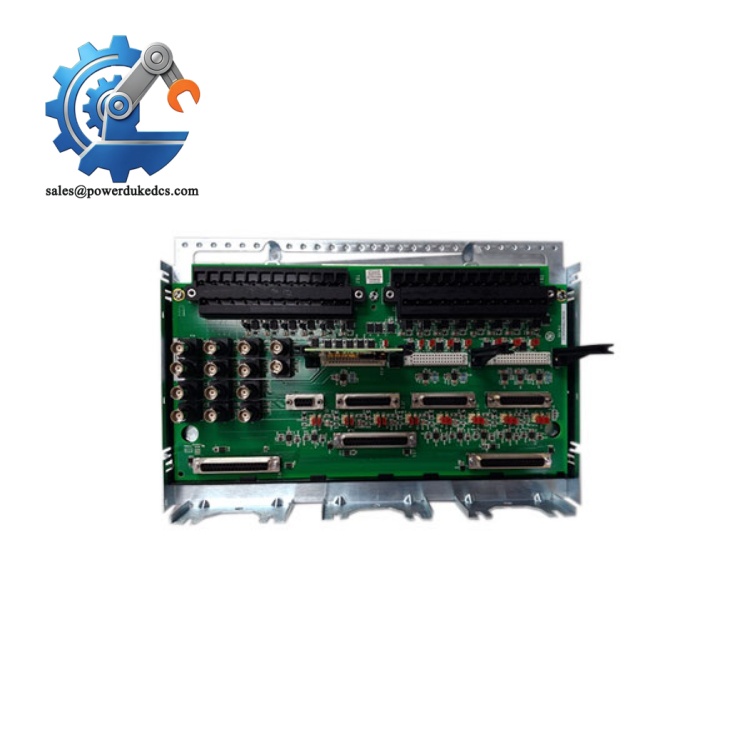

- GE IS200TCSAS1ACB circuit board assembly
- Front identification label
- Board connectors/interface points
- Anti-static (ESD) shielding bag
- Protective foam packaging
- Documentation when supplied
3. Product Introduction
The GE IS200TCSAS1ACB is installed within the Mark VI turbine control cabinet where critical turbine signals must be exchanged between field interfaces and the control architecture. The board belongs to the IS200 family of GE Speedtronic control hardware and is designed for controlled rack environments where signal integrity and hardware compatibility are mandatory. (This is especially important for long-running turbine installations where validated spare configurations are maintained for decades.)
Treat this assembly as a controlled safety-related spare. Do not replace it based only on the IS200TCSAS1 identifier. The complete suffix matters. Verify hardware revision, coating designation, connector condition, and application records before installation. Inspect the PCB surface, edge contacts, and mounting points carefully because contamination or mechanical damage may create intermittent control faults.
4. Core Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | General Electric (GE) |
| Model | IS200TCSAS1ACB |
| Product Family | Mark VI / Mark VIe Speedtronic |
| Module Type | Turbine Control Signal Module |
| Functional Identifier | TCSA |
| Board Revision | S1 |
| Conformal Coating | A designation |
| Hardware Revision | CB |
| Application | Turbine control signal processing |
| System Architecture | GE distributed turbine control system |
| Power Supply | 24 VDC nominal system supply |
| Power Consumption | Low-power control electronics |
| Heat Dissipation | Passive convection cooling |
| Processor | Embedded control logic hardware |
| Memory | Firmware-dependent onboard memory |
| Communication | System backplane/interface dependent |
| Mounting Method | GE control rack/module assembly |
| Operating Temperature | Approximately -40°C to +70°C (supplier specification reference) |
| Protection Level | IP20 cabinet installation environment |
| Weight | Approximately 0.6 kg |
GE IS200TCSAS1ACB
5. ? Global Compliance & Industry Certifications
Expected regulatory considerations for the GE IS200TCSAS1ACB include:
- CE Mark: Applicable when installed within a compliant GE Mark VI/Mark VIe control system assembly.
- UL/cUL Listed: May apply depending on the complete turbine control cabinet certification.
- ATEX / IECEx: Required only when the complete turbine control installation is approved for hazardous-area operation.
- Marine Approvals (DNV GL): Applicable only for specific marine turbine control projects.
For hazardous-area installations, certification status must be checked at the system level. A board-level replacement without matching approval documentation may create an audit discrepancy.
Maintain records for serial number, hardware revision, firmware revision, and installation history.
Verify specific lot certifications with OEM.
6. ? Long-Term Storage & Asset Preservation Guide
Store the IS200TCSAS1ACB inside the original anti-static (ESD) shielding bag. Keep connector pins covered and prevent direct contact with PCB surfaces.
Maintain storage humidity below 60% RH. Excess moisture can degrade conformal coating performance and accelerate oxidation on exposed metal contacts.
Inspect stored boards every 12–24 months. Check the PCB coating, connector edges, mounting holes, and identification label. Before installation, confirm that the replacement revision matches the active turbine control configuration.
7. Physical Installation Prerequisites
- Install the IS200TCSAS1ACB only in the approved GE Mark VI/Mark VIe cabinet configuration.
- Confirm rack slot position and board compatibility before insertion.
- Inspect mating connectors for contamination or bent pins.
- Secure retaining hardware correctly after installation.
- Maintain cabinet airflow paths for natural convection cooling.
- Leave approximately 50 mm clearance around ventilation areas where required by cabinet design.
- Verify protective earth grounding of the control enclosure.
- Separate signal wiring from high-voltage switching circuits.
- Perform diagnostic checks after module replacement.
8. Buyer’s FAQ (Logistics & Compliance Focus)
Q: What HS Tariff Code is commonly used for the GE IS200TCSAS1ACB?
A: Industrial turbine control boards are commonly reviewed under HS 8538 or related electrical control component classifications. The final tariff code depends on the declared function and destination-country customs rules.
Q: Does Country of Origin (COO) affect import clearance?
A: Yes. COO information supports customs declaration, duty assessment, and asset traceability. The origin listed on the invoice should match available product records and labeling.
Q: Is shipping insurance recommended for this board?
A: Yes. The IS200TCSAS1ACB contains sensitive electronic components and precision connectors. Shock, vibration, or electrostatic exposure during transport may cause failures that are not visible externally.
Q: Does the IS200TCSAS1ACB include the latest firmware pre-loaded?
A: Firmware availability depends on the board’s manufacturing history and service condition. Confirm firmware revision and compatibility with the existing Mark VI/Mark VIe configuration before commissioning.
