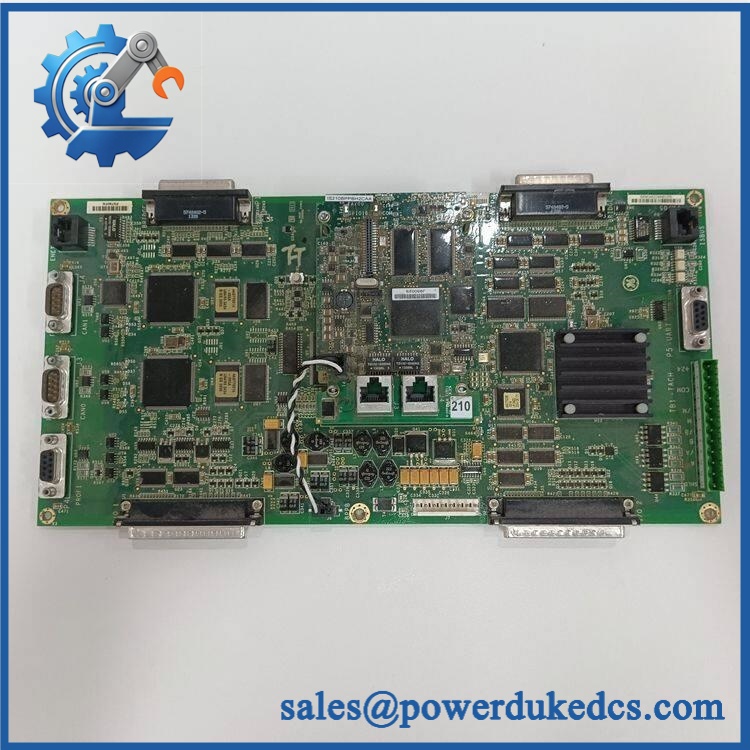

GE IS210MACCH2AGG | 1.5 MW Wind Turbine MACC Controller

Description

• Model & Brand: GE IS210MACCH2AGG / GE Energy
• Series: GE Energy Non-ESS wind converter platform
• Part Type: MACC — Multi Application Converter Controller PCB
• Associated GE Part Number: 104W4658P001
• Application: 1.5 MW wind turbine converter/control systems
• Physical Dimensions: Approx. 283 × 182 × 52 mm reported by secondary technical records; verify against the actual board before cabinet fit-up
• Estimated Net Weight: Approx. 0.59 kg, supplier-reported
• Estimated Shipping Weight: Approx. 0.9–1.3 kg packed, depending on ESD shielding and rigid cushioning
• Board Construction: Large-format multilayer PCB with processor, memory, communication, and converter-control circuitry
• What’s in the Box: IS210MACCH2AGG PCB; ESD shielding; rigid mechanical protection; mounting hardware and application documentation only when specifically included
• Controller Role: Converter control, closed-loop processing, and system communication
• Related Boards: AEBI Alternative Energy Bridge Interface; AEPS Alternative Energy Power Supply
• Installation: GE Energy wind-converter control cabinet
• Storage Priority: ESD control, humidity management, revision traceability, and protection of connectors

GE Energy parts references identify IS210MACCH2A as the Multi Application Converter Controller (MACC) with GE part number 104W4658P001, and the same family is listed for 1.5 MW wind-turbine converter systems.

Product Introduction

The MACC is positioned in the converter-control cabinet where closed-loop processing and system-level signal exchange meet the power-conversion hardware. GE’s parts documentation identifies the H2A family as a Multi Application Converter Controller, while current renewable-energy component records associate 104W4658P001 / IS210MACCH2A with GE 1.5 MW wind turbines. The board belongs to the GE Energy non-ESS converter architecture alongside AEBI and AEPS assemblies.

For warehouse control, the complete identifier IS210MACCH2AGG should remain intact. Public records contain several H2A variants, including AEF, AFG, AGG, AJH, and AKH, so shortening the requirement to “MACC H2A” can create an incorrect spare issue. The available technical record also gives approximately 283 × 182 × 52 mm and 0.59 kg for the underlying MACCH2A assembly, but those figures should be treated as procurement references rather than a substitute for the actual GE mechanical drawing.

Core Technical Specifications

The strongest component-identification evidence ties 104W4658P001 to IS210MACCH2A and identifies the component as the Multi Application Converter Controller for GE Energy renewable equipment.

GE IS210MACCH2AGG

🚨 Global Compliance & Industry Certifications

For IS210MACCH2AGG, certification claims should be tied to the complete GE Energy wind converter assembly and the exact hardware revision, not assigned to the PCB simply because it is used in certified equipment.

• CE Mark: May apply to the complete GE converter/turbine equipment. Do not claim independent CE conformity for this PCB without revision-specific GE documentation.
• UL/cUL: No reliable evidence was established for an independent UL/cUL listing of IS210MACCH2AGG.
• ATEX / IECEx: No revision-specific ATEX or IECEx approval was established for the individual MACC PCB.
• Class I, Division 2 / Zone 2: Do not infer hazardous-location suitability for the bare board. The complete cabinet and installed components determine the approved arrangement.
• Marine Approvals: No DNV, ABS, or Lloyd’s Register approval was established for this specific MACC board.
• EMC: Evaluate the entire converter cabinet because the MACC interfaces with power-conversion hardware and communication wiring.

Why this matters: A MACC controller sits close to high-energy converter equipment, where conducted and radiated noise can affect low-level control and communication signals. A replacement revision without the required system documentation can create both commissioning and audit problems.

Verify specific lot certifications with OEM.

🚨 Long-Term Storage & Asset Preservation Guide

Keep the board in a sealed ESD shielding bag. is a large active PCB with processor, memory, connectors, and converter-control circuitry. Avoid repeated handling of the edge connectors and do not rest the board directly on a conductive shelf.

Keep warehouse humidity below 60% RH where practical. No condensation should be permitted. For older wind-converter boards, connector oxidation and contamination can cause intermittent communications or processor faults after years of storage even when the PCB appears visually clean.

Record the complete revision string and GE part relationship. Inventory should show / IS210MACCH2A / 104W4658P001 where applicable, while the physical board’s visible identification should be photographed. Several MACC H2 variants exist, so this prevents a warehouse picker from issuing AEF, AFG, AJH, or AKH hardware as an AGG spare.

After long storage, allow the sealed package to reach room temperature before opening. Inspect connector contacts, cooling hardware, capacitors, solder joints, and any visible signs of corrosion before applying power.

Physical Installation Prerequisites

• Host System: Confirm the GE Energy 1.5 MW wind-converter architecture before installation.
• Board Variant: Match the complete marking and GE part number 104W4658P001 where applicable.
• Power Isolation: Fully isolate the converter cabinet and follow the approved lockout/tagout process before removing the controller.
• DC-Link Safety: Where the MACC cabinet interfaces with a DC-link/power-converter section, complete the manufacturer’s discharge and zero-energy verification before opening the enclosure.
• Connector Mapping: Photograph and label every communication/control connector before removal.
• Cooling: Maintain the original cabinet airflow path. Do not place cables or packing material over heatsinks or ventilation openings.
• Grounding: Preserve the converter cabinet protective-earth and signal-ground arrangement.
• Clearance: Provide adequate service space around the approximately 283 × 182 mm board envelope and its connected harnesses; the actual cabinet drawing takes precedence over a generic clearance rule.
• ESD: Use a grounded wrist strap and ESD-safe work surface.
• AEBI/AEPS Interface: Verify the associated AEBI bridge-interface and AEPS power-supply assemblies where present. These boards are part of the same GE Energy converter spare-parts family.
• Configuration: Back up the existing converter configuration before replacement where the installed service procedure permits it.
• Final Test: Confirm controller startup, converter communications, diagnostic status, and controlled operation before restoring the turbine to production.

Buyer’s FAQ

Q1. What HS Tariff Code should be used for ?
Do not assign a definitive HS code from “controller board” alone. This is a specialized converter-control PCB, and classification can vary by jurisdiction and by whether customs considers the board a part of electrical control equipment or power-conversion machinery. Have the broker review the technical function, invoice description, and destination tariff schedule before export.

Q2. What Country of Origin documentation should accompany the shipment?
Use the actual manufacturing origin supported by supplier or manufacturer records. Do not infer COO from the dispatch location. The compliance file should retain the commercial invoice, packing list, COO statement or certificate where applicable, exact part-number photograph, revision information, and serial/lot records.

Do not assume it can. This is an active converter-control board associated with a wind-turbine power-conversion system. Because removal can affect controller operation and may occur in proximity to high-energy converter hardware, use the approved GE maintenance procedure, electrical isolation, and DC-link zero-energy verification before removal.

Q4. Does a New Original include the latest firmware pre-loaded?
Do not assume it does. The MACC is an active controller, and current public records do not establish a single firmware version that applies to every H2A/AGG assembly. Require the hardware revision, firmware/software identification where available, and application compatibility confirmation before accepting surplus inventory. The GE part relationship 104W4658P001 → IS210MACCH2A should also be recorded.

Q5. What warranty and shipping controls should be required?
The quotation should identify , associated GE part number where applicable, hardware revision, physical condition, serial/lot information, warranty period, and test scope. Ship the board in ESD shielding with rigid connector protection, moisture control, and sufficient cushioning, then insure it against its documented replacement value.
