GE IS215AEPAH1CA | Wind Pitch Axis Control Module Mark VIe

Description

• Brand: GE
• Full Model Number: IS215AEPAH1CA + IS200AEPAH1A + IS210BPPH1A
• Lifecycle Status: Legacy / Obsolescence-Risk
• Core Function: Wind turbine pitch-axis control and associated Mark VIe control-board assembly
• Top 3 Technical Specs: Mark VIe Wind platform; AEPA Alternative Energy Pitch Axis function; IS200AEPAH1A base PCB with auxiliary-board provision
• Stock & Condition: New surplus / tested refurbished — verify exact three-board assembly and revision before PO

The IS215AEPAH1CA is identified as a GE Mark VIe Wind Wind Pitch Axis Control Module. The associated IS200AEPAH1A is an AEPA Alternative Energy Pitch Axis board, with an auxiliary board connection and eight analog inputs documented in available technical references.

Module 3: Obsolescence & Supply Chain Deep Dive

Wind-turbine maintenance teams face a particularly difficult sourcing problem when a pitch-axis control assembly fails: the component is tied to a specific Mark VIe Wind architecture, and substituting a visually similar PCB can create configuration or commissioning problems. The IS215AEPAH1CA serves as a Wind Pitch Axis Control Module, while IS200AEPAH1A belongs to the AEPA Alternative Energy Pitch Axis hardware family. The documented IS200 board uses conformal coating, has an auxiliary-board mounting arrangement, and provides eight analog inputs.

For TCO analysis, retaining the existing GE control architecture can be considerably less expensive than redesigning a complete pitch-control system. A correctly matched assembly may preserve existing cabinet wiring, I/O engineering, turbine software configuration, commissioning procedures, and maintenance documentation. That can avoid a larger engineering and outage project. The important qualification is configuration matching: IS215AEPAH1CA, IS200AEPAH1A, and IS210BPPH1A should be treated as a specific assembly combination, not as three universally interchangeable GE boards. Available references also identify revision-specific considerations on the IS215 assembly, making visual similarity an insufficient acceptance criterion.

Module 4: Compatibility & Replacement Matrix

Field Traps — Watch Out

Board Combination Mismatch: The purchase specification contains three distinct identifiers. Do not approve an order based solely on IS215AEPAH1CA. Confirm whether the installed assembly actually contains IS200AEPAH1A and IS210BPPH1A, and document the revision level of each board.

Revision and Auxiliary-Board Configuration: The uses an attached auxiliary-board arrangement and connects to its corresponding processor hardware through dedicated pin connectors. A replacement PCB with a different revision or physical configuration may not reproduce the installed assembly exactly.

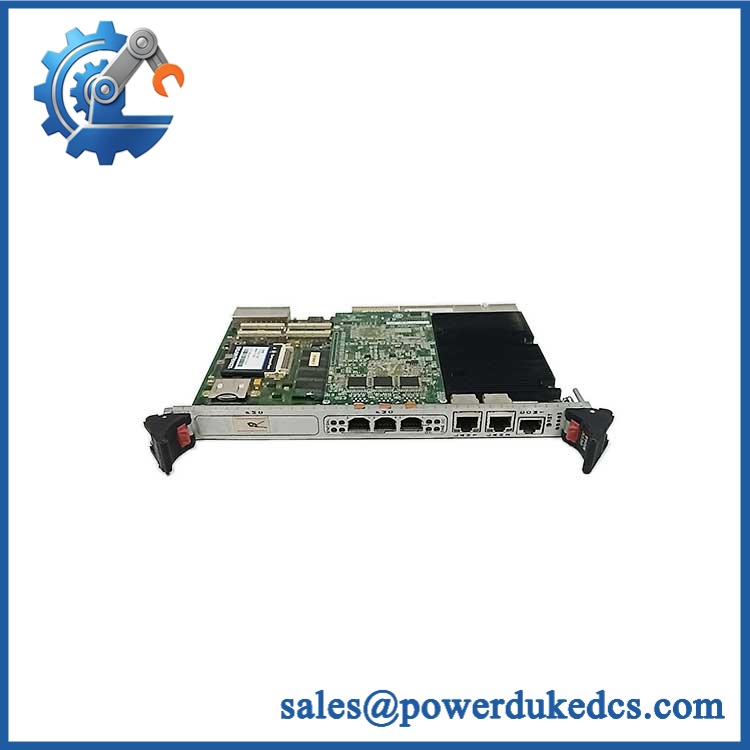

GE IS215AEPAH1CA

Module 5: Quality Assurance & Testing SOP

A three-board Mark VIe Wind assembly should receive component-level and system-level inspection before shipment.

1. Incoming inspection

• Record all three part numbers and individual serial/identification markings.
• Perform OEM anti-counterfeit visual inspection.
• Inspect PCBs, connectors, mounting hardware, standoffs, terminals, and auxiliary-board interfaces.
• Check for corrosion, contamination, cracked components, bent pins, damaged traces, or unauthorized rework.
• Verify conformal-coating condition on the where applicable.

2. Assembly verification

• Confirm IS215AEPAH1CA + + IS210BPPH1A as ordered.
• Record functional and hardware revision markings.
• Verify the auxiliary-board installation and connector engagement.
• Photograph the complete assembly and individual identification labels for traceability.

3. Power and diagnostic testing

• Install the assembly into an appropriate GE Mark VIe Wind test configuration.
• Apply controlled system power.
• Perform power-on self-test (POST) and inspect board status indications.
• Check for diagnostic faults, abnormal LED states, communication errors, or initialization failures.
• Verify that the host control system recognizes the expected hardware configuration.

4. I/O and functional testing

• Apply calibrated simulated analog signals to applicable AEPA inputs.
• Verify all required analog input channels respond within established test limits.
• Exercise applicable digital inputs and outputs.
• Perform I/O load testing on relevant control circuits.
• Verify communication between the pitch-axis control hardware and the host control architecture.
• Record measured values and fault responses.

5. Final QC

• Compare test results against the approved acceptance criteria.
• Record board revisions, serial numbers, and test date.
• Generate a unit-specific Test Report.
• Package each PCB using ESD protection and mechanical cushioning.
• Apply final QC identification before shipment.

Module 6: Procurement & Lifecycle FAQ

Is this complete GE assembly genuinely in stock, and what is the emergency-shipping cutoff?

Stock must be confirmed against the complete three-part-number combination, not merely one board number. Emergency dispatch depends on whether the assembly has already completed QC, payment clearance, warehouse processing, and the day’s courier cutoff.

How do you guarantee the condition and authenticity of obsolete or surplus boards?

The acceptance standard should include serial-number traceability, nameplate verification, PCB inspection, revision recording, connector inspection, powered testing, and a unit-specific test report. Actual photographs of the supplied boards should accompany the commercial confirmation.

Are firmware or revision compatibility issues a concern?

Yes. The engineering review should capture the existing Mark VIe Wind hardware configuration, firmware/application version, board revisions, I/O assignments, and cabinet wiring before the replacement is installed. The reference identifies revision information as a relevant part of the hardware specification.

Can I replace only the and reuse my existing and IS210BPPH1A?

Do not assume that is acceptable. The supplied specification indicates a three-part assembly. Before partial replacement, engineering should compare board revisions, connectors, auxiliary-board arrangement, and the installed configuration against the replacement documentation. The specifically uses an auxiliary-board interface and dedicated board-to-processor connections.

What warranty and return terms should procurement require?

The PO should identify all three part numbers, applicable revisions, serial numbers, tested condition, warranty duration, DOA criteria, and return procedure. For a turbine pitch-control component, acceptance should be based on functional testing rather than visual condition alone.
