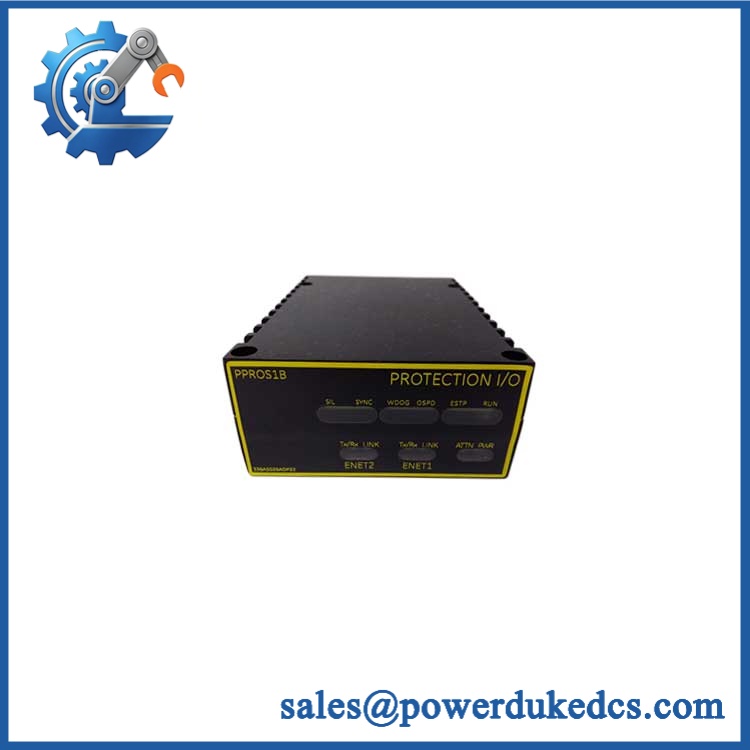

GE IS220PPROS1B | IEC 61508 Safety Protection I/O Pack

• Manufacturer: GE
• Model: IS220PPROS1B
• Series: Mark VIe / Mark VIeS
• Function: Backup turbine protection / emergency protection I/O pack
• Processor architecture: BPPC-based I/O pack
• Mounting: Directly mounted to compatible SPRO, TPROS, TPRO, or TREA terminal-board assemblies
• Communication: Dual Ethernet interfaces for Mark VIe IONet architecture
• Approx. physical envelope: about 122 × 82 × 60 mm; confirm against the actual revision and packing configuration before cabinet-layout work
• Estimated shipping weight: approximately 0.8 kg packed allowance; actual packed weight depends on accessories and export packaging
• Typical box contents: IS220PPROS1B module, protective ESD packaging, shock protection, and procurement documentation as applicable
• Critical receiving check: Confirm the complete catalog number, board revision, processor board identity, terminal-board compatibility, and safety-certificate markings before acceptance.

The physical dimensions and weight published by secondary sources are not sufficiently consistent to treat them as an OEM-controlled mechanical drawing. For replacement planning, the exact installed assembly should be measured before final enclosure or cable-routing decisions.

Product Introduction

Architecture Hook

The GE IS220PPROS1B is not a conventional process-I/O module. It belongs to the Mark VIe turbine protection architecture and provides an independent protection path for functions such as backup overspeed protection, generator synchronization checking, trip-board supervision, and watchdog monitoring of the primary control system. A typical architecture uses three PPRO I/O packs in a TMR configuration, with compatible protection and emergency-trip terminal boards.

Compliance Hook

For safety-instrumented applications, the PPROS1B has materially different procurement implications from a standard Mark VIe signal pack. GE documentation identifies the IS220PPROS1B as an IEC 61508-certified version intended for use in IEC 61511-certified safety loops, while current certification records also list the module under the Mark VIe IECEx and ATEX framework. The installed terminal-board and trip-board combination matters; certification cannot be inferred from the I/O pack alone.

The BPPC-based implementation also matters during modernization. GE-related technical material identifies the PPROS1B as functionally compatible with a BPPC processor board, with ControlST software-version requirements tied to that processor generation. A spare should therefore be checked against the site’s controller, firmware, and ControlST baseline rather than treated as a generic mechanical substitute.

Core Technical Specifications

The GE certification documentation specifies the PPROS1B electrical interface values and a −30°C to +65°C ambient range for the relevant certified configuration. The same certification family identifies the model as part of the Mark VIe hazardous-location platform.

GE IS220PPROS1B

🚨 Global Compliance & Industry Certifications

IEC 61508: The PPROS1B is documented as the safety-certified PPRO variant intended for safety-related turbine protection applications. An independent assessment identifies the IS220PPROS1B as a Type B element within the assessed protection architecture.

IEC 61511: The module is identified for use in IEC 61511-certified safety loops when used with the specified protection architecture and compatible boards. This does not make every possible field configuration automatically compliant.

ATEX: GE certification documentation lists under the Mark VIe ATEX certificate with hazardous-area protection methods including Ex nA IIC T4 Gc and Ex ec IIC T4 Gc, subject to the certified installation conditions.

IECEx: Current IECEx certification records include the under certificate IECEx UL 21.0067X, with the applicable protection markings and environmental limits defined by the certificate.

For procurement and audit purposes, the more important question is not simply whether the catalog number is certified. The entire installed combination—I/O pack, terminal board, trip board, enclosure, wiring method, temperature range, and hazardous-area installation method—must match the approved configuration.

Verify specific lot certifications with OEM.

🚨 Long-Term Storage & Asset Preservation Guide

1. Maintain ESD-controlled storage.
Keep the in its original or equivalent anti-static packaging. Do not allow exposed connector contacts or circuit-board surfaces to sit unprotected in a warehouse environment.

2. Control humidity and contamination.
Store in a clean, dry cabinet away from condensation, corrosive vapors, dust, and salt contamination. A practical warehouse target is below 60% RH, non-condensing, unless the site’s preservation specification requires tighter control.

3. Preserve configuration traceability.
Record the catalog number, board revision, serial number, processor-board identity, firmware level where accessible, and original terminal-board pairing. For a safety spare, configuration history is part of the asset value. Replacing the physical module without validating the software and certified architecture can create a latent compatibility problem.

Because the participates in protection functions, avoid treating shelf inventory as interchangeable generic electronics. The preservation record should remain attached to the physical asset throughout its storage life.

Physical Installation Prerequisites

The is designed for direct mounting to compatible protection terminal-board assemblies, including SPRO, TPROS, TPRO, and TREA variants identified in GE certification documentation.

Before installation:

• Confirm the exact terminal-board catalog number and protection architecture.
• Verify the DC supply is within the documented power-input requirements.
• Inspect connector condition and mating alignment before insertion.
• Maintain sufficient cabinet space for connector access, field wiring, ventilation, and service removal.
• Verify grounding and cabinet bonding according to the Mark VIe installation design.
• For TMR protection, confirm all three protection channels use the intended compatible hardware and wiring topology.
• Where hazardous-area certification is involved, verify the enclosure, cable entry, temperature range, segregation, and installation method against the applicable certificate.

The certification documents identify specific compatible terminal boards rather than treating the I/O pack as an isolated component. That distinction is important during both retrofit work and spare substitution.

Buyer’s FAQ

Q: What HS tariff code should be used for ?
A: A common classification starting point is 8538.90 for parts used principally with electrical control equipment, but the final HS code depends on the importing country’s tariff schedule, product characterization, and customs ruling practice. Trade compliance should review the actual commercial description before filing.

Q: What should appear on the Certificate of Origin?
A: The COO should identify the manufacturer as GE, the exact catalog number , and the declared country of origin supported by the supplier’s traceability records. Do not assume origin solely from the current seller’s location.

Q: Should shipping insurance be purchased for this module?
A: For international movement, particularly where the module is supplied as an operational safety spare, insurance is prudent. The commercial invoice, packing list, serial number, and condition evidence should be retained with the shipment file.

Q: Does the module arrive with firmware pre-loaded?
A: A supplied is normally treated as a configured industrial control component rather than an empty PCB. However, the actual firmware revision must be verified against the site’s BPPC/ControlST baseline before installation. GE documentation specifically identifies software-version requirements associated with the BPPC generation.

Asset-control note: For a turbine protection spare, preserve the exact identity of the I/O pack + processor revision + terminal-board compatibility + firmware baseline as one controlled replacement record. That prevents a physically correct module from being released to maintenance as an electrically or safety-incompatible substitute.
