GE IS220PSVOH1A | Mark VIe Servo Valve Output Pack

Description

• Model & Brand: GE General Electric IS220PSVOH1A

• Product Family: Mark VIe / Mark VIeS distributed I/O
• Part Type: PSVO Servo Valve Output I/O Pack
• Primary Function: Interfaces turbine servo-valve circuits with the Mark VIe control system, providing analog servo command and valve-position feedback functions.
• Physical Dimensions: Approximately 83 × 42 × 121 mm (W × H × D) for the standard Mark VIe I/O-pack enclosure; verify the physical housing before cabinet fit-up.
• Estimated Shipping Weight: Approximately 0.5 kg packed planning allowance; use the actual packed weight for freight and customs records.
• What’s in the Box: IS220PSVOH1A I/O pack, ESD shielding bag, connector protection, cushioning material, shipping carton, and available inspection/test documentation.
• Physical Details: Compact aluminum/metal I/O-pack housing with front diagnostic indicators and protected field/network connectors; inspect the connector latches and mounting hardware before installation.

Product Introduction

Turbine servo systems operate under a different maintenance standard from ordinary analog process loops. A servo-valve command can move a hydraulic actuator, fuel system, or steam-control mechanism, so an I/O fault needs to be separated carefully from a valve, transducer, hydraulic, or terminal-board problem. The GE IS220PSVOH1A is the PSVO Servo Valve Output I/O Pack used in Mark VIe distributed control architecture for this class of application.

The module handles the electronic interface between the controller and the servo-valve field circuit, including command and feedback signal paths as configured by the associated terminal hardware. GE’s PSVO architecture is built around 28 VDC control power, distributed I/O Ethernet communications, and dedicated servo-interface circuitry (the exact field function depends on the matching terminal board and system configuration). Do not treat PSVO as a generic analog-output pack.

Core Technical Specifications

The 28 VDC supply should be measured at the module connection point, not simply read from the cabinet power-supply nameplate. Cable resistance, terminal heating, and upstream distribution faults can reduce the voltage reaching an I/O pack.

For asset records, the matching terminal-board part number is essential. The PSVO pack should not be purchased or cross-referenced solely by channel count or physical appearance because the terminal assembly establishes the field connection and signal implementation.

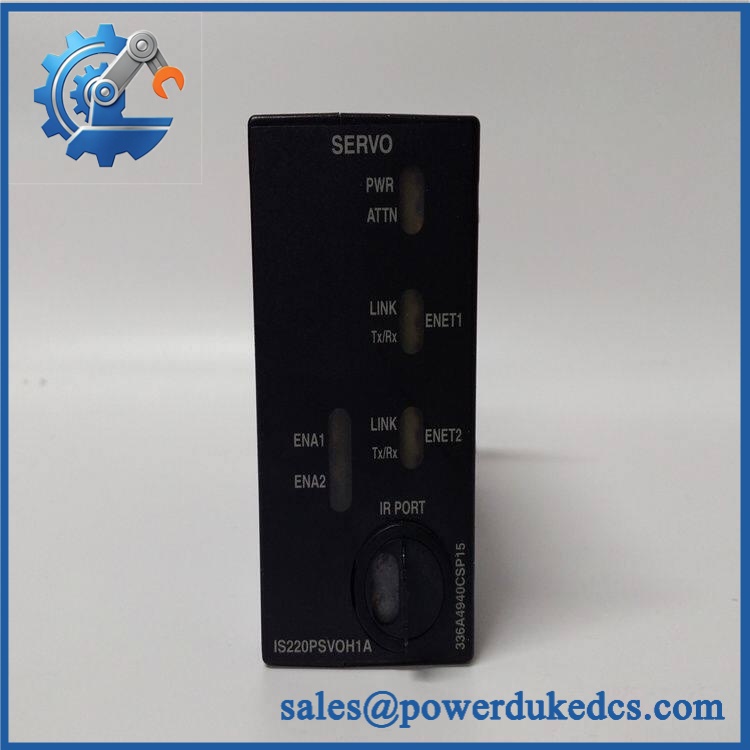

GE IS220PSVOH1A

🚨 Global Compliance & Industry Certifications

The IS220PSVOH1A belongs to the Mark VIe family used in industrial turbine-control environments, including installations where hazardous-area certification may be required. Applicable documentation should be checked for the exact hardware revision and complete terminal-board configuration.

Potential certification categories include:

• CE Mark: Relevant for applicable European-market equipment conformity.
• UL/cUL Listed or Recognized: Important for North American industrial-control acceptance, depending on the complete equipment configuration.
• ATEX/IECEx: Relevant where the equipment is installed in classified hazardous areas. The actual certified combination of I/O pack, terminal board, enclosure, power source, and installation conditions controls applicability.
• Marine approvals such as DNV: Project-specific. A general industrial certification should not be represented as marine type approval.

For servo-valve systems, certification is especially important because the I/O pack participates in circuitry that can affect a physical actuator. In hazardous areas, the relevant protection concept is intended to prevent the electrical equipment from becoming an unacceptable ignition source under the certified operating conditions.

Verify specific lot certifications with OEM.

🚨 Long-Term Storage & Asset Preservation Guide

Keep the IS220PSVOH1A in its original ESD shielding bag or an equivalent static-control package. Do not leave the exposed connectors uncovered on a warehouse shelf.

Maintain storage humidity below approximately 60% RH and avoid condensation. Servo-control electronics contain precision signal-conditioning components and connector interfaces that can suffer from oxidation or contamination after years in uncontrolled warehouse conditions.

Record the full model number, serial number, hardware revision, date code, firmware revision, and associated terminal-board identity before shelving. Photograph the front housing, identification label, and connectors (this physical record is useful when several similar Mark VIe I/O packs occupy the same inventory location).

For long-term strategic stock, inspect the enclosure and connectors periodically without repeatedly energizing the device. Before field deployment, perform a controlled electrical and functional test rather than using a simple power-on check as evidence of serviceability.

Physical Installation Prerequisites

Install the PSVO only with the approved terminal-board and Mark VIe distributed-I/O architecture. Confirm the exact terminal-board identity before removing the existing assembly.

Provide adequate cabinet ventilation and avoid obstructing the natural airflow path around the I/O-pack housing. A practical engineering allowance is at least 50 mm around major ventilation paths, unless the GE cabinet drawing requires another value.

Verify the 28 VDC control supply, grounding, shield termination, connector seating, and network connections before energization. Servo circuits can be sensitive to noise and wiring errors, so keep low-level feedback conductors separated from high-current switching wiring where the cabinet layout permits.

Before commissioning, confirm servo output scaling, feedback configuration, terminal-board identity, I/O network assignment, and controller application settings. A PSVO module that powers up correctly can still be functionally incorrect when the software configuration does not match the installed field circuit.

Buyer’s FAQ (Logistics & Compliance Focus)

What HS Tariff Code should be used for ?
The final Harmonized System classification depends on the importing country and the declared function of the industrial I/O pack. Have your customs broker or internal trade-compliance team validate the tariff heading instead of relying on an unverified supplier code.

Does Country of Origin matter for this part?
Yes. COO can affect duty treatment, origin marking, customs records, and preferential tariff eligibility. Use lot-specific origin documentation and keep it with the commercial invoice and packing list.

Should I insure the shipment?
For a critical turbine servo-control spare, insurance is advisable. Use ESD shielding, rigid cushioning, connector protection, and pre-shipment photographs so transit damage can be distinguished from pre-existing condition.

Does arrive with the latest firmware pre-loaded?
Do not assume it. Firmware and configuration are tied to the Mark VIe application and hardware revision; the correct practice is to verify the installed firmware revision against the target system rather than automatically requesting the newest available image.
