- GE IS220PVIBH1A | Original GE Vibration Monitoring Unit
2. Unboxing & Physical Snapshot
- Model & Brand: GE IS220PVIBH1A Vibration Monitor I/O Pack for the Mark VIe turbine control platform. This module acquires vibration and proximity sensor signals used for rotating equipment condition monitoring.
- Physical Dimensions (Approximate W × H × D): 41.9 × 82.6 × 121.4 mm (1.65 × 3.25 × 4.78 in.).
- Estimated Shipping Weight: Approximately 0.35–0.46 kg (0.77–1.0 lb) including protective packaging.
- What’s in the Box:

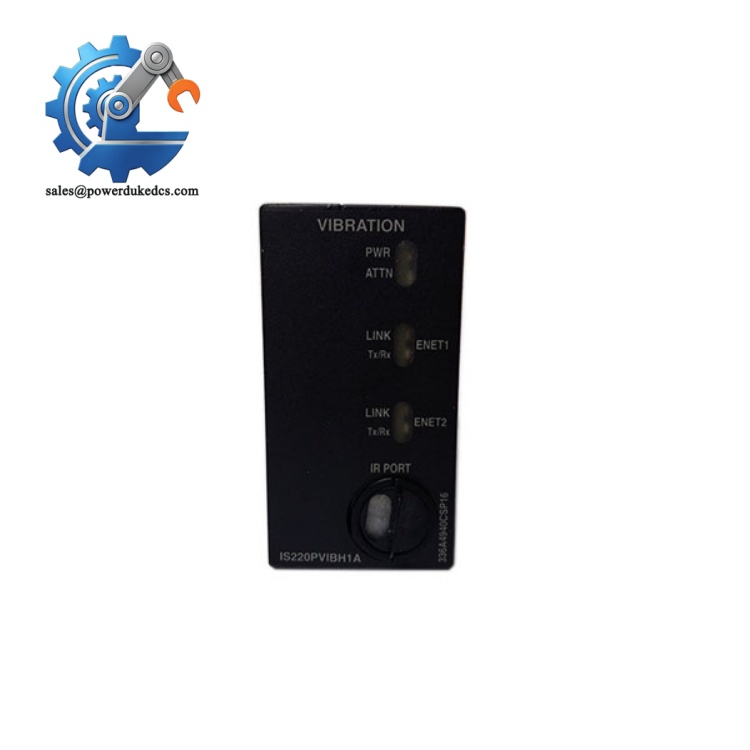

- GE IS220PVIBH1A Vibration Monitor I/O Pack
- Front status LED indicators
- Mounting hardware when supplied
- Anti-static (ESD) shielding bag
- Protective foam packaging
- Product identification label
- Documentation when included
3. Product Introduction
The IS220PVIBH1A is installed within the GE Mark VIe distributed I/O architecture and connects with compatible vibration terminal boards such as the IS200TVBAH2A. Correct terminal board matching is required before commissioning. The connector interface, retaining mechanism, and PCB assembly must remain free of contamination because vibration monitoring circuits depend on stable low-level sensor signals (especially around turbine enclosures where electrical noise and mechanical movement are common).
This module processes inputs from vibration-related field sensors, including proximity probes, accelerometers, and velocity sensors. It supports 13 sensor inputs with configurable acquisition frame rates and communicates through the Mark VIe I/O network. Inspect the terminal interface, conformal coating, and housing clips before installation. Stored spare modules should be handled carefully because damaged sensor inputs may not show obvious physical symptoms during receiving inspection.
4. Core Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | General Electric (GE) |
| Model Number | IS220PVIBH1A |
| Product Type | Vibration Monitor I/O Module |
| Platform | Mark VIe Turbine Control System |
| Functional Acronym | PVIB |
| Input Channels | 13 vibration/proximity sensor inputs |
| Supported Sensors | Proximity probes, accelerometers, Velomitors |
| Input Bandwidth | 1150 Hz |
| Signal Resolution | Minimum 14-bit resolution |
| ADC Architecture | Digital signal acquisition |
| Probe Power Supply | -24 VDC, 12 mA per transducer |
| Frame Rates | 3.125, 6.25, 12.5, 25, 50, 100 Hz |
| Common Mode Voltage | Minimum 5 VDC |
| Communication Interface | Dual Ethernet I/O network interface |
| Status Indicators | Four LEDs |
| Power Supply | 28 VDC nominal system bus input |
| Typical Power Consumption | Approximately 12 W |
| Maximum Power Consumption | Approximately 15 W |
| Heat Dissipation | Approximately equivalent to operating power loss |
| Mounting Method | Terminal board / Mark VIe I/O installation |
| Operating Temperature | -30°C to +65°C |
| Humidity | 5–95% RH, non-condensing |
| Dimensions | 82.6 × 41.9 × 121.4 mm |
| Weight | Approx. 0.35–0.46 kg |
GE IS220PVIBH1A
5. Global Compliance & Industry Certifications
Expected compliance considerations for the GE IS220PVIBH1A include:
- CE Mark compliance for applicable Mark VIe system installations
- UL/cUL industrial equipment compliance where applicable to the complete control system
- IEC 61010-1 considerations for measurement and control equipment safety
- ATEX/IECEx suitability when installed as part of an approved hazardous-area turbine control system
- Marine approvals such as DNV only when included in a certified marine package
The UL and IEC safety considerations matter because vibration inputs are connected to rotating machinery protection functions. Incorrect sensor wiring, unsuitable replacement modules, or improper installation can affect equipment monitoring accuracy.
Verify specific lot certifications with OEM.
6. Long-Term Storage & Asset Preservation Guide
Keep the IS220PVIBH1A inside its original anti-static (ESD) shielding bag until installation. The field connector interface and PCB edge contacts should not be exposed unnecessarily.
Maintain storage humidity below 60% RH. Moisture intrusion can affect connector plating and conformal coating performance over long storage periods.
Inspect the module before deployment. Check the LED window, retaining clips, connector pins, and conformal coating surface (a small coating crack near a sensor interface deserves attention before energization). Record serial number, hardware revision, and storage inspection date.
Avoid storing near vibration sources, chemical cabinets, or battery rooms. Contaminants can migrate into electronic assemblies over years.
7. Physical Installation Prerequisites
- Install only within the approved GE Mark VIe control architecture.
- Verify compatibility with the designated vibration terminal board.
- Confirm sensor wiring type before connection.
- Ensure cabinet grounding follows GE installation requirements.
- Maintain separation between sensor cables and high-current power conductors.
- Secure all connectors and mounting hardware.
- Provide cabinet airflow for natural convection cooling.
- Leave at least 50 mm clearance above and below the rack assembly where practical.
- Perform vibration input verification after installation.
8. Buyer’s FAQ (Logistics & Compliance Focus)
Q: What HS Tariff Code is commonly used for the GE IS220PVIBH1A?
A: Industrial I/O modules are commonly evaluated under HS 8537 classifications for electrical control equipment. Some suppliers reference 8537101190 depending on the declared configuration and destination requirements. Confirm the final tariff code with the importing customs authority.
Q: Does Country of Origin (COO) affect importing this vibration module?
A: Yes. COO affects customs clearance, duty treatment, supplier qualification records, and traceability for turbine control spare parts. Verify the origin listed on the product label, invoice, and packing documentation.
Q: Should shipping insurance be purchased for the IS220PVIBH1A?
A: Recommended. The module is lightweight, but vibration input electronics contain precision analog circuits. Shock, moisture, or connector damage during transportation can create commissioning delays.
Q: Does the IS220PVIBH1A include the latest firmware pre-loaded?
A: Firmware availability depends on the hardware revision and supply source. The module must be checked against the existing Mark VIe software baseline before installation. Do not assume a replacement unit carries the same revision as the installed system.
