- GE IS230PCAAH1A | Industrial Analog Input Interface Unit
2. Unboxing & Physical Snapshot
- Model & Brand: GE IS230PCAAH1A
- Product Type: Mark VIe Core Analog Module (PCAA) used in GE turbine control systems. The module handles a wide range of analog acquisition functions, including thermocouple inputs, 4–20 mA current loops, LVDT excitation/input, seismic inputs, pulse-rate inputs, and servo-related signals through compatible terminal boards.
- Approximate Physical Dimensions (W × H × D):
- Approximately 177 × 138 × 79 mm
- Estimated Shipping Weight:
- Module weight: approximately 0.45–1.2 kg depending on packaging configuration and supplier handling.
- Typical packaged shipping weight: approximately 1.5 kg
- What’s in the Box:
- GE IS230PCAAH1A Core Analog Module
- Front housing and terminal interface connection
- Identification label
- Anti-static (ESD) shielding bag
- Protective foam packaging
- Documentation when supplied
3. Product Introduction
The GE IS230PCAAH1A is installed inside the Mark VIe turbine control cabinet where high-value analog process signals must be acquired and transferred to the controller with consistent timing. The module works together with compatible terminal boards such as TCAS and TCAT assemblies, creating the signal path for turbine sensors and actuators (—which is critical for gas turbine monitoring, protection, and control functions).
This module is a controlled turbine automation spare, not a generic analog card replacement. Verify the terminal board type, controller architecture, hardware revision, and firmware compatibility before installation. Check the connector surfaces. Check the date code. Contaminated contacts or incorrect pairing with the terminal assembly can produce calibration errors or communication faults during startup.
4. Core Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | General Electric (GE) |
| Model | IS230PCAAH1A |
| Product Family | Mark VIe Turbine Control System |
| Module Type | Core Analog Module (PCAA) |
| Application | Gas turbine analog signal acquisition |
| Compatible Systems | Mark VIe / Mark VIeS architectures |
| Input Types | Thermocouple, 4–20 mA, LVDT, seismic, pulse inputs |
| Output Functions | Servo-related analog outputs through supported configuration |
| Channel Capacity | Configuration dependent |
| Analog Conversion | High-resolution ADC processing |
| Processor | Embedded Mark VIe I/O processor |
| Memory | Flash firmware memory and RAM |
| Communication Interface | Mark VIe Ethernet I/O network |
| Power Supply | Control system supplied DC power |
| Power Consumption | Approximately several watts depending on configuration |
| Heat Dissipation | Passive convection from electronics enclosure |
| Mounting Method | Mark VIe terminal board mounting assembly |
| Operating Temperature | Approximately -30°C to +65°C |
| Storage Environment | Dry indoor industrial storage |
| Dimensions | Approx. 177 × 138 × 79 mm |

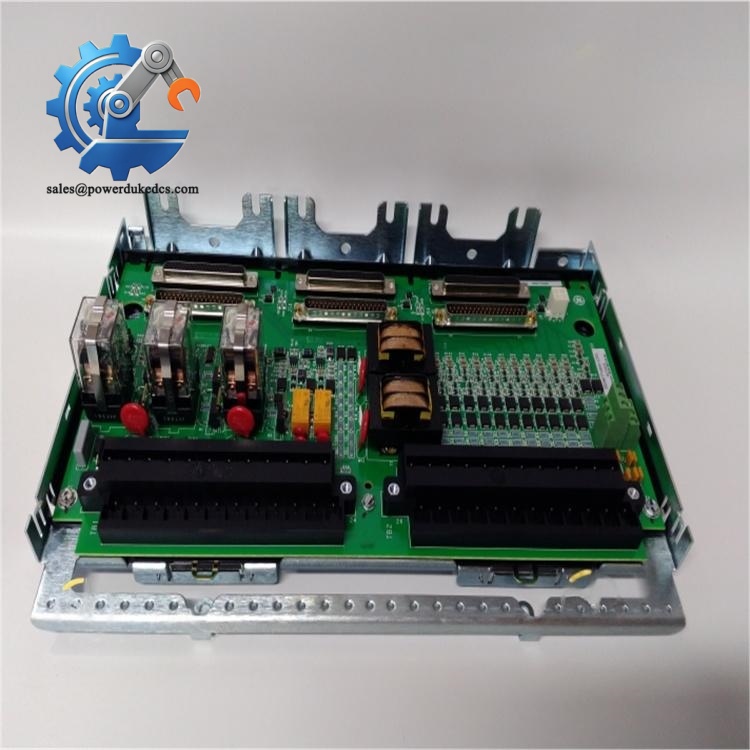

GE IS230PCAAH1A
5. ? Global Compliance & Industry Certifications
Expected regulatory considerations for the GE IS230PCAAH1A include:
- CE Mark: Applicable when installed as part of a compliant GE Mark VIe control system meeting EMC requirements.
- UL/cUL Listed: May apply depending on the complete turbine control cabinet certification package.
- ATEX / IECEx: Applicable only when used within an approved hazardous-area Mark VIe installation arrangement.
- Marine Approvals (DNV GL): Relevant only for specific marine turbine control projects.
The ATEX/IECEx certification pathway matters because it confirms that equipment installed in hazardous zones has been evaluated for ignition risks under defined operating conditions. A module without the correct approval package should not be substituted into a certified hazardous-area system.
Maintain records of serial number, hardware revision, firmware revision, and installation location.
Verify specific lot certifications with OEM.
6. ? Long-Term Storage & Asset Preservation Guide
Store the IS230PCAAH1A inside the original anti-static (ESD) shielding bag. The connector pins and circuit board surfaces require protection from electrostatic discharge and airborne contamination.
Maintain warehouse humidity below 60% RH. Avoid storage areas with condensation cycles because oxidation on connector contacts can create intermittent analog measurement faults.
Inspect the module every 12–24 months. Examine the enclosure, connectors, retaining features, and identification markings. Before installation, compare the spare revision against the existing Mark VIe configuration database.
7. Physical Installation Prerequisites
- Install the IS230PCAAH1A only with compatible GE Mark VIe terminal board assemblies.
- Verify the correct terminal board pairing before replacement.
- Inspect mating connectors before insertion.
- Secure all retaining hardware according to GE installation procedures.
- Maintain cabinet airflow for convection cooling.
- Leave approximately 50 mm clearance above and below rack ventilation areas where required by cabinet design.
- Confirm protective earth grounding of the turbine control cabinet.
- Separate analog signal wiring from high-voltage switching circuits.
- Perform signal verification and controller diagnostics after installation.
8. Buyer’s FAQ (Logistics & Compliance Focus)
Q: What HS Tariff Code is commonly used for the GE IS230PCAAH1A?
A: Industrial turbine control modules are commonly reviewed under HS 8538 or related electrical control equipment classifications. The final classification depends on the declared function and importing-country customs requirements.
Q: Why is Country of Origin (COO) important for this GE module?
A: COO documentation supports customs clearance, warranty tracking, and regulated asset management. The origin listed on the commercial invoice should match available product identification records.
Q: Should shipping insurance be purchased for the IS230PCAAH1A?
A: Recommended. The module contains precision analog electronics and communication interfaces. Shock, vibration, or moisture exposure may not be visible externally but can affect startup testing.
Q: Does the IS230PCAAH1A include the latest firmware pre-loaded?
A: The module contains factory firmware, but the installed revision depends on manufacturing history. Confirm firmware compatibility, hardware revision, and Mark VIe configuration before commissioning.
