GE IS420UCSCH1A-F-VO.1-A | Mark VIe UCSC Controller

Description

• Brand: GE
• Full Model Number: IS420UCSCH1A-F-VO.1-A
• Base Hardware: IS420UCSCH1A
• System/Series Family: GE Mark VIe / Mark VIeS UCSC
• One-Sentence Core Function: Stand-alone Mark VIe controller running application-specific turbine or balance-of-plant control logic with integrated I/O-network and PROFINET capabilities
• Top 3 Hardcore Specs: 1.2 GHz quad-core AMD G-Series processor; 4 GB DDR3-1333 SDRAM; 3 IONet + 2 dedicated Ethernet interfaces
• Control Software: ControlST V07.00.00C or later
• Power: 18–30 VDC input, 24/28 VDC nominal
• Operating Temperature: -40 to +70 °C
• Stock Status: New Surplus / Fully Tested Refurbished subject to actual inventory inspection

Module 3: Commercial-Technical Deep Dive

A failed Mark VIe UCSC controller can remove the control processor from an entire turbine or balance-of-plant architecture even when the distributed I/O remains physically intact. The GE IS420UCSCH1A-F-VO.1-A is a configuration of the IS420UCSCH1A UCSC H1 controller, a compact stand-alone controller for application-specific Mark VIe control logic. GE documentation specifies a quad-core 1.2 GHz AMD G-Series processor, 4 GB DDR3-1333 SDRAM, QNX Neutrino operation, and support for Simplex, Dual, and TMR configurations. The UCSC does not contain conventional backplane-mounted application I/O; it communicates with distributed I/O through Ethernet-based IONet.

The communication architecture is where this controller earns its place in a legacy Mark VIe installation. The H1A platform provides three dedicated IONet ports for R, S, and T network paths, plus ENET 1 for UDH/engineering and HMI communications and ENET 2 for embedded PROFINET. GE specifies 10/100Base-TX Ethernet on these interfaces and identifies the H1A platform as the version with an embedded PROFINET gateway. The controller accepts 18–30 VDC, with 18 W nominal input power, and is rated for -40 to +70 °C operation when the prescribed mounting clearances are maintained.

GE IS420UCSCH1A-F-VO.1-A

Module 4: Compatibility & Installation Traps

Migration/Compatibility

• Replacement status: GE Mark VIe UCSC H1A controller, configuration IS420UCSCH1A-F-VO.1-A
• Logic rewrite: Normally not required for a true like-for-like controller replacement when the existing Mark VIe project, application image, network configuration, and controller role are preserved.
• Firmware update: Configuration dependent. The UCSCH1A controller is loaded with application-specific software, and GE documentation states that the UCSCH1x platform requires ControlST V07.01 or later in the documented architecture.
• Drop-in status: Potentially direct only after verifying controller generation, application configuration, firmware, redundancy role, IONet topology, and PROFINET configuration.
• Redundancy: Supports Simplex, Dual, and TMR operation on the UCSCH1x platform.
• I/O architecture: Application I/O is distributed; the UCSC does not host traditional backplane I/O.
• Exact suffix: The supplied F-VO.1-A suffix should be retained in procurement records. Public technical documentation consistently identifies the base IS420UCSCH1A hardware, while configuration-specific suffix details are not fully documented in the public system guide.

⚠️ Field Traps (Watch Out)

• Application-image mismatch: A replacement UCSC can complete hardware startup while still lacking the required turbine or BoP application. GE states that the controller is loaded with software specific to its application.
• IONet topology error: The three IONet ports represent distinct R, S, and T network roles. Swapping these connections can break redundancy or network synchronization even though the controller powers normally.
• PROFINET configuration: On UCSCH1A, ENET 2 is the PROFINET interface. Device host names must match the ToolboxST configuration, and the PROFINET network should be treated as a dedicated network in newer installations.
• Mounting clearance: GE specifies vertical mounting with unobstructed airflow, at least 100 mm above and below the UCSC, with 50 mm minimum parallel spacing between adjacent UCSCs for the full temperature rating.
• Power polarity: The controller uses a three-pin power connection with ground, negative, and positive terminals. GE specifies reverse-polarity protection, but incorrect polarity will prevent startup.

Module 5: Quality Assurance SOP

Before shipment, the GE IS420UCSCH1A-F-VO.1-A should undergo a controller-specific QA sequence:

1. OEM anti-counterfeit visual inspection — verify GE identification, UCSC H1A designation, complete catalog marking, serial information, enclosure, heatsink, Ethernet ports, USB ports, and labels.
2. Configuration reconciliation — record the complete IS420UCSCH1A-F-VO.1-A identification and compare it with the customer’s required configuration.
3. Mechanical inspection — inspect mounting ears, heatsink fins, RJ-45 connectors, USB sockets, COM interface, power plug, and enclosure for impact or contamination.
4. Power-input verification — apply controlled DC power within the documented 18–30 VDC range using a current-limited laboratory source. GE specifies 24/28 VDC nominal input and 18 W nominal power.
5. Power-on self-test (POST) — verify CPU initialization, UEFI/boot behavior, status LEDs, and diagnostic indications.
6. Memory verification — confirm recognition and stable operation of the installed 4 GB DDR3-1333 SDRAM.
7. IONet handshake verification — connect the controller to a controlled Mark VIe I/O test environment and verify R/S/T Ethernet communication.
8. UDH/Ethernet verification — establish a controlled engineering-network connection through ENET 1 and verify ToolboxST communications.
9. PROFINET verification — using a compatible test network, verify ENET 2 initialization, PROFINET controller operation, device identification, and cyclic I/O exchange. GE documents up to 8 KB input and 8 KB output memory and 100 Mbps full-duplex operation for the embedded PPNG.
10. Application execution test — load a controlled Mark VIe test configuration and verify controller execution, I/O exchange, diagnostics, and redundancy behavior where the test platform permits.
11. Thermal observation — confirm stable operation under controlled load while maintaining GE’s prescribed airflow clearances.
12. Final QC record — document exact suffix, hardware identification, firmware/application version, network test results, photographs, measured values, and packaging condition.

A UCSC controller that simply boots is not fully tested. Network-role verification, application execution, PROFINET communications, and redundancy behavior are the meaningful acceptance checkpoints.

Module 6: CRO-Driven Buyer FAQ

1. Is GE IS420UCSCH1A-F-VO.1-A obsolete, and how do I verify an authentic replacement?

The base IS420UCSCH1A remains documented as a Mark VIe UCSC H1A controller, including its processor, memory, network architecture, and application-specific software model. GE system documentation identifies the H1A as the platform with the embedded PROFINET gateway. For procurement, verify the complete F-VO.1-A marking on the physical unit rather than buying against “UCSCH1A” alone.

2. Ca the .1-A?

Do not assume hot-swap capability. The UCSC is the application controller, and its connections include control power, IONet, UDH, and potentially PROFINET. Some Mark VIe redundant architectures are designed to maintain control during controller maintenance, but whether this exact installation permits online replacement depends on the configured redundancy and GE-approved maintenance procedure.

3. Will replacing the UCSC require rewriting the Mark VIe control program?

Usually not a complete control-logic rewrite for a genuine like-for-like replacement. The main task is restoring the correct application image, controller configuration, network addressing, redundancy role, and I/O mappings. GE’s documentation makes clear that UCSC software is application-specific.

4. What are the key interfaces on the UCSCH1A?

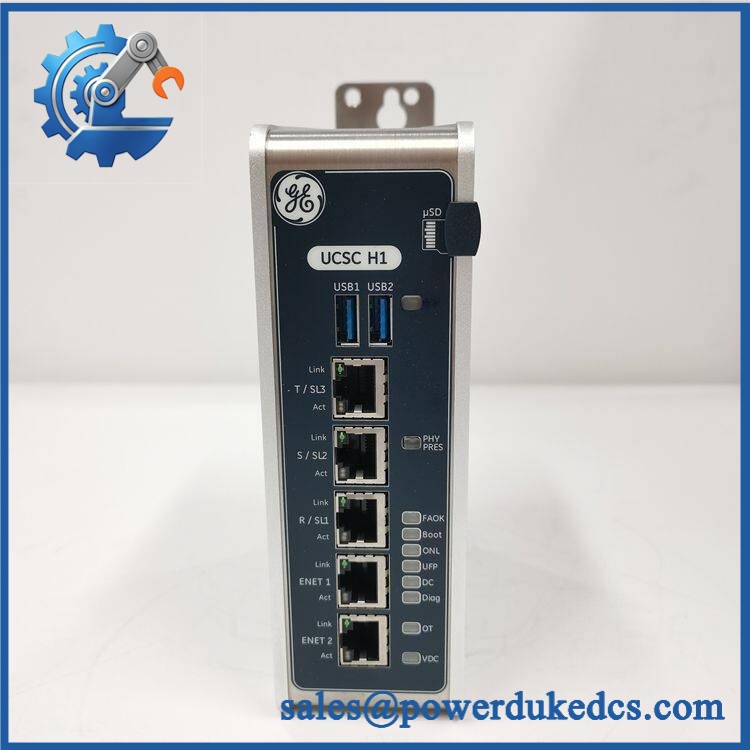

The H1A provides three IONet Ethernet ports, ENET 1 for the primary UDH/engineering network, ENET 2 for PROFINET, two USB ports for setup/restore functions, a 115200 bit/s COM port, a DisplayPort disabled after startup, and a microSD slot that the cited documentation says is not currently supported.

5. What warranty and technical support are available?

Warranty duration should be stated according to the actual inventory condition, such as new surplus or tested refurbished. Technical support should cover exact suffix verification, Mark VIe/Mark VIeS compatibility, ControlST project review, IONet topology, PROFINET configuration, firmware identification, and documented bench-test results. Turbine control logic, safety functions, redundancy commissioning, and live plant restart remain the responsibility of qualified site controls personnel.
