GE LV5F30-NF | PECeLite Industrial Controller for LV5 Inverters

Description

• Brand: GE
• Full Model Number: LV5F30-NF
• Series: PECeLite
• Lifecycle Status: Legacy / discontinued or limited-support status; current OEM availability should be verified
• Core Function: Programmable industrial controller for GE LV5 inverter systems
• Top 3 Technical Specs: 24 VDC control supply; PECeLite controller architecture; LV5 inverter application
• Application: LV5 inverter and power-conversion control systems
• Associated Part Number: HCPC000038849 reported for the PECeLite-LV5F30-NF controller
• Stock & Condition: New surplus / tested refurbished, subject to physical stock allocation
• Dispatch: Same-day or expedited dispatch after part-number and inventory confirmation

Available documentation and trade records identify PECeLite-LV5F30-NF as a GE controller used in LV5 inverter systems, with a 24 VDC supply specification. A GE wiring document also explicitly shows the PECeLite-LV5F30-NF in an LV5 power-system design.

Obsolescence & Supply Chain Deep Dive

A failed LV5 controller creates a different sourcing problem from a routine PLC spare. The controller sits inside a larger inverter control architecture, so the replacement must match the intended controller version, software environment, I/O arrangement, and power system configuration. Available records associate LV5F30-NF with GE’s PECeLite control platform and with LV5 inverter installations; customs records also identify the exact controller designation HCPC000038849 in 24 VDC LV5 inverter applications.

For an operating inverter system, replacing the controller can be materially less disruptive than redesigning the complete control cabinet. The TCO calculation should include inverter downtime, commissioning labor, software recreation, wiring changes, site testing, and the engineering hours required for a larger migration. Where the existing system already uses the LV5F30-NF architecture, a verified spare preserves the established control arrangement and reduces the amount of change required during an emergency intervention (actual savings depend on the installed LV5 configuration and available software backup).

Compatibility & Replacement Matrix

Field Traps Watch Out

Exact LV5 configuration: Do not approve the purchase from the base model number alone appears in real LV5 inverter installations with a specific 24 VDC control arrangement, and configuration-dependent software and I/O data may remain tied to the original controller.

Part-number ambiguity: Market listings sometimes combine , PEC, and HCPC000038849 in the same description. Procurement should request a photograph of the actual nameplate and confirm which identifier is physically marked on the unit before the PO is released.

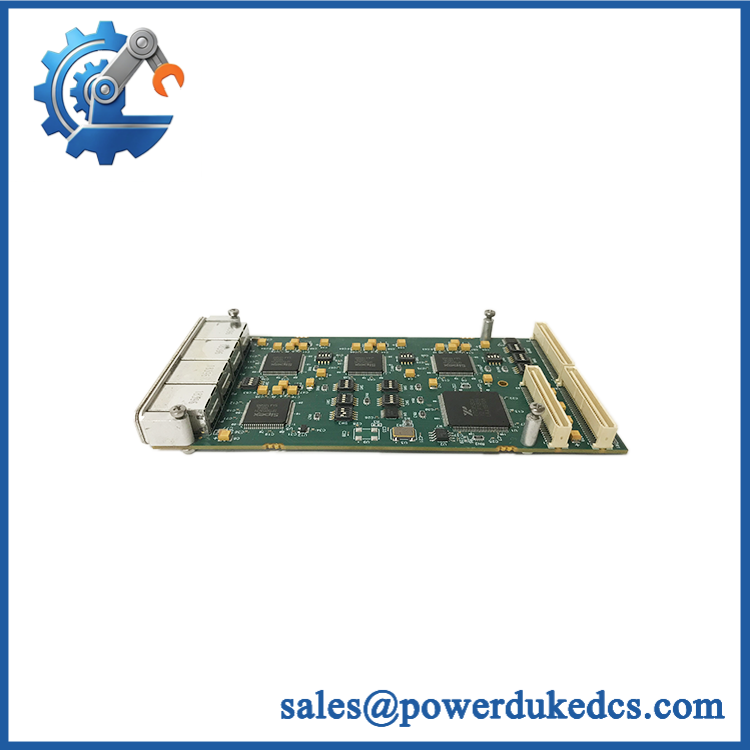

GE LV5F30-NF

Quality Assurance & Testing SOP

For a su, inspection should focus on controller identity, power-up behavior, software/configuration integrity, and inverter-control functions.

• OEM anti-counterfeit visual inspection: Verify GE labe marking, serial/identification data, board condition, connectors, mounting points, and evidence of unauthorized component replacement.
• Nameplate and part-number verification: Record the complete model designation and cross-check the physical marking against the purchase order and supplied photographs.
• Power-on self-test (POST): Energize the controller through a controlled test setup using the specified control supply arrangement and monitor startup status, processor activity, alarm indications, and abnormal resets.
• 24 VDC power test: Confirm stable startup under the intended 24 VDC control supply condition is identified in available records as a 24 VDC controller.
• Controller diagnostic test: Verify CPU startup, memory access, configuration loading, and available diagnostic functions.
• I/O functional test: Exercise representative digital and analog control channels through an appropriate LV5 test arrangement and confirm correct command/status response.
• Communication test: Check configured control communications and verify stable data exchange with the associated inverter-control environment where the test bench permits.
• Parameter retention test: Confirm that required application parameters remain readable and that no unexpected configuration loss occurs after controlled power cycling.
• Extended run test: Operate the controller under controlled conditions to identify intermittent resets, communication loss, abnormal heating, or unstable control behavior.
• Final traceability record: Photograph the actual unit, record serial/identification data, document the test results, and archive the inspection record with the shipment.

A visual inspection alone should not be treated as sufficient acceptance criteria for a surplus inverter controller.

Procurement & Lifecycle FAQ

Is t genuinely in stock, and what is the cutoff for emergency shipping?
Stock should be confirmed against the physical unit before the PO is issued. Current commercial listings and trade records / PEC units circulating as replacement inventory, including new material. Emergency dispatch depends on physical allocation, inspection completion, payment clearance, and the carrier cut-off on the shipment date.

How do you verify the condition and authenticity of an obsolete or su?
Require actual-unit photographs showing the GE identification label, complete model designation, serial or identification markings, connectors, and overall condition. The supplier should also provide the recorded power-up and functional-test results for the specific unit rather than relying on a generic product photograph.

Are there firmware or software compatibility issues engineers should check before issuing the PO?
Yes. The controller should be matched to the existing LV5 inverter application, controller configuration, parameter set, I/O assignment, and software environment. The model designation alone does not establish full application compatibility, so the existing controller’s configuration should be backed up before removal whenever possible.

I a direct replacement for every PECeLite LV5 controller?
No automatic cross-replacement should be assumed is associated specifically with the PECeLite platform and LV5 inverter applications, but the installed system’s hardware and software configuration still need to be checked.

What warranty and return terms should be stated on the PO?
Specify the warranty duration, DOA definition, functional-failure coverage, inspection window, RMA procedure, and return-freight responsibility in the quotation or PI. For su units, retain the serial/identification record, pre-shipment photographs, and test report as part of the procurement file.
