Description
- Brand: GE / GEFRAN
- Full Model Number: SBI-PDP-32
- Lifecycle Status: Legacy / Obsolete status should be verified
- Core Function: PROFIBUS-DP interface card for digital AC/DC drives
- Primary Application: TPD32 / TPD32-EV drive communication
- Top 3 Technical Specs: PROFIBUS-DP | 9.6 kbit/s to 12 Mbit/s | Bus address 1–127 via DIP switches
- Data Function: Drive parameter configuration channel + 4 fast I/O words
- Network Features: Sync and Freeze supported
- Physical Dimensions: 157 × 110 × 23 mm
- Weight: Approx. 200 g
- Bus Device ID: 009Ah hexadecimal / 154 decimal
- Stock & Condition: Physical stock and condition to be confirmed per quotation; New Surplus or Tested Refurbished where available
- Supply Mode: Direct industrial spare-parts supply; emergency dispatch subject to confirmed inventory and carrier cutoff
Obsolescence & Supply Chain Deep Dive
When a legacy TPD32 drive loses its fieldbus interface, replacing the entire drive is often a much larger intervention than replacing the communication card. SBI-PDP-32 is documented as a PROFIBUS-DP interface card for digital AC and DC drives, providing communication between drives and PLCs or computers. Published technical documentation specifies automatic transmission-speed selection from 9.6 kbit/s through 12 Mbit/s, a 1–127 selectable bus address, a drive-parameter configuration channel, four fast I/O words, and Sync/Freeze support.
For lifecycle procurement, retaining the installed TPD32 communication architecture can avoid a full drive migration, including PLC program changes, PROFIBUS configuration changes, panel modifications, and commissioning. The documented card dimensions are 157 × 110 × 23 mm with a stated weight of approximately 200 g, and installation uses a 40-pin flat cable connection to the regulation card. The key TCO consideration is therefore interface compatibility rather than simply the purchase price of the replacement card (surplus stock can also reduce the waiting period associated with factory production).
Compatibility & Replacement Matrix
| Replacement Scenario | Assessment | Engineering / Procurement Guidance | Estimated Switch Time |
|---|---|---|---|
| SBI-PDP-32 replacing the same SBI-PDP-32 in a compatible TPD32 installation | Drop-in Replacement subject to configuration verification | Match card identification, mounting arrangement, cable connection, and PROFIBUS settings | Approx. 2–4 hours |
| SBI-PDP-32 with different configuration/address settings | Software Compatible — configuration required | Restore the correct PROFIBUS address and PLC/network configuration | Approx. 2–6 hours |
| Different PROFIBUS interface card | Software Compatible — engineering verification required | Check GSD/device identity, process-data mapping, and drive compatibility | Approx. 4–12 hours |
| Replacement with a different drive communication architecture | Hardware Modification | Requires network, PLC, drive, wiring, and commissioning changes | Several days to several weeks |
Field Traps — Watch Out
- DIP-switch address: The PROFIBUS address is selectable from 1 to 127 through DIP switches. The replacement card must use the same address expected by the PLC/master configuration unless the network configuration is intentionally changed.
- Drive-side connection: SBI-PDP-32 is mounted onto the regulation card using the specified standoffs and a 40-pin flat cable. Confirm the host drive and regulation-card arrangement before approving the replacement.
- Process-data configuration: The card supports configuration access to drive parameters and four fast I/O words. Changes to the expected process-data configuration can affect PLC communication even when the physical card is correctly installed.

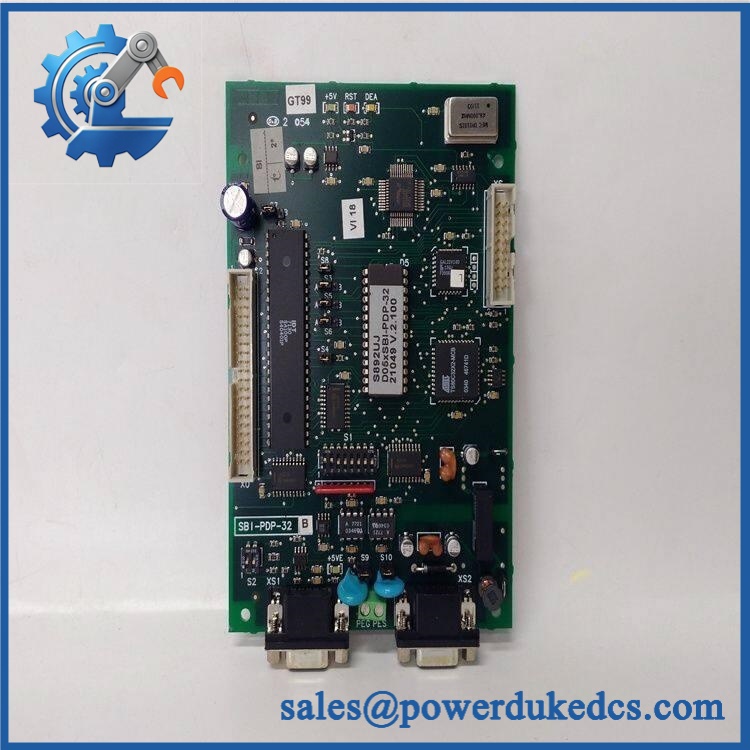

GE SBI-PDP-32
Quality Assurance & Testing SOP
should be evaluated as a PROFIBUS communication interface rather than as a generic I/O module. The published manual identifies its hardware connections, switch configuration, PROFIBUS communication functions, and drive-side installation procedure.
- OEM anti-counterfeit visual inspection: V identification, manufacturer markings, PCB construction, connectors, DIP switches, and visible component details.
- Nameplate verification: Record the exact model, serial information where available, and hardware revision.
- Mechanical inspection: Check the PCB, connectors, mounting holes, standoffs, cable interface, and components for corrosion, cracks, contamination, or unauthorized modification.
- Power-on self-test (POST): Install the card in an appropriate TPD32 test environment and verify controlled initialization.
- PROFIBUS communication test: Connect the card to a controlled PROFIBUS-DP master and verify device communication.
- DIP-switch verification: Check the physical bus-address setting against the intended network configuration.
- Transmission test: Verify communication at an applicable PROFIBUS-DP speed within the documented 9.6 kbit/s to 12 Mbit/s range.
- Process-data test: Verify representative cyclic process-data exchange and the supported fast I/O word configuration.
- Parameter-access test: Confirm communication with applicable drive parameters through the configuration channel.
- Sync/Freeze test: Where the test system supports these functions, verify correct response to Sync and Freeze commands.
- Extended communication run: Maintain network communication under controlled operation to identify intermittent bus faults.
- Final traceability: Photograph the actual card, record identification information, document test results, and retain the inspection record.
- ESD-safe packaging: Protect the card against electrostatic discharge, impact, vibration, and moisture during shipment.
Procurement & Lifecycle FAQ
Is t genuinely in stock, and what is the cutoff for emergency shipping?
Physical inventory should be confirmed before the PO is accepted. For an emergency requirement, provide the quantity and destination so the available condition, test status, and carrier cutoff can be confirmed before dispatch.
How do you verify the condition and authenticity of a su?
The card should undergo model identification, PCB and connector inspection, controlled power-on testing, PROFIBUS-DP communication testing, DIP-switch verification, and applicable process-data testing.
a general-purpose GE PLC communication module?
No. Available manufacturer and PROFIBUS documentation ident as a PROFIBUS-DP interface card for digital AC/DC drives, including applications. It should be matched to the applicable drive architecture rather than treated as a generic PLC I/O card.
What PROFIBUS settings should engineers check before issuing the PO?
Verify the PROFIBUS station address, expected transmission configuration, process-data arrangement, PLC/master configuration, and applicable GSD/device information. The documented bus address range is 1–127, with address selection through DIP switches.
What warranty and return terms apply?
Warranty duration, return eligibility, and exclusions should be stated on the quotation according to the actual unit condition and testing status. These terms should be confirmed in writing before the PO is issued.
