1. GE SR469-P5-HI-A20 | OEM Asset with Compliance Records

Unboxing & Physical Snapshot

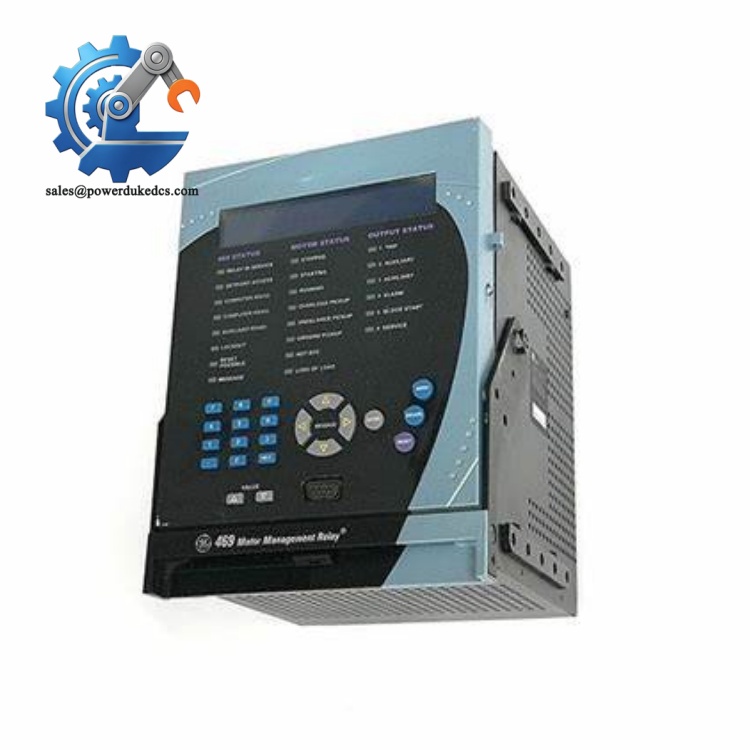

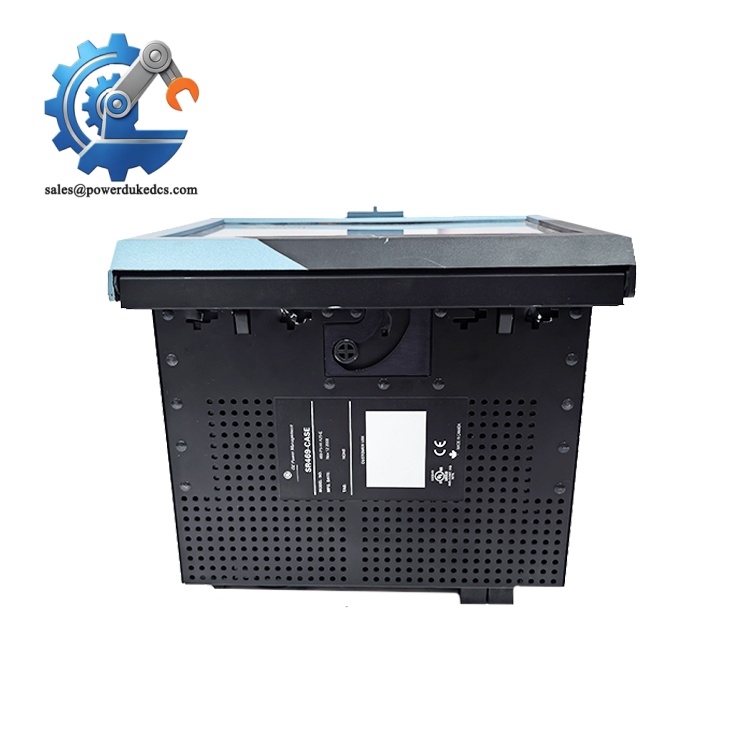

• Brand & Model: GE Multilin SR469-P5-HI-A20 Motor Management Relay
• Product Type: Medium and large motor protection and management relay for MCC, switchgear, and industrial motor control applications.
• Approximate Physical Dimensions (W × H × D): Approximately 192 × 192 × 200 mm (7.6 × 7.6 × 7.9 in.) including the standard relay case and rear terminal area (verify cabinet cutout drawing before replacement).
• Estimated Shipping Weight: Approximately 7.7 kg (17 lb) including relay case and protective packaging.
• What’s in the Box:
  • GE Multilin SR469-P5-HI-A20 motor management relay
  • Front display/keypad assembly
  • Rear terminal block interface
  • Panel mounting hardware
  • Installation documentation when included
  • Factory identification labels and serial number tag
  • ESD protective packaging for warehouse storage

Product Introduction

Structure C — Compliance Hook

The GE SR469-P5-HI-A20 is a protection-class device where exact model identity matters. A substitution error can alter motor protection settings, current transformer compatibility, or trip behavior. For audited facilities, the replacement record must match the approved relay family, hardware option code, and installed configuration (especially where motor protection studies are controlled documents).

This relay installs into motor control assemblies requiring monitoring of electrical loading, thermal conditions, and fault events. The draw-out style enclosure allows maintenance teams to remove the relay from service without rebuilding the complete panel section. Inspect the front bezel, rear terminal blocks, and retaining hardware before installation; shipping damage in these areas can create commissioning delays.

Core Technical Specifications

GE SR469-P5-HI-A20

Specifications vary by hardware revision and option code. Confirm the nameplate and OEM documentation before installing a spare unit.

? Global Compliance & Industry Certifications

Expected regulatory approvals for this industrial protection relay class may include:

• CE Mark — indicates compliance with applicable European electrical and EMC requirements.
• UL/cUL Listed or Recognized — may apply depending on the specific relay revision and certification package.
• IEC 60255 Protection Relay Standards — commonly associated with protective relay performance requirements.
• RoHS Compliance — dependent on manufacturing date and regional supply requirements.
• Marine approvals (DNV GL) — only applicable for specifically certified variants.

The UL/cUL listing is important because it provides evidence that electrical clearances, insulation systems, and safety requirements have been evaluated for industrial use. This reduces uncertainty during panel certification reviews.

For hazardous-area applications, do not assume the relay itself carries ATEX or IECEx approval. The complete installation—including enclosure, wiring method, and protection concept—must satisfy the applicable hazardous location requirements.

Verify specific lot certifications with OEM.

? Long-Term Storage & Asset Preservation Guide

Keep the SR469-P5-HI-A20 inside its original anti-static shielding bag whenever possible. The rear terminal interface and internal electronics should not be exposed to warehouse dust, conductive particles, or uncontrolled humidity.

Maintain storage humidity below 60% RH. Moisture cycling can accelerate oxidation on terminal contacts and may affect internal protective coatings (a frequent concern in coastal warehouses and chemical processing sites).

Before energizing a relay stored for several years, inspect the LCD display, terminal screws, fuse area, and internal capacitor condition. Apply control power on a test bench first. Do not place a decades-old spare directly into a critical motor feeder without verification testing.

Physical Installation Prerequisites

• Install the relay in a clean, temperature-controlled MCC or protection cabinet.
• Confirm the panel cutout dimensions before mounting.
• Maintain approximately 50 mm clearance above and below the relay assembly where cabinet design allows for airflow.
• Ensure rear terminal blocks have sufficient wiring service loop space for maintenance access.
• Connect protective grounding according to the plant grounding design and OEM installation requirements.
• Verify CT polarity, CT ratio settings, and terminal torque values before commissioning.
• Secure panel mounting hardware evenly to avoid mechanical stress on the front enclosure.

The relay depends on correct mechanical alignment. Do not force the chassis into the panel opening.

GE SR469-P5-HI-A20

Buyer’s FAQ (Logistics & Compliance Focus)

Q1. Which HS Tariff Code should be used for shipping a GE ?

A: The final Harmonized System (HS) classification depends on the importing country and customs interpretation. Industrial protective relays are often reviewed under HS categories related to electrical control, switching, or protection equipment. Confirm the code with your customs broker before export documentation is created.

Q2. Does the Country of Origin affect procurement acceptance?

A: Yes. COO information may affect import duties, trade agreements, and customer documentation requirements. Maintain serial number records, supplier declarations, and original packaging labels for audit traceability.

Q3. Should shipping insurance be purchased for this relay?

A: Recommended. The relay enclosure protects internal electronics, but impact damage can affect the LCD assembly, terminal connections, or calibration-sensitive components. Use shock protection and insure the shipment based on replacement value.

Q4. Does the arrive with the latest firmware installed?

A: Not guaranteed. Firmware revision depends on manufacturing date and inventory history. Before field installation, compare the installed firmware revision against the approved plant standard and document any changes through the site’s management-of-change process.
