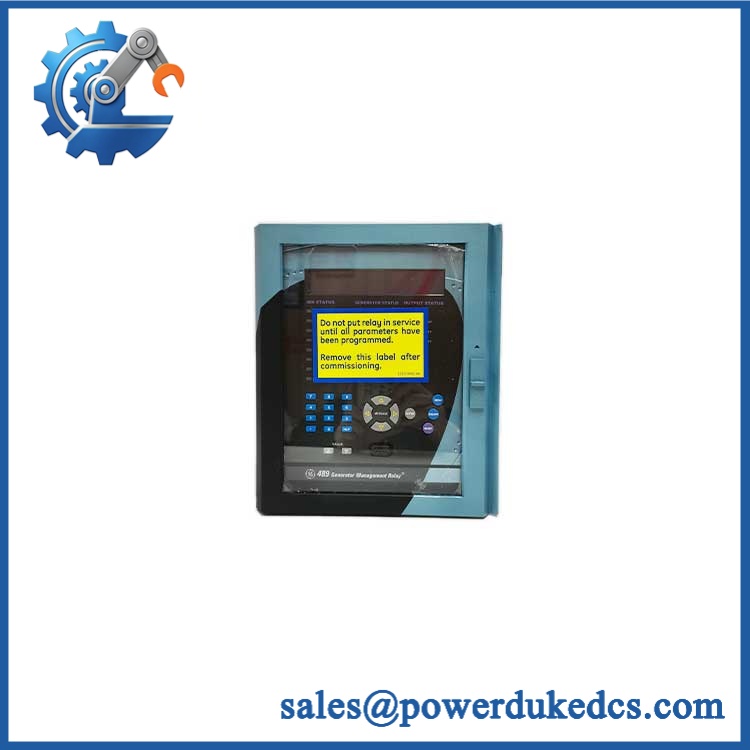

GE SR489-P5-LO-A1 | Generator Management Relay Legacy System

• Brand: GE Multilin
• Full Model Number: SR489-P5-LO-A1
• Lifecycle Status: Discontinued / Legacy
• Core Function: Generator protection management relay for small and medium generators
• Top 3 Technical Specs: 5 A phase CT inputs; 20–60 V DC / 20–48 V AC control power; 0–1 mA analog outputs
• Stock & Condition: RFQ confirmation; condition and quantity verified against physical inventory
• Relay Family: Multilin 489 / SR489
• Construction: Draw-out relay
• Communications: RS232 and isolated RS485; Modbus RTU supported
• Manufacturer Status: GE states that 489 manufacturing has been discontinued and identifies the 889 as a retrofit alternative.

Obsolescence & Supply Chain Deep Dive

A failed SR489-P5-LO-A1 can turn a routine relay replacement into a procurement problem because the Multilin 489 is now a discontinued product family. GE identifies the 489 as a legacy generator protection system and confirms that manufacturing has ended. The exact ordering code matters: P5 identifies the 5 A phase-CT version, LO specifies the lower control-power range, and A1 identifies the 0–1 mA analog-output option. For an operating site with an installed relay of this exact configuration, sourcing the matching unit can avoid an extended engineering and outage process.

The TCO case is primarily about avoiding unnecessary system work. An exact replacement can preserve existing CT wiring, voltage inputs, trip logic, field wiring, relay settings, and commissioning procedures, whereas moving to a newer protection platform can require engineering review, panel changes, configuration work, testing, and planned outage time. GE’s published specification confirms the 489’s protection, control, monitoring, and communications functions, including RS232, two RS485 ports, Modbus RTU, Modbus TCP/IP, and DNP 3.0 Level 2 support. A stocked legacy replacement therefore has value beyond the purchase price: it can reduce the scope of the immediate corrective maintenance event (factory-new legacy inventory can be difficult to source after discontinuation).

Compatibility & Replacement Matrix

GE documentation describes the 489 as a configurable generator protection relay with multiple hardware and option combinations. The ordering structure distinguishes CT input rating, control-power range, analog output type, display enhancements, and other options.

Field Traps — Watch Out

CT option mismatch: The P5 code corresponds to 5 A phase CT secondaries. Replacing it with a P1 version changes the intended CT input configuration and should not be treated as equivalent without an engineering review.

Control-power mismatch: The LO configuration accepts 20–60 V DC or 20–48 V AC. GE lists a separate HI power option of 90–300 V DC or 70–265 V AC. Confirm the installed auxiliary supply before energizing the replacement.

Firmware replacement trap: GE’s 489 firmware procedure requires the correct firmware file and compatible hardware revision. After a firmware update, the relay requires programming; communications parameters such as slave address, baud rate, and parity must be configured, and saved setpoints must be reloaded.

GE SR489-P5-LO-A1

Quality Assurance & Testing SOP

The pre-shipment process should treat the SR489-P5-LO-A1 as a protection device, not as a generic electronic spare.

• OEM anti-counterfeit visual inspection: Verify GE Multilin markings, model designation, option code, serial identification, front-panel construction, terminals, connectors, and case condition.
• Ordering-code reconciliation: Confirm SR489-P5-LO-A1 against the quoted unit and inspect the hardware markings for CT, power-supply, and analog-output configuration.
• Mechanical inspection: Check draw-out mechanism, terminal blocks, connectors, display, keypad, mounting points, and signs of moisture or unauthorized repair.
• Power-on self-test (POST): Energize using the correct control-power range and check the relay’s diagnostic/status indications for abnormal ERR/RUN conditions or self-test alarms.
• Protection-function simulation: Apply controlled test inputs appropriate to the configured voltage, current, frequency, and protection functions.
• I/O load testing: Verify relay outputs and representative connected circuits using controlled test loads without exceeding published contact ratings.
• Communications test: Exercise the applicable RS232/RS485 interface and verify expected Modbus communications where the required test environment is available.
• Analog-output verification: For the A1 configuration, verify the 0–1 mA analog-output response against known simulated values. GE’s published specification identifies A1 as the 0–1 mA option.
• Configuration retention check: Confirm that programmed setpoints and communications parameters can be recorded and restored before shipment.
• Final QA record: Photograph the nameplate, revision information, terminal condition, and powered test state; retain the inspection record with the shipment file.

Units should not be released on a power-up test alone. Protection inputs, outputs, configuration, and communications need application-appropriate verification.

Procurement & Lifecycle FAQ

Is the GE SR489-P5-LO-A1 genuinely in stock, and what is the cutoff for emergency shipping?

Physical inventory should be confirmed before PO acceptance because the SR489 is a discontinued GE product family. Request the exact quantity, unit condition, nameplate photographs, and same-day shipping cutoff before issuing an emergency order. GE currently identifies the 489 as legacy and states that manufacturing has been discontinued.

How do you guarantee the condition and authenticity of an obsolete or surplus ?

The unit should be verified by model number, option code, serial information, physical construction, connectors, and functional test results. For a legacy protection relay, the quotation should state the actual condition—such as New Surplus or Tested Refurbished—rather than using an unspecified inventory description.

Are there firmware compatibility issues I should warn my engineers about before issuing the PO?

Yes. Firmware changes require attention to hardware revision and configuration. GE’s documented firmware procedure states that a firmware update can require the relay to be reprogrammed, including RS485 communication parameters and saved setpoints. Engineers should record the installed firmware revision and setpoints before replacement.

Is a true drop-in replacement?

An exact matching the installed relay’s electrical and functional configuration can generally be treated as a like-for-like replacement, subject to site verification. The P5, LO, and A1 option codes must match the application’s CT, control-power, and analog-output requirements.

What are the warranty and return terms?

The warranty period and return conditions should be stated on the commercial quotation and PI for the specific unit. For obsolete protection relays, confirm functional warranty coverage, RMA requirements, inspection conditions, and return-shipping responsibility before releasing the PO.
