GE SR489-P5-LO-A20 | Multilin SR489 Generator Management Relay

Description

• Brand: GE Multilin
• Full Model Number: SR489-P5-LO-A20
• System/Series Family: GE Multilin SR489 Generator Management Relay
• One-Sentence Core Function: Digital generator protection and management relay for monitoring electrical, thermal, and mechanical generator conditions
• Top 3 Hardcore Specs: 5 A CT input class; low-optics configuration; generator protection, metering, monitoring, and control functions in one relay
• Stock Status: New surplus / fully tested refurbished, subject to exact hardware revision

The GE Multilin SR489-P5-LO-A20 belongs to the SR489 Generator Management Relay family. The SR489 platform is designed for generator protection and management, combining protection elements, metering, monitoring, control, event recording, and communications in a single relay architecture. The exact suffix is important because SR489 ordering codes define the CT/VT, communications, display, output, and option configuration.

Module 3: Commercial-Technical Deep Dive

Generator protection is not only about detecting a short circuit. The relay also has to distinguish overload, abnormal current, voltage conditions, thermal stress, ground faults, and other operating states without creating unnecessary trips. The GE Multilin SR489-P5-LO-A20 is built around that broader generator-management role. The SR489 family supports generator differential, phase and ground overcurrent, voltage and frequency protection, reverse power, negative-sequence protection, thermal modeling, breaker monitoring, and detailed metering. With the correct CT/VT configuration and settings, the relay can act as the protection and monitoring hub for a generator breaker and associated auxiliaries.

For maintenance teams, the practical benefit is consolidation. Instead of replacing separate protection, metering, and monitoring devices, the SR489 can cover these functions within one programmable relay. GE documentation describes event recording with waveform capture, oscillography, pre-trip data, and extensive metering, giving commissioning and troubleshooting personnel a much stronger diagnostic record after a trip. The relay also supports communications for supervisory integration; however, exact protocol availability depends on the installed SR489 configuration and firmware, so the complete ordering code should be verified before promising a particular communications interface.

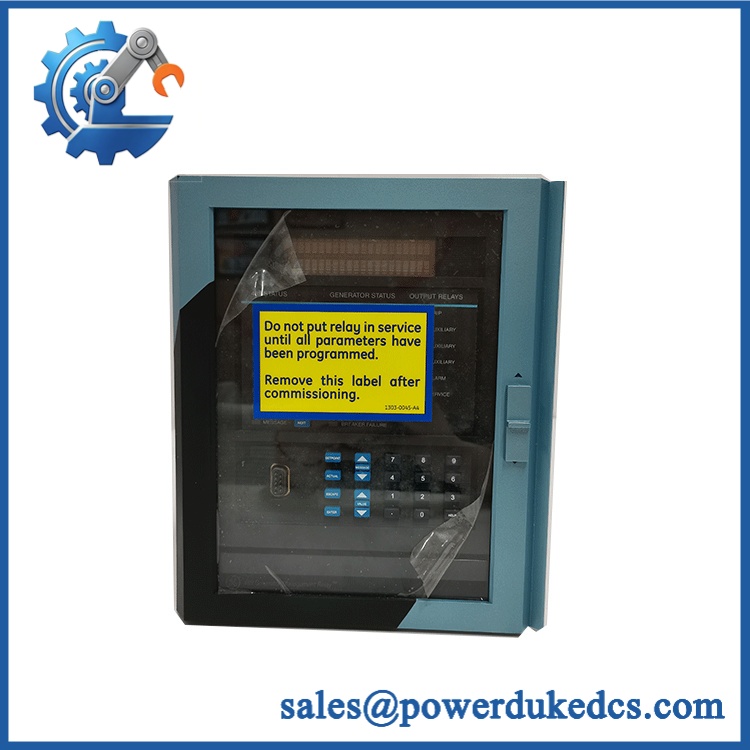

GE SR489-P5-LO-A20

Module 4: Compatibility & Installation Traps

Migration/Compatibility

• Replacement type: GE Multilin SR489 Generator Management Relay
• Model: SR489-P5-LO-A20
• Series: SR489
• Firmware flash: May be required when the replacement relay carries a different firmware revision or when the application settings must be restored to the replacement hardware.
• Logic rewrite: Normally not required for a same-model replacement; protection settings and configuration should be restored and validated.
• Drop-in status: Potentially direct when the complete SR489-P5-LO-A20 ordering code matches the installed relay configuration.
• Application: Generator protection, metering, monitoring, and control.
• Configuration warning: Do not substitute another SR489 suffix solely because the front-panel hardware looks similar. The suffix defines important hardware options.

⚠️ Field Traps (Watch Out)

1. Verify the complete ordering code before shipment.
The SR489 family contains multiple hardware configurations. CT/VT inputs, auxiliary supply, communication options, output arrangements, and display/optic configurations can vary. A generic “SR489” replacement is not sufficient for an exact-match procurement requirement.

2. CT secondary rating must match the protection scheme.
A relay with a 5 A CT input configuration must be connected to the corresponding CT secondary arrangement. Never connect a CT secondary to a relay configured for a different nominal input without confirming the exact wiring and input specification.

3. Never open-circuit an energized CT secondary.
During installation and commissioning, CT circuits require the approved shorting and isolation procedure. An open CT secondary can produce dangerously high voltage. Protection testing should use calibrated injection equipment rather than improvised live-current methods.

4. Restore protection settings, not just hardware.
A replacement relay can power up and communicate normally while still having incorrect pickup values, curves, time delays, PT/CT ratios, breaker logic, or trip outputs. Export and verify the original settings before returning the generator to service.

5. Check the station-control interface.
Trip and close contacts, breaker status inputs, annunciation, and communications all form part of the protection scheme. A physically correct relay can still create a commissioning failure if contact assignments or logic equations differ from the original configuration.

Module 5: Quality Assurance SOP

Each GE SR489-P5-LO-A20 unit should pass a documented pre-shipment inspection sequence:

• OEM anti-counterfeit visual inspection: Verify GE Multilin identification, SR489-P5-LO-A20 ordering code, serial number, front-panel labeling, connector arrangement, and manufacturing quality.
• Exact part-number verification: Match every character of the ordering code against the purchase order and installed relay documentation.
• Mechanical inspection: Check terminal blocks, front-panel controls, display, communication connectors, housing, mounting points, and seals for damage, corrosion, contamination, or unauthorized modification.
• CT/VT input verification: Confirm the relay’s configured current/voltage input architecture against the ordering code and test documentation.
• Power-on self-test (POST): Energize the relay on an approved test bench and verify successful initialization, display operation, self-diagnostic status, and absence of persistent hardware alarms.
• Digital I/O verification: Exercise representative input and output channels and verify correct pickup, status indication, and relay-contact operation.
• Protection-function testing: Use calibrated secondary-injection equipment to verify applicable phase overcurrent, ground-fault, voltage, frequency, thermal, negative-sequence, and other enabled protection elements.
• Metering verification: Compare measured current, voltage, power, frequency, and other available values against calibrated test sources.
• Communication handshake verification: Verify communications through the installed interface and confirm correct relay identification, data exchange, and event/status reporting.
• Event-recording verification: Trigger controlled protection events and confirm correct event capture, time stamping, and waveform/oscillography recording where supported.
• Final QC: Record the relay serial number, firmware version, hardware revision, test results, and calibrated-equipment references; photograph the nameplate and package the relay securely.

Module 6: CRO-Driven Buyer FAQ

1. What is GE SR489-P5-LO-A20?

It is a GE Multilin SR489 Generator Management Relay configured for generator protection and management applications. The SR489 family combines electrical protection, metering, monitoring, event recording, and control functions within one relay platform. (gevernova.com)

2. What does the P5-LO-A20 suffix mean?

The suffix is part of the SR489 hardware ordering code and identifies the relay’s specific option configuration. Because SR489 variants can differ in input, output, communications, display, and other hardware features, the complete SR489-P5-LO-A20 number should be matched exactly before substitution.

3. Can the SR489 be hot-swapped?

Do not assume hot-swap capability. The relay interfaces with CT, VT, trip, close, and other control circuits, so replacement should follow the generator protection system’s approved isolation procedure. CT circuits require particular care, and energized CT secondaries must never be left open-circuit.

4. Does replacing SR489-P5-LO-A20 require a new protection logic program?

A same-model replacement normally does not require redevelopment of the protection scheme. However, the relay configuration, CT/VT ratios, pickup values, time curves, logic equations, communication settings, and enabled protection elements must be restored and independently verified before the generator is returned to service.

5. What warranty and technical support are provided?

Warranty duration should be stated on the quotation for the exact inventory condition supplied. Technical support should cover exact model verification, hardware/firmware identification, settings review, secondary-injection test documentation, I/O verification, and replacement guidance within the SR489 architecture. Generator protection coordination, CT/VT commissioning, trip-circuit validation, and energized site work require appropriately qualified protection personnel.
