GE SRPE60A40 | Spectra RMS Circuit Breaker Rating Plug

Description

• Brand: GE
• Full Model Number: SRPE60A40
• Lifecycle Status: Legacy / replacement-part market
• Core Function: Interchangeable rating plug for GE Spectra RMS circuit breakers
• Top 3 Technical Specs: 60 A sensor frame; 40 A rating; 118–501 A adjustable instantaneous trip range
• Stock & Condition: Physical stock and condition subject to RFQ confirmation
• Product Family: Spectra RMS
• Component Type: Circuit breaker rating plug
• Frame: SE / 60 A sensor frame
• Nominal Rating: 40 A

GE documentation lists SRPE60A40 as the 40 A rating plug used with a 60 A Spectra RMS sensor/frame. A GE aftermarket catalog also specifies a 118–501 A adjustable instantaneous trip range for this rating plug.

Obsolescence & Supply Chain Deep Dive

A failed or missing SRPE60A40 does not normally justify replacing an entire Spectra RMS breaker assembly. This part is the interchangeable rating plug that establishes the breaker’s continuous-current setting, making it relevant when a maintenance team needs to restore an existing breaker configuration without disturbing the complete frame and installation. GE catalogs identify SRPE60A40 as the 40 A rating plug for the 60 A frame family. For procurement teams, the main risk is not identifying a similarly named GE component; it is ordering the wrong rating plug for the installed sensor/frame.

The TCO advantage comes from replacing only the required rating component instead of purchasing and commissioning a complete breaker. GE’s published Spectra documentation shows SRPE60A40 within the interchangeable rating-plug system, with the 40 A plug associated with a 60 A frame and defined trip characteristics. A like-for-like replacement can therefore avoid panel rewiring, breaker replacement labor, coordination-study disruption, and additional shutdown work. For an operating MCC or distribution panel, that narrower intervention can materially reduce outage exposure (availability of legacy rating plugs should still be confirmed against physical warehouse inventory before emergency release).

Compatibility & Replacement Matrix

Field Traps — Watch Out

Frame mismatch: belongs to the 60 A sensor/frame family. GE’s catalog places alongside SRPE60A50 and SRPE60A60 under the 60 A frame, while SRPE30A-series plugs belong to the 30 A frame family.

Do not confuse rating with frame size: “60A” in refers to the sensor/frame family, while “40” identifies the rating-plug ampere value. The installed breaker and coordination documentation should be checked before PO approval.

Trip-setting issue: GE documentation associates with a 40 A rating and an instantaneous trip range of approximately 118–501 A. Replacing it with another ampere rating can change protection behavior and may require verification of the protection coordination study.

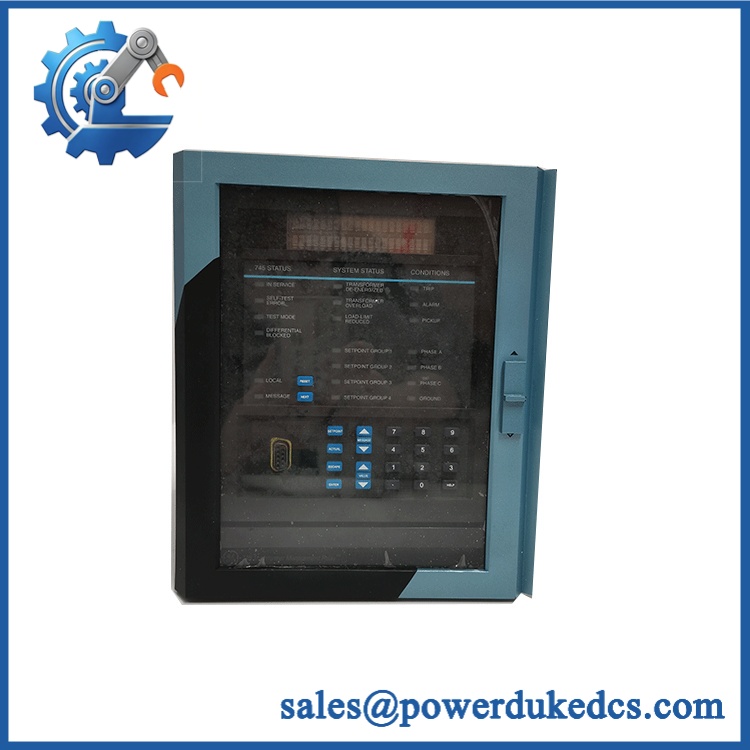

GE SRPE60A40

Quality Assurance & Testing SOP

The should be treated as a protection-system component during incoming inspection rather than as a generic molded-plastic accessory.

• OEM anti-counterfeit visual inspection: Check GE identification, model marking, molding quality, terminal interfaces, mounting features, and signs of unauthorized modification.
• Part-number reconciliation: Confirm the exact marking and distinguish it from SRPE60A35, SRPE60A45, SRPE60A50, and SRPE60A60.
• Mechanical inspection: Verify locking/mating features and inspect for cracks, deformation, contamination, oxidation, or damaged interfaces.
• Rating verification: Confirm the 60 A frame association and 40 A rating against the product marking and applicable GE documentation.
• Power-on functional testing: Where the test setup permits, install the plug in a compatible test breaker and verify correct breaker operation under controlled conditions.
• Trip-function verification: Check the relevant thermal/electronic trip behavior using calibrated circuit-breaker test equipment rather than relying only on visual inspection.
• Protection verification: Confirm the installed configuration corresponds to the site’s approved protection settings and coordination requirements.
• I/O load testing: For the complete breaker assembly, verify auxiliary and trip outputs under controlled test conditions; the itself is a rating-plug component rather than an electronic I/O module.
• Final QA record: Photograph the part number, physical condition, and installed-test configuration and retain the inspection record with the shipment documentation.

The GE aftermarket catalog identifies the as a 40 A rating plug and lists it within the Spectra breaker accessory system.

Procurement & Lifecycle FAQ

Is the GE genuinely in stock, and what is the cutoff for emergency shipping?

Physical warehouse quantity should be confirmed before PO release. Because this is an older Spectra RMS component, request confirmation of the exact marking, available quantity, condition, and emergency shipping cutoff rather than relying on a generic SRPE60A listing.

How do you verify the condition and authenticity of an obsolete or surplus ?

The verification process should include OEM marking inspection, dimensional and mechanical checks, connector/interface inspection, and comparison against the GE catalog configuration. Functional verification is preferable when a compatible breaker test arrangement is available. GE documentation identifies as a 40 A rating plug for the 60 A frame family.

Are there any compatibility issues I should warn my engineers about before issuing the PO?

Yes. The critical check is the installed breaker sensor/frame. is associated with the 60 A frame, while other SRPE plugs use different frame families or current ratings. The breaker nameplate, existing rating plug, single-line diagram, and protection coordination documentation should all agree before replacement.

Is a true drop-in replacement?

For a compatible GE Spectra RMS breaker configured for the 60 A frame, the exact is intended as an interchangeable rating plug. It should not be treated as universally interchangeable across different breaker frames or rating configurations.

What are the warranty and return terms?

The quotation and PI should state the warranty duration and RMA conditions for the specific unit supplied. For new-surplus or previously installed rating plugs, the commercial terms should distinguish physical condition from functional warranty coverage and define the inspection window for returns.
