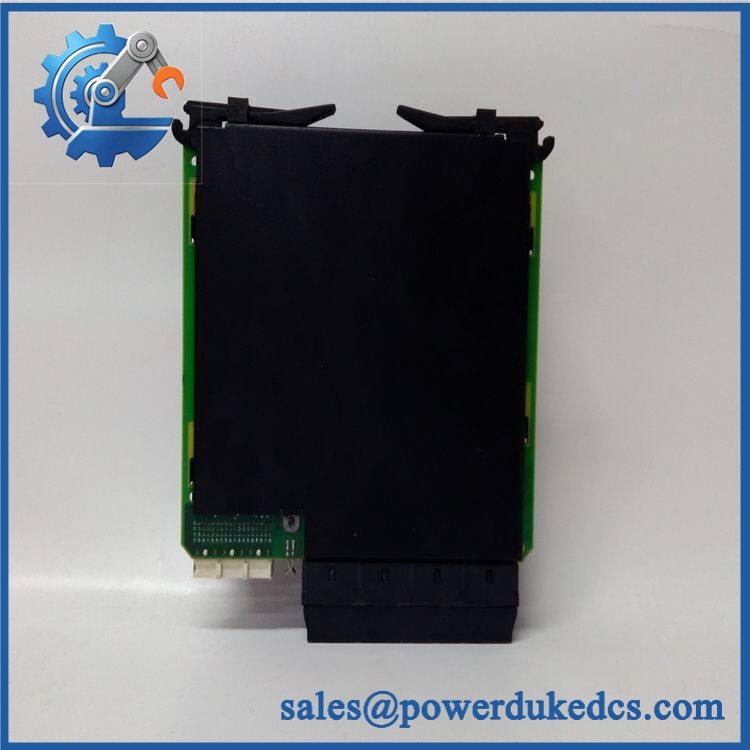

GE UR6PH | Digital I/O Module for Multilin Universal Relays

• Brand: GE Multilin
• Full Model Number: UR6PH / UR-6PH
• System/Series Family: GE Multilin UR Series Universal Relays
• Core Function: Digital input and relay-output interface for UR protection and control systems
• Top 3 Hardcore Specs: 4 digital inputs; 6 Form-A outputs; optional current and voltage metering capability
• Stock Status: New Surplus — final stock condition to be confirmed

The UR-6PH is documented as a GE Multilin UR Series digital I/O module. Available technical references consistently identify 4 digital inputs and 6 Form-A outputs, with the outputs supporting current metering and optional voltage metering functions.

Technical Product Introduction

When a Universal Relay loses a discrete I/O module, the problem can sit directly between the protection logic and the physical switchgear. Breaker indications, interlocks, trip-related auxiliary circuits, and other hardwired signals may no longer reach the relay correctly. The GE UR6PH is an I/O module for the UR Series architecture, providing 4 digital inputs and 6 Form-A outputs for field signal acquisition and relay control. A UAE utility procurement document also identifies UR-6PH specifically as an I/O card for GE generator and GCB protection relays, confirming its use in protection-panel maintenance.

The usable capacity is straightforward: 10 discrete I/O points in one module, split between four inputs and six normally-open Form-A outputs. The output circuits can also support current metering, with voltage metering available as an option according to published product references. For a maintenance team, that matters more than an arbitrary processing-speed figure that is not specified for this module. Replacing the affected UR I/O card can preserve the existing relay application and field wiring arrangement, provided the replacement matches the original hardware configuration and host relay requirements. —Verify the exact hardware revision before installation.

Application Scenarios & Field Realities

• Generator breaker control panels: On a generator protection system, several discrete points can be tied to breaker position, control permissives, lockout indications, and auxiliary contacts. The UR6PH’s four digital inputs provide dedicated points for these field states, while its six Form-A outputs can be assigned to required control or alarm functions within the host UR relay.
• Substation protection cabinets: A protection engineer dealing with an aging UR installation may encounter an I/O card failure long before the complete relay becomes unusable. In that situation, retaining the existing UR architecture can avoid unnecessary changes to panel wiring, relay logic documentation, and commissioning records.
• Industrial motor protection: Where external contactors, permissive relays, or shutdown circuits must be represented in the protection logic, the UR6PH can provide the required discrete interface. The important check is the original FlexLogic assignment; replacing the physical module does not by itself validate the engineering configuration.
• Transformer and switchgear automation: Six Form-A outputs are useful when several independent relay-driven circuits are required from one UR I/O position. This can include breaker-control interfaces, annunciation, auxiliary relay commands, or other discrete outputs—subject to the specific relay application and approved control philosophy.

Migration, Compatibility & Installation Traps

Replacement Matrix

GE Multilin UR modules use different I/O configurations, so the part number must be matched rather than selected only by physical appearance. For example, UR-6RH and UR-6TH have different input/output arrangements from UR-6PH. The UR-6PH itself is identified with 6 Form-A outputs and 4 digital inputs, making that configuration the key replacement criterion.

Field Traps — Watch Out

Wrong I/O configuration: A module can fit the same general UR architecture yet provide a different contact arrangement. Before removing the failed card, record every terminal assignment and compare it against the replacement module documentation.

FlexLogic assignment error: The physical input and output points must correspond to the existing engineering configuration. After installation, force each permitted test input individually and verify the associated status indication and logic response. Do not assume a successful power-up proves correct field operation.

Control-circuit exposure: Where the Form-A outputs are connected to breaker or trip-related circuits, isolate the relevant control circuits under the site’s approved switching procedure before testing. A relay output test can have a real field consequence.

Revision mismatch: Some online references describe UR-family hardware and firmware relationships differently. For an existing installation, verify the relay CPU, firmware revision, module revision, and application before committing the replacement to service. This is particularly important when replacing an older UR installation rather than an identical in-service card.

GE UR6PH

Quality Assurance SOP

For surplus UR6PH inventory, pre-shipment inspection should establish that the unit is the correct GE Multilin module and that its I/O functions operate correctly in a suitable test environment.

• OEM anti-counterfeit visual inspection: Check GE/Multilin markings, model identification, label format, connector construction, board condition, and hardware revision markings against the expected UR6PH configuration.
• Mechanical inspection: Examine the enclosure, PCB, connector pins, mounting surfaces, and terminal interfaces for cracks, corrosion, contamination, bent contacts, or evidence of unauthorized rework.
• Power-on self-test (POST): Install the module in an appropriate UR host arrangement and observe startup behavior, including the host relay’s ERR/RUN LED indications where applicable.
• Module recognition verification: Confirm that the host relay identifies the installed I/O module without an unexpected configuration or hardware alarm.
• Digital input verification: Apply controlled contact-state changes to all 4 digital inputs and record the corresponding state transitions.
• Output verification: Exercise all 6 Form-A outputs individually and confirm correct relay contact operation at the designated terminals.
• Metering-related verification: Where the specific unit and test setup support the relevant metering functions, verify the expected current/voltage measurement behavior rather than assuming every configuration has identical options.
• Communication handshake verification: Confirm that the UR host exchanges I/O status correctly with the installed module and that commanded output states are reflected in the relay application.
• Final QC record: Record model number, hardware revision, serial or identification information where available, inspection results, functional-test results, and shipment condition.

The most defensible identification for is therefore the UR Series digital I/O module with 4 digital inputs and 6 Form-A outputs. Published references also associate the module with optional voltage/current metering, while utility procurement records identify UR-6PH as an I/O card used with generator and circuit-breaker protection relays.
