GE V7768-320001 350-9301007768-320001 C | Module

Description

Unboxing & Physical Snapshot

• Brand & Model: GE Fanuc Intelligent Platforms V7768-320001 (Order Code: 350-9301007768-320001 C)
• Product Type: 6U VMEbus Single Board Computer (SBC) for industrial embedded control applications.
• Approximate Physical Dimensions (W × H × D): Approximately 233 × 112 × 23 mm (9.2 × 4.4 × 0.9 in.) board size, excluding front panel hardware.
• Estimated Shipping Weight: Approximately 1.0–1.5 kg (2.2–3.3 lb) with protective packaging; final freight weight depends on anti-static packaging and shock protection.
• What’s in the Box:
  • GE V7768-320001 6U VME single-board computer
  • Front panel assembly with communication connectors
  • Retaining screws and mounting hardware (if included by supplier)
  • Factory labels and serial number identification
  • Anti-static ESD shielding bag
  • Product documentation when supplied with original packaging

Product Introduction

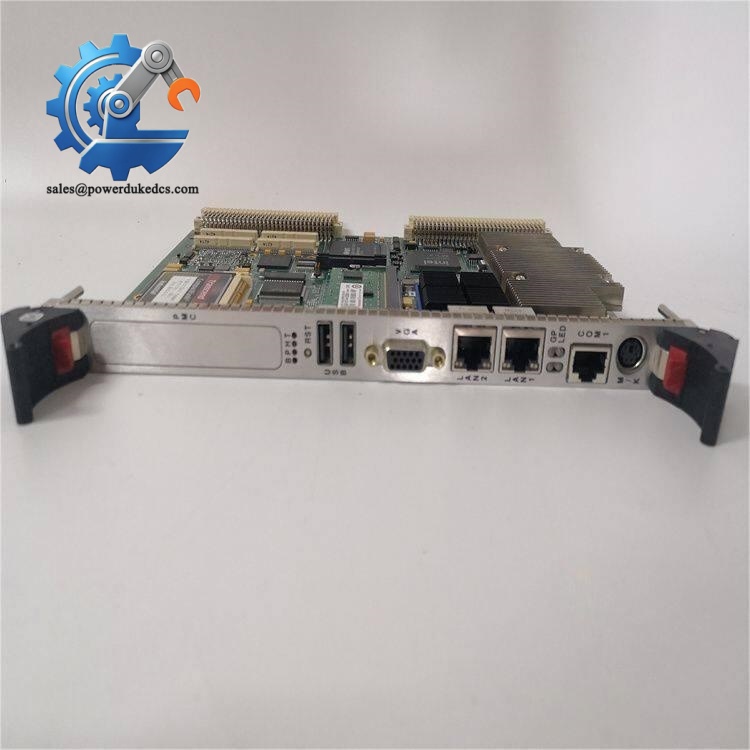

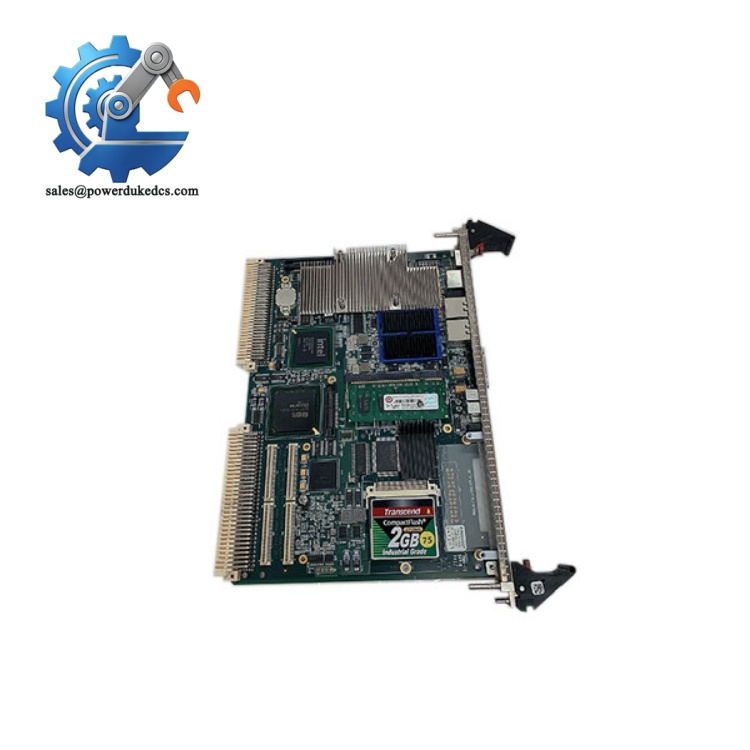

The V7768-320001 mounts directly into a 6U VME chassis backplane, acting as the embedded computing layer inside a larger industrial control architecture. The board slides into the card guide rails, engages the VME connector assembly, and relies on proper rack alignment for reliable electrical contact (a small mechanical offset can create intermittent faults during vibration testing).

This GE Fanuc V7768 platform was designed for embedded industrial computing where processor availability, deterministic I/O access, and long service life matter more than consumer-style specifications. The board includes front-panel interfaces, expansion capability through PMC architecture, and industrial temperature support suitable for demanding automation environments. Inspect the card edge connectors, ejector handles, and heat transfer surfaces before installation.

Core Technical Specifications

GE V7768-320001

Specifications are based on available family documentation and reseller technical references; verify exact revision against OEM records before replacement approval.

? Global Compliance & Industry Certifications

Expected regulatory approvals for this class of industrial computing hardware may include:

• CE Mark — confirms conformity with applicable European electrical and EMC requirements.
• UL/cUL Recognition or Listing — may apply depending on the exact hardware revision and system-level certification.
• IEC 61326 industrial EMC compliance — commonly referenced for industrial electronic equipment families.
• RoHS Compliance — production-date dependent.
• Marine approvals (DNV GL) — only applicable for specifically qualified configurations.

This module is typically installed inside a certified industrial enclosure rather than directly exposed to hazardous atmospheres. For hazardous-area installations, system certification depends on the complete cabinet design, including enclosure rating, purge systems, and approved associated equipment.

Verify specific lot certifications with OEM.

? Long-Term Storage & Asset Preservation Guide

Keep the -320001 inside its original ESD shielding bag during warehouse storage. The exposed VME connector fingers and PMC interface contacts are sensitive to contamination and electrostatic discharge.

Maintain storage humidity below 60% relative humidity. High moisture environments can accelerate oxidation on connector surfaces and degrade conformal coatings if the board revision includes protective coating (—a common concern in coastal plants and offshore warehouses).

Exercise caution with long-idle embedded computers. Before energizing a stored unit, inspect electrolytic capacitors, CompactFlash media, processor heatsink attachment, and board-mounted components for aging effects. Apply power in a controlled test rack first rather than installing directly into a production chassis.

Physical Installation Prerequisites

• Install the board only in a compatible 6U VME chassis with the correct backplane configuration.
• Confirm VME slot assignment requirements before insertion.
• Leave adequate chassis airflow clearance; maintain approximately 50 mm or greater airflow path clearance where cabinet design permits.
• Ensure card guides support the PCB edge evenly before engaging the ejector handles.
• Verify chassis grounding continuity between the rack frame, backplane, and protective earth.
• Inspect the VME connector alignment before applying insertion force.
• Secure the front panel screws to prevent movement caused by vibration.

Do not force the board into the rack. A misaligned connector can damage the VME pins or the board edge interface.

GE V7768-320001

Buyer’s FAQ (Logistics & Compliance Focus)

Q1. What HS Tariff Code is normally used when exporting this VME computer board?

A: Classification depends on the declared function and importing country’s interpretation. Industrial computer boards are often reviewed under HS categories related to electronic processing units or control equipment. Confirm the final HS code with your customs broker before shipment to avoid clearance delays.

Q2. Does the Country of Origin affect replacement approval?

A: Yes. The COO can affect import duties, government procurement requirements, and supplier qualification records. Request traceability documents, including serial number records and COO statements, when replacing installed automation assets.

Q3. Should this module ship with additional insurance?

A: Recommended. The PCB can survive normal handling, but impact damage may affect the VME connector, PMC expansion area, or solder joints without visible external damage. Use anti-static packaging, shock protection, and declared replacement value coverage.

Qes the include the latest firmware pre-loaded?

A: Not automatically. Firmware, BIOS revision, operating system image, and installed storage media depend on the specific inventory condition. Verify the firmware revision, CompactFlash contents, and approved software baseline before returning the module to service.
