GE WES5302-111 | WES5302 Field Controller Module for Turbine Control

Description

• Brand — GE
• Full Model Number — WES5302-111
• System/Series Family — WES5302
• Core Function — WES5302 system control module; exact board function to be confirmed against the installed system
• Top 3 Hardcore Specs — 24 VDC reported input; Modbus/Ethernet communication reported; WES5302-111 assembly identifier
• Stock Status — New Surplus; actual nameplate, physical condition, and packaging should be verified before shipment

Technical Product Introduction

A WES5302 cabinet failure leaves little room for part-number guesswork. The GE WES5302-111 appears in multiple industrial automation records under different functional descriptions, including field controller/master unit and other board-level roles. One source identifies it as a thermoelectric card, while another lists it as a power-drive board. Those conflicts are significant. The safest purchasing reference is the complete marking on the installed hardware, together with a photo of the connector side and cabinet position before replacement.

Several reseller records publish figures such as 24 VDC input, Modbus/Ethernet communications, 1 GB memory, and a wide operating-temperature range, but these values are not consistently supported across the available records. They should therefore be treated as reported specifications pending verification, not guaranteed OEM limits. For maintenance planning, the measurable advantage of holding the exact assembly is compatibility control: technicians can compare the part marking, hardware revision, interface arrangement, and installed configuration before disturbing an operating system. (That verification step is especially important on legacy controls where visually similar boards may serve different functions.)

Application Scenarios & Field Realities

• During turbine-control maintenance, the -111 can be handled as a system-specific spare rather than a generic PLC card. Before shutdown, record the existing cabinet position, terminal arrangement, board labels, and firmware information so the replacement decision is based on hardware identity as well as function.
• At plants operating legacy GE control cabinets, a spare becomes useful when the installed board is showing intermittent faults but the maintenance team cannot justify a full controller migration. Keeping a matching -111 available allows the failed assembly to be isolated first, while the existing application configuration remains under engineering control.
• Where communications are part of the fault path, technicians should verify the actual interface used by the installed system instead of assuming every -111 uses the same protocol set. Some public records report Modbus, Profibus, and Ethernet, while other descriptions provide no corresponding interface specification.
• For emergency spare inventory, store the module with its nameplate photograph, serial or revision information, incoming inspection record, and known system application. A single verified spare is more useful than a bin containing several boards with similar WES-series markings.

Migration Compatibility & Installation Traps

Field Traps — Watch Out

Function mismatch: Public descriptio are inconsistent. One record calls it a field controller/master unit, another calls it a thermoelectric card, and other records use power-drive or communication-board descriptions. Do not replace a board solely because the model number appears in a generic parts list. Match the physical board and cabinet location first.

Unverified electrical and communication data: A published 24 VDC input and Modbus/Ethernet specification appears in current reseller records, but those values are not independently corroborated by a consistent OEM document in the sources reviewed. Confirm terminal voltage, interface type, firmware revision, and communication settings from the installed system documentation before energizing the replacement.

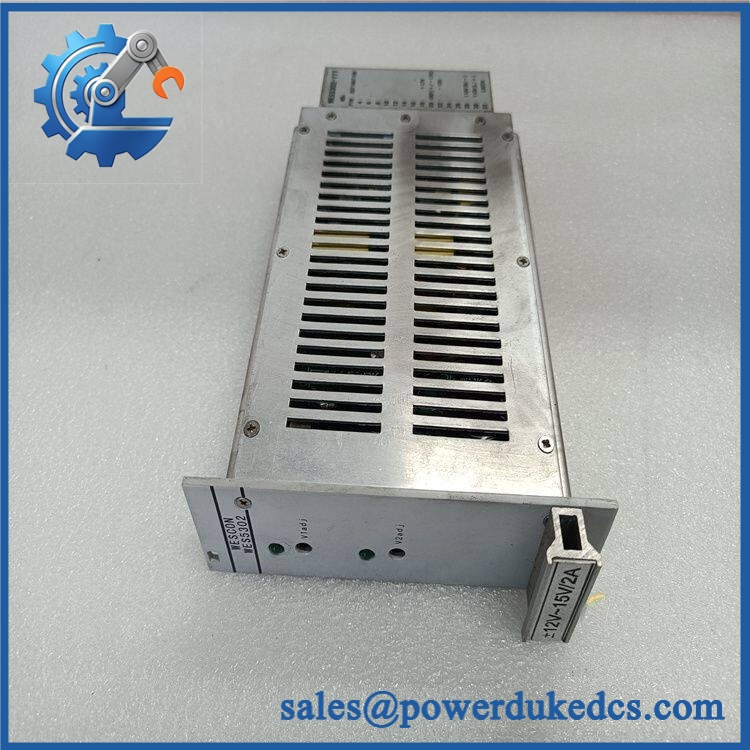

GE WES5302-111

Quality Assurance SOP

For a New Surp, the release process should focus on identity, physical condition, and documented functional checks:

• OEM anti-counterfeit visual inspection — Verify GE markings, co designation, label quality, board revision where visible, connectors, fasteners, PCB condition, and evidence of rework or relabeling.
• Power-on self-test (POST) — Use an approved test arrangement and record startup behavior, including available ERR/RUN or equivalent status indicators. Abnormal indications trigger further inspection.
• Communication handshake verification — Where a compatible test environment is available, confirm expected initialization and communication behavior using the interface actually supported by the tested hardware revision.
• Identity and traceability record — Photograph the nameplate and key board markings; record serial number, revision information, physical condition, and test date.
• Configuration review — Compare available firmware and configuration information with the intended replacement target. Do not overwrite site application data until the original configuration has been backed up.
• Final ESD and packing inspection — Protect connectors, use ESD-safe packaging, secure the board against mechanical movement, and document the packed condition before dispatch.

The QA release criterion is straightforward: correct part number, acceptable physical condition, documented test result, and traceable shipment record. Because public technical descripti are inconsistent, the physical unit and customer system documentation should take precedence over generic reseller specifications.
