- ABB HIEE405246R0002 UNS0867 A-P V2 | Field-tested Control Board For Generator Excitation Cabinets
Product Core Brief
- Model: UNS0867 A-P V2 (Part Code: HIEE405246R0002)
- Brand: ABB
- Series: UNS Series Excitation & Power Control Components
- Core Function: Collect field digital signals and transmit data for generator excitation regulation
- Type: Extended I/O Circuit Board (HKWIS)
- Key Specs: Multi-channel digital input, DIN rack mounted, backplane connector interface
- Condition: New Surplus, no field installation traces
⚠️ Officially discontinued ABB hardware, limited remaining inventory
Product Introduction
Key Technical Specifications
| Details | |
|---|---|
| Full Model | UNS0867 A-P V2 |
| Alternative Order Code | HIEE405246R0002 |
| Manufacturer | ABB |
| Official Designation | Extended I/O HKWIS |
| Application | Generator Excitation Control Cabinet |
| Mounting Method | Rack backplane plug-in installation |
| Supply Voltage | 24 V DC |
| Operating Temperature | 0 °C ~ +55 °C |
| Storage Temperature | -40 °C ~ +70 °C |
| Ambient Humidity | 5% ~ 95% non-condensing |
| External Interfaces | Two group signal connectors + backplane edge connector |
| Compliance Standard | IEC 61000 EMC industrial immunity requirements |

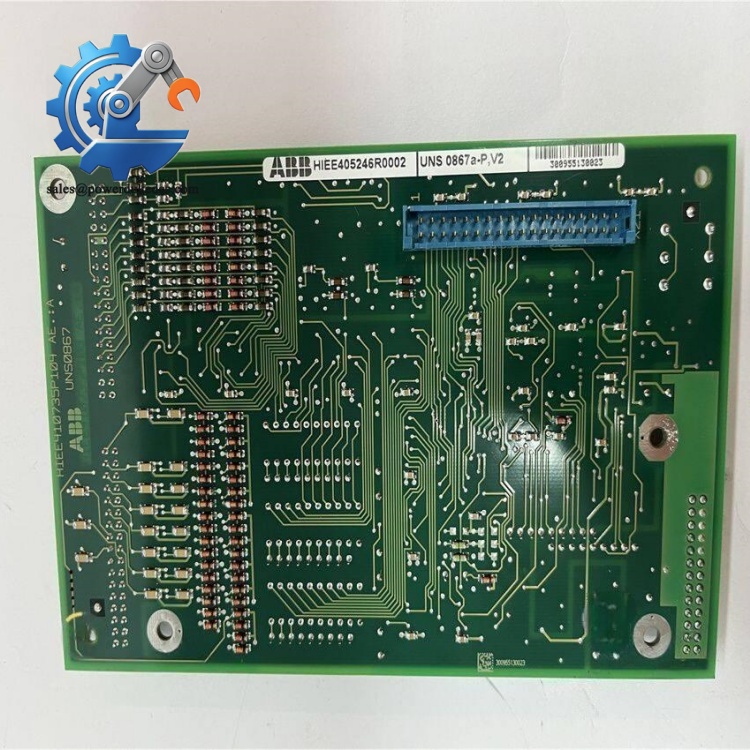

ABB HIEE405246R0002 UNS0867 A-P V2
Installation & Configuration Guide
Phase 1: Pre-Installation (Estimated time:12 minutes)
- Coordinate operation staff to confirm generator maintenance shutdown status
- Lock out excitation cabinet power source and implement safety isolation
- Maintain power-off status for at least 5 minutes to discharge internal circuit capacitors
- ESD wrist strap and anti-static mat
- PH1 cross screwdriver
- Digital multimeter
- Mobile phone for photo documentation
- Adhesive labels for marking signal wiring
- Photograph all connector wiring arrangement before disassembly
- Record jumper positions on the existing UNS0867 board
- Save photos of original component serial numbers for maintenance archives
Phase 2: Removal of faulty board (Estimated time:15 minutes)
- Label each signal connector before unplugging to avoid reversed wiring
- Unplug external signal terminal connectors gently, do not pull wires directly
- Release locking clips on both sides of the circuit board
- Pull the PCB vertically outward away from the rack backplane. Avoid twisting the edge connector pins.
- Inspect backplane connector pins for oxidation or bending. Clear dust with dry compressed air if required.
⚠️ Capture photos of all jumper configurations on the defective PCB before removal.
Phase 3: Install new UNS0867 A-P V2 board (Estimated time:18 minutes)
- Wear ESD protection before removing the new board from anti-static packaging
- Verify full model UNS0867 A-P V2 matches required spare part and revision V2
- Recreate identical jumper settings by referencing photos taken from the old unit
- Align PCB edge connector with rack backplane, push steadily until side clips lock
- Reconnect external signal connectors following pre-marked labels
- Confirm all connectors are fully seated without loose terminals
[ ] Jumper configuration consistent with original settings
[ ] All signal connectors firmly inserted
[ ] PCB fully locked into rack slot
[ ] No loose debris left inside cabinet

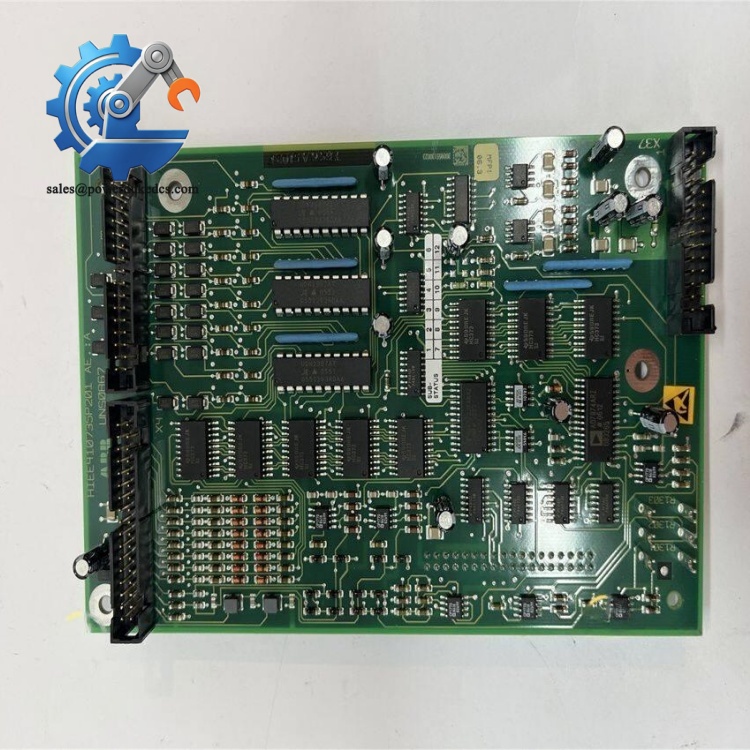

ABB HIEE405246R0002 UNS0867 A-P V2
Phase 4: Power-On & Functional Testing (Estimated time:35 minutes)
- Measure cabinet 24 V DC supply voltage, confirm no short-circuit condition
- Restore cabinet control power supply first; do not restore main excitation power immediately
- Observe board indicator LEDs, record steady or flashing status
- Connect engineering maintenance software to verify signal channel acquisition
- Simulate field switching signals one by one and check corresponding feedback status
- Keep continuous running status for minimum 30 minutes and monitor for intermittent signal loss
- Record new board serial number and replacement time into equipment maintenance log
- No signal feedback: Check jumper address setting and connector pin contact
- Random signal fluctuation: Inspect cabinet grounding and cable shielding wiring
- LED abnormal alarm: Confirm board revision matches system software version
Frequently Asked Questions (FAQ)
A: Physical size and connectors stay compatible, but signal logic differences exist between revisions. Document original jumper layout strictly. Partial channel mismatch may appear without configuration replication.
A: This PCB targets ABB static excitation systems for synchronous generators, widely deployed in thermal power, hydropower and distributed power generation projects. It cannot be used for general-purpose PLC racks.
A: Available stock belongs to New Surplus inventory. No prior installation on generator equipment. Every board passes continuity and channel signal testing before shipment. Refurbished units will be marked separately if available.
A: Hot swap is not supported. Removing the board under live power will lose excitation feedback signals, potentially triggering generator trip protection. Always execute full power isolation.
A: 12-month warranty valid from shipment date. Damage caused by incorrect wiring, surge voltage or ESD impact will not be covered. We can provide testing photos upon customer request before order confirmation.
A: Software upgrade is not mandatory in most sites. Verify all digital input channels can be read normally after installation. Contact technical support if persistent communication errors occur.
A: Limited stock on hand. Goods can be dispatched within 1–3 working days after confirmation. ABB has ceased manufacturing, stock cannot be replenished once current inventory sells out.
