Honeywell CC-MCAR01 | Industrial DCS Cabinet Component

2. Unboxing & Physical Snapshot

Brand & Model: Honeywell CC-MCAR01
Product Family: Honeywell Experion PKS Series-C Control Hardware
Product Type: Carrier Channel Assembly (CCA) used for mounting Series-C I/O modules and associated IOTA hardware.
Related Part Numbers: 51403892-100 / 51403884-100 references are associated with CC-MCAR01 assemblies.
Approximate Physical Dimensions: Approximately 178 × 114 × 64 mm (7.0 × 4.5 × 2.5 in) depending on installed configuration.
Mounting Style: Series-C cabinet mounting assembly for IOTA and I/O module installation.
Integrated Features:
- 24 VDC power bus connection
- 24 VDC common/return bus
- Field wiring shield landing bus
Mechanical Construction: Metal carrier frame with module mounting interface.
What’s in the Box:
- Honeywell CC-MCAR01 Carrier Channel Assembly
- Mounting hardware when supplied
- Protective packaging
- Installation documentation when available

3. Product Introduction

The Honeywell CC-MCAR01 forms the mechanical backbone of the Series-C I/O cabinet arrangement. It provides the mounting structure and electrical distribution path required for Series-C IOTA assemblies and associated field interface hardware. The assembly supports organized cabinet layouts where power distribution, grounding, and module retention must remain consistent across multiple installed channels (which is critical during large process control expansions).

This is a passive infrastructure component, but it directly affects system availability. Inspect the mounting rails, power bus contacts, shield termination points, and retaining hardware before installation. A damaged carrier can create alignment problems between I/O modules and terminal assemblies, leading to extended troubleshooting during commissioning.

4. Core Technical Specifications

Parameter	Value
Manufacturer	Honeywell
Model Number	CC-MCAR01
Product Type	Series-C Carrier Channel Assembly
System Platform	Experion PKS
Associated Hardware	Series-C IOTA and I/O modules
Power Bus	24 VDC distribution bus
Grounding Feature	Field wiring shield landing bus
Mounting Method	Cabinet carrier installation
Module Support	Multiple Series-C channel positions
Construction	Industrial metal carrier assembly
Approximate Dimensions	178 × 114 × 64 mm
Weight	Approximately 1 kg
Operating Environment	Industrial control cabinet
Cooling Method	Cabinet convection airflow

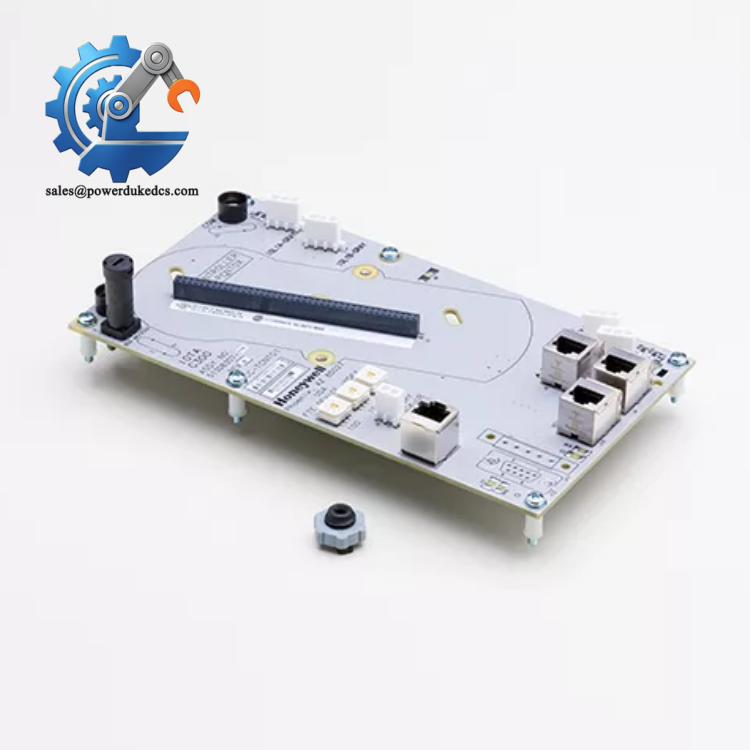

Honeywell CC-MCAR01

(turn0search4, turn0search5)
