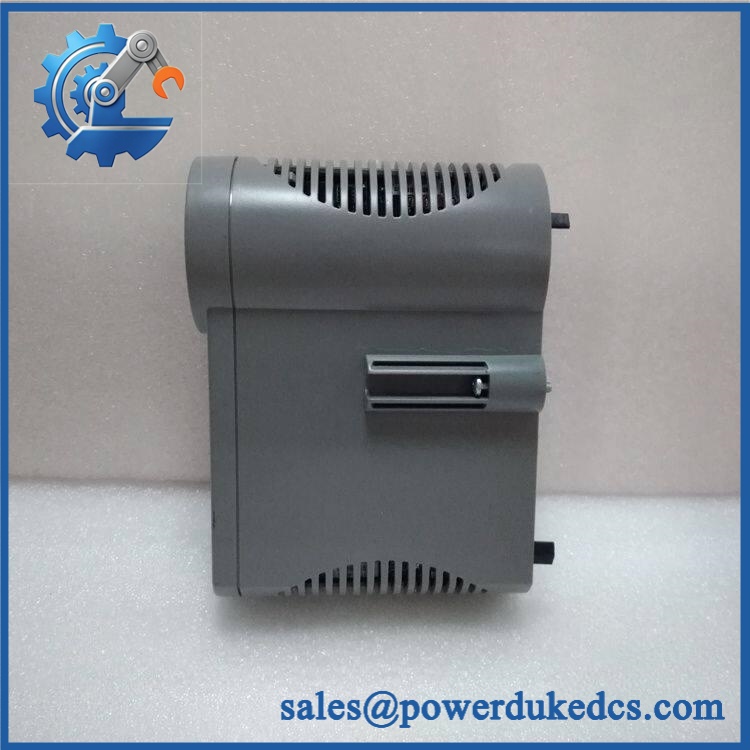

HONEYWELL CC-PAIH51 | Original Series-C Automation Module

Description

• Model: HONEYWELL CC-PAIH51
• Brand: Honeywell
• Series: Experion PKS Series-C I/O
• Part Type: High-Level Analog Input Module with HART
• Core Function: Acquires 4–20 mA process signals from field transmitters and transfers measured values plus HART device information into Honeywell control systems.
• Primary Use: Process measurement loops, transmitter monitoring, DCS control cabinets, and C300 controller architectures.
• Key Specifications:
  • 16 single-ended analog input channels
  • 4–20 mA current input only
  • HART communication support
  • 16-bit A/D conversion
  • 50 ms input scan rate
  • Optional redundant installation architecture

Product Introduction

Inside a Honeywell Experion PKS Series-C I/O cabinet, the CC-PAIH51 functions as a dedicated analog acquisition module between field transmitters and the control processor. It receives high-level current signals from two-wire or self-powered transmitters, performs analog-to-digital conversion, and provides HART-enabled device communication for configuration and diagnostics.

In field deployments, this module is commonly installed in refinery, chemical, and power applications where transmitter availability directly affects process visibility. A replacement requires more than matching the part number; verify the IOTA type, chassis configuration, Experion release, and HART database settings (incorrect I/O configuration can appear as a hardware fault).

Core Technical Specifications

HONEYWELL CC-PAIH51

Application Scenarios & Pain Points

A failed analog input module can hide real process conditions because operators may lose accurate transmitter feedback before a complete control-system failure occurs.

• Refinery pressure monitoring: The CC-PAIH51 handles transmitter inputs for pressure loops where incorrect readings can affect process decisions.
• Chemical process control: HART communication allows maintenance teams to retrieve transmitter diagnostics without disconnecting field devices.
• Power generation systems: Used for temperature, flow, and pressure measurement points requiring stable DCS integration.
• Oil and gas facilities: Supports remote instrumentation where transmitter health information reduces unnecessary field inspections.
• Legacy Experion PKS installations: Existing Series-C cabinets often maintain spare I/O modules to avoid extended shutdown periods.

Common Error Codes & Diagnostic Symptoms

Symptom/Code: I/O Module Fault LED Active
→ Diagnosis: Possible internal module failure, rack communication issue, or incompatible configuration.
→ Action: Check Experion diagnostics and replace the CC-PAIH51 if module hardware failure is confirmed.

Symptom/Code: Channel Reading Fixed at 0 mA or 20 mA
→ Diagnosis: Possible transmitter loop fault, wiring issue, incorrect scaling, or damaged input channel.
→ Action: Verify field loop current and replace the module if the channel electronics fail.

Symptom/Code: HART Device Communication Lost
→ Diagnosis: Possible HART communication configuration error, field wiring issue, or module communication failure.
→ Action: Verify transmitter settings and replace the module after external causes are eliminated.

Cross-Reference & Lifecycle Migration

• Related Models:
  • CC-PAIH01 — earlier Series-C HART analog input module family.
  • — newer Series-C HART analog input implementation.
  • — related HART analog input hardware.
• Compatibility Notes:
  • Verify Experion PKS release compatibility.
  • Confirm IOTA model:
    • CC-TAIX51 for non-redundant installation.
    • CC-TAIX61 for redundant installation.
  • Confirm HART device configuration database.
• Firmware Requirements:
  The module firmware must match the supported Experion PKS release. Series-C modules introduced with later releases may not operate correctly on older software versions.
• Lifecycle Status: Active / Mature Installed Base Component
  • Widely used in Honeywell Experion PKS systems.
  • Recommended spare strategy: maintain tested modules for critical analog loops.
• Migration Strategy:
  Migration to newer Honeywell I/O platforms requires I/O database conversion, cabinet engineering review, and loop validation.

Field Engineer’s Tech Notes (Anti-Pitfall Guide)

1. Do not assume every 4–20 mA module is interchangeable.
   The CC- is designed specifically for HART-enabled analog input applications. A standard analog input card may not provide the required transmitter diagnostics.
2. Check the IOTA before installation.
   The terminal assembly determines whether the module is installed in a redundant or non-redundant configuration (wrong IOTA selection can prevent proper commissioning).

Strict QA & Testing SOP

Step 1 — Incoming Inspection

• Verify Honeywell CC- identification label.
• Record serial number and hardware revision.
• Inspect PCB housing, connectors, and terminal interface.
• Photograph received condition.

Step 2 — Electrical Inspection

• Check module connector condition.
• Verify no corrosion, contamination, or physical damage.
• Confirm power interface condition.

Step 3 — Rack Recognition Test

• Install into compatible Honeywell Series-C test rack.
• Confirm module identification.
• Verify diagnostic status.

Step 4 — Analog Channel Testing

• Apply simulated 4–20 mA signals.
• Verify channel scaling.
• Check HART communication response.
• Confirm stable readings across channels.

Step 5 — Packaging Control

• Use ESD shielding packaging.
• Protect terminal connectors.
• Add shock protection for international shipment.

Test videos are available for verified inspection records.

Buyer’s FAQ (Dynamic Q&A)

Q: Can the Honeywell CC- be hot-swapped?

A: Do not assume live replacement is allowed. Follow Honeywell Series-C I/O maintenance procedures and confirm the cabinet redundancy design before removal.

Q: How do I verify an original CC-?

A: Check the Honeywell label, complete model number, hardware revision, connector condition, and functional test documentation.

Q: Does the CC- include HART configuration software?

A: No. The module provides HART-capable signal acquisition. Device configuration and engineering data are managed through the Honeywell Experion PKS environment.

Q: What warranty information should be requested?

A: Confirm warranty duration, 4–20 mA channel testing, HART communication verification, inspection records, and whether the unit is New Original, New Surplus, or refurbished. For process I/O modules, traceable testing is important before installation.
