1. Honeywell CC-PAIX02 | Original Series-C Control Asset

2. Unboxing & Physical Snapshot

• Model & Brand: Honeywell CC-PAIX02 High-Level Analog Input Module for the Experion Series-C I/O system. The module accepts voltage and current signals from transmitters and sensing devices.
• Approximate Physical Dimensions: Approximately 1.5 × 5.0 × 4.4 in. (38 × 127 × 112 mm) for the electronic module assembly (carrier/IOTA dimensions vary by installation arrangement).
• Estimated Shipping Weight: Approximately 0.75 lb (0.34 kg) for the module assembly; packaged shipment weight depends on terminal assembly and protective materials.
• What’s in the Box:
  • Honeywell CC-PAIX02 analog input module
  • Anti-static (ESD) shielding bag
  • Protective foam insert
  • Module identification label
  • Installation documentation when supplied
  • Configuration records when available

3. Product Introduction

The Honeywell CC-PAIX02 mounts into the Experion Series-C I/O architecture through a compatible IOTA assembly, creating a controlled interface between field transmitters and the process control system. The module handles high-level analog signals from voltage and current devices, including standard 4–20 mA loops (through the appropriate input configuration). Proper seating of the module connector and IOTA interface is essential because loose engagement can create intermittent process measurement faults (which can be difficult to separate from transmitter issues).

This module is typically maintained as a controlled DCS spare in process plants where instrument availability affects production continuity. Inspect the connector blades, module housing, and retaining mechanism before installation. The electronics are compact, but the signal path is mission-critical; contamination or incorrect I/O mapping can result in inaccurate process values.

4. Core Technical Specifications

Parameter	Value
Manufacturer	Honeywell
Model Number	CC-PAIX02
Product Type	High-Level Analog Input Module
System Platform	Honeywell Experion Series-C I/O
Input Type	Voltage and current inputs
Input Channels	16 channels
Channel Configuration	12 single-ended / 4 differential
Supported Inputs	0–5 V, 1–5 V, 0.4–2 V, 4–20 mA (through 250 Ω)
A/D Converter Resolution	16 bits
Input Scan Rate	50 ms
Voltage Input Impedance	Greater than 10 MΩ
Common Mode Rejection Ratio	70 dB
Channel-to-Channel Crosstalk	-60 dB
Normal Mode Filter	Single-pole RC, -3 dB at 6.5 Hz
Maximum Differential Input	±30 V without damage
Hardware Accuracy	±0.075% full scale at 23.5°C ±2°C
Accuracy Over Temperature	±0.15% full scale from 0°C to 60°C
Field Power Conditioning	Individually protected current limiting circuits
Power Supply	Series-C I/O system supply
Heat Dissipation	Low-power I/O electronics; cabinet airflow required

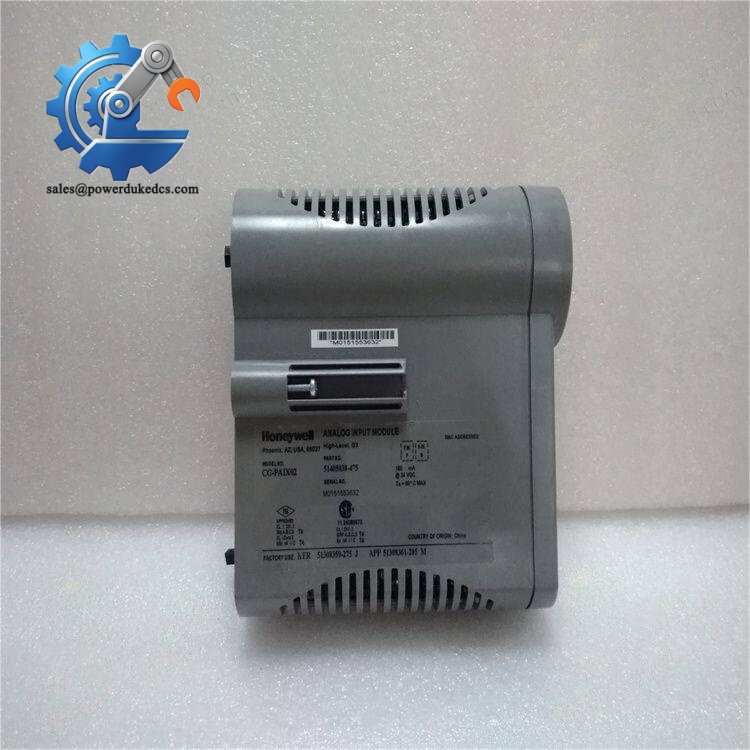

Honeywell CC-PAIX02

5. Global Compliance & Industry Certifications

Expected regulatory approvals and compliance considerations for the Honeywell CC-PAIX02 include:

• CE Mark compliance for applicable Experion Series-C installations
• UL/cUL recognition where applicable to the complete control system assembly
• Class I Division 2 non-incendive interface capability when installed within the approved system configuration
• ATEX/IECEx suitability when used with certified hazardous-area assemblies
• RoHS compliance depending on manufacturing revision
• Marine approvals such as DNV GL only when included in a qualified marine system package

The Class I Division 2 non-incendive capability is important because it helps prevent the module interface from becoming an ignition source in designated hazardous environments. Certification depends on the complete installation arrangement, including carrier, wiring, enclosure, and field devices.

Verify specific lot certifications with OEM.

6. Long-Term Storage & Asset Preservation Guide

Keep the CC-PAIX02 inside its original anti-static (ESD) shielding bag until deployment. The connector contacts should remain covered because oxidation on contact surfaces can create unreliable analog readings after long storage periods.

Maintain warehouse humidity below 60% RH and avoid areas with corrosive gases, battery fumes, or conductive dust. Analog modules are sensitive to contamination that may not be visible during routine inspection.

Perform a pre-installation inspection before releasing the spare. Record the serial number, manufacturing date code, firmware revision if applicable, and packaging condition. Verify that the module matches the Experion configuration database before field installation.

7. Physical Installation Prerequisites

• Install only in the approved Honeywell Series-C I/O chassis and compatible IOTA assembly.
• Confirm correct module position before insertion.
• Use ESD protection during handling.
• Verify the I/O terminal assembly matches the required redundancy and wiring configuration.
• Maintain approximately 50 mm clearance above and below cabinet ventilation paths where practical.
• Confirm cabinet grounding and protective earth bonding.
• Inspect connector alignment, retaining clips, and terminal connections before startup.

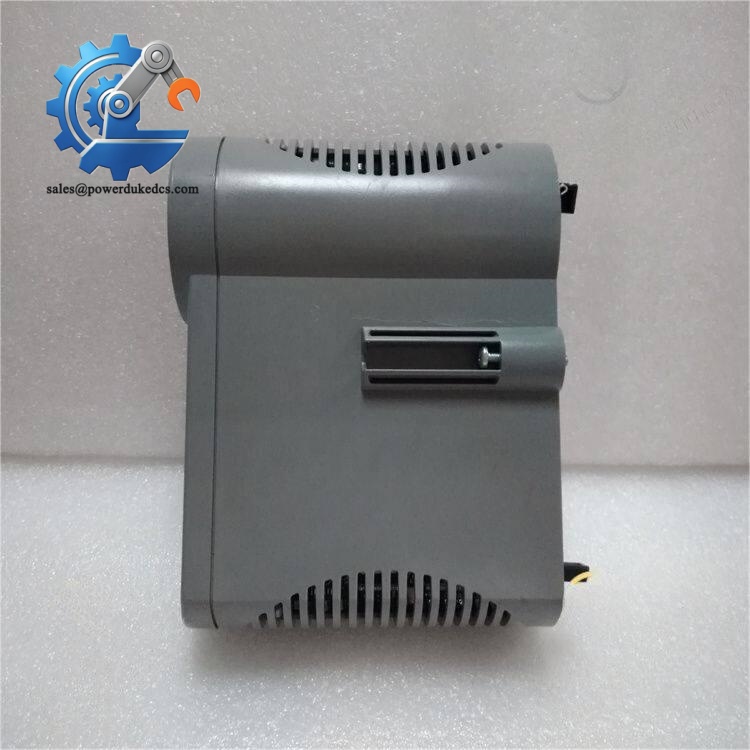

  Honeywell CC-PAIX02

8. Buyer’s FAQ (Logistics & Compliance Focus)

Q: What HS Tariff Code is commonly used for the Honeywell CC-PAIX02?

A: Industrial analog input modules are commonly evaluated under HS classifications covering electrical control equipment, often within HS 8537 categories. The final Harmonized System classification depends on the importing country’s customs interpretation and declared function. Confirm the tariff code with your customs broker before export.

Q: Does Country of Origin affect acceptance of this DCS spare?

A: Yes. Country of Origin affects customs clearance, procurement documentation, and regulated plant asset records. Verify the COO against the module label, supplier documentation, and commercial invoice before shipment.

Q: Should shipping insurance be included for the CC-PAIX02?

A: Recommended. Analog input modules support critical measurement loops, and replacement delays can affect plant operations. Use ESD packaging, moisture protection, and insured freight with documented receiving inspection.

Q: Does the CC-PAIX02 include the latest firmware pre-loaded?

A: Do not assume it does. The module hardware revision and Experion system software compatibility must be verified before commissioning. Configuration, database assignment, and approved firmware levels depend on the installed control system version.
