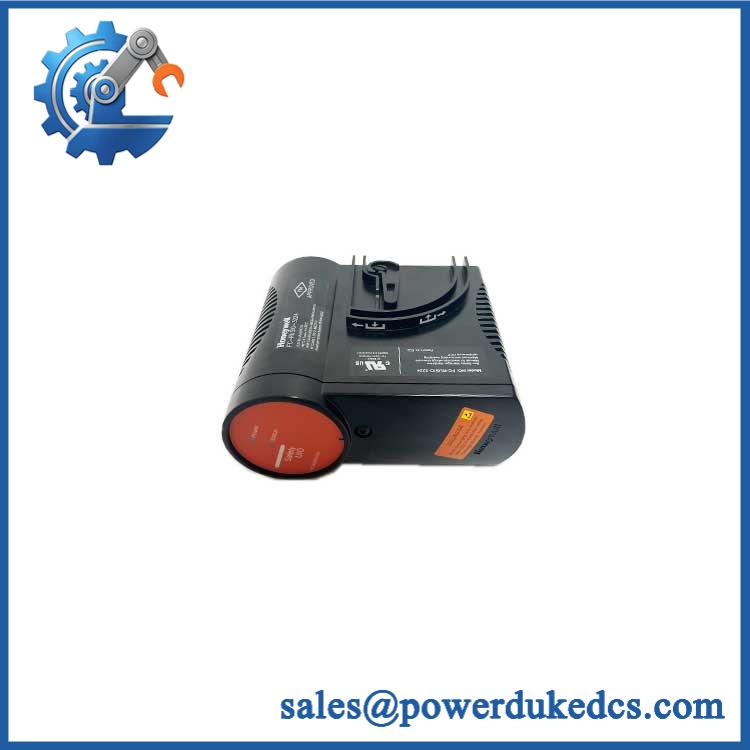

HONEYWELL FC-RUSIO-3224 | New Surplus Universal Safe I/O Module for Honeywell Safety Systems

At-A-Glance Executive Brief

Model: HONEYWELL FC-RUSIO-3224
Brand: Honeywell
Series: Safety Manager / Experion PKS Universal Marshalling Solution
Part Type: Remote Universal Safe I/O Module
Core Function: Provides flexible safety signal processing by allowing each channel to be configured for analog or digital safety field applications.
Key Specs: 32 configurable I/O channels, 24 VDC power supply, SIL 3 safety capability, AI/AO/DI/DO support, HART communication support, -40°C to +70°C operating temperature range.
Typical Use: Safety Instrumented Systems (SIS), Emergency Shutdown (ESD), Fire & Gas systems, and critical process automation applications.

Product Introduction

A safety shutdown loop failure can create serious operational risks when field signals cannot reach the safety controller. The HONEYWELL FC-RUSIO-3224 is a Remote Universal Safe I/O module designed for Honeywell Safety Manager systems, providing configurable signal interfaces for safety-critical applications.

Installed as part of Honeywell’s Universal Marshalling Solution architecture, the FC-RUSIO-3224 allows individual channels to be configured as digital input, digital output, analog input, or analog output. This flexibility reduces the need for multiple dedicated I/O card types in SIS cabinets (particularly useful during expansion projects and legacy system upgrades).

Core Technical Specifications

Parameter	Value
Manufacturer	Honeywell
Model	FC-RUSIO-3224
Product Type	Remote Universal Safe I/O Module
System Platform	Safety Manager / Experion PKS
Number of Channels	32 Universal I/O Channels
Channel Configuration	AI / AO / DI / DO
Safety Integrity Level	SIL 3 (IEC 61508)
Supply Voltage	24 VDC (-15% to +30%)
Communication	Safety Manager Network Interface
HART Support	Available for applicable analog configurations
Operating Temperature	-40°C to +70°C
Internal Module Temperature	-40°C to +90°C
Storage Temperature	-40°C to +85°C
Humidity Range	10% to 95% RH, non-condensing
Dimensions	Approx. 145 × 165.1 × 72.4 mm
Weight	Approx. 0.66 kg
Mounting	Dedicated I/O carrier / IOTA assembly

HONEYWELL FC-RUSIO-3224

Application Scenarios & Pain Points

During an offshore platform shutdown test, engineers depend on universal safety I/O modules to ensure emergency signals from field devices are correctly transmitted to the SIS controller.

In oil and gas processing facilities, the FC-RUSIO-3224 supports distributed safety applications where multiple field signals must be handled through a compact safety architecture.

For chemical plants operating continuous production units, a failed safety I/O channel can interrupt monitoring of critical pressure, temperature, or valve shutdown signals.

With a functioning FC-RUSIO-3224, safety logic receives accurate field information and maintains protective functions. Without it, affected safety loops may generate alarms or enter a fail-safe state.

At remote installations exposed to temperatures above 50°C, cabinet airflow, power stability, and I/O carrier connections should be checked before replacing the module.

? Common Error Codes & Diagnostic Symptoms

Symptom/Code: Universal I/O Channel Fault / Channel Diagnostic Alarm
→ Diagnosis: Internal channel circuitry, field wiring, or configured signal mismatch may prevent correct signal processing.
→ Action: Verify channel configuration and field connections, then replace the FC-RUSIO-3224 if module failure is confirmed.

Symptom/Code: Safety Manager Communication Loss / RIO Offline
→ Diagnosis: Communication link failure, power issue, or internal processor fault may prevent the safety controller from recognizing the remote I/O module.
→ Action: Check network and power connections, then replace the module if communication remains unavailable.

Symptom/Code: Multiple Safety Loops Showing Fault Status
→ Diagnosis: A module-level failure may affect multiple configured safety channels simultaneously.
→ Action: Replace the module and perform Safety Builder configuration verification.

Cross-Reference & Lifecycle Migration

Original Model: HONEYWELL FC-RUSIO-3224
Related System: Honeywell Safety Manager / Universal Marshalling Solution.
Compatible IOTA: FC-IOTA-(N)R24 for Universal Safety I/O applications.
Configuration Compatibility:
- Verify Safety Builder project configuration before replacement.
- Confirm channel assignments and safety parameters.
- Check IOTA type and field wiring arrangement.
Firmware Requirement: Firmware compatibility should be verified between the FC-RUSIO-3224 and the Safety Manager controller before commissioning.
Lifecycle Status: Active / Supported
- The FC-RUSIO-3224 is part of Honeywell’s current safety I/O architecture.
- Spare inventory remains important for SIL-rated systems where unexpected downtime is unacceptable.

Field Engineer’s Tech Notes (Anti-Pitfall Guide)

Do not connect field wiring before checking channel configuration.
The same channel can be configured for different signal types. A mismatch between wiring and software configuration can create false diagnostics or damage field interfaces.
Verify redundancy requirements before replacement.
Safety applications may require the correct redundant arrangement, power configuration, and controller communication setup to maintain the intended SIL performance level.

Strict QA & Testing SOP

A professional inspection process for the HONEYWELL FC-RUSIO-3224 includes:

Inbound Verification
- Confirm Honeywell label and exact model number.
- Check serial number and hardware revision information.
Physical Inspection
- Inspect housing, connectors, PCB condition, and mounting interface.
- Check for corrosion, contamination, or mechanical damage.
Power-Up Testing
- Install module on a compatible Honeywell test carrier.
- Verify power status and diagnostic indicators.
I/O Channel Testing
- Simulate analog input signals.
- Verify digital input/output operation.
- Test configured channel response.
Safety Communication Testing
- Confirm communication with Safety Manager controller.
- Verify diagnostic reporting and module recognition.
Configuration Verification
- Load a compatible configuration.
- Confirm channel mapping and safety parameters.
Final Packaging
- Apply anti-static protection.
- Use shock-resistant packaging for international shipment.

Test videos and inspection records are available for qualified purchasing requests.

Buyer’s FAQ

Q1: What is the Honeywell FC-RUSIO-3224 mainly used for?

A: It is a Remote Universal Safe I/O module used in Honeywell Safety Manager systems for safety-critical field signal processing.

Q2: How many I/O channels does the FC-RUSIO-3224 provide?

A: The module provides 32 configurable universal I/O channels that can be assigned according to application requirements.

Q3: Can this module replace a standard Experion PKS I/O card?

A: No. It is designed specifically for safety applications and must match the Safety Manager architecture, IOTA type, and safety configuration.

Q4: What should be checked before ordering a replacement?

A: Confirm the exact model number, IOTA compatibility, Safety Manager version, channel configuration, firmware compatibility, test documentation, and warranty conditions before purchase.
