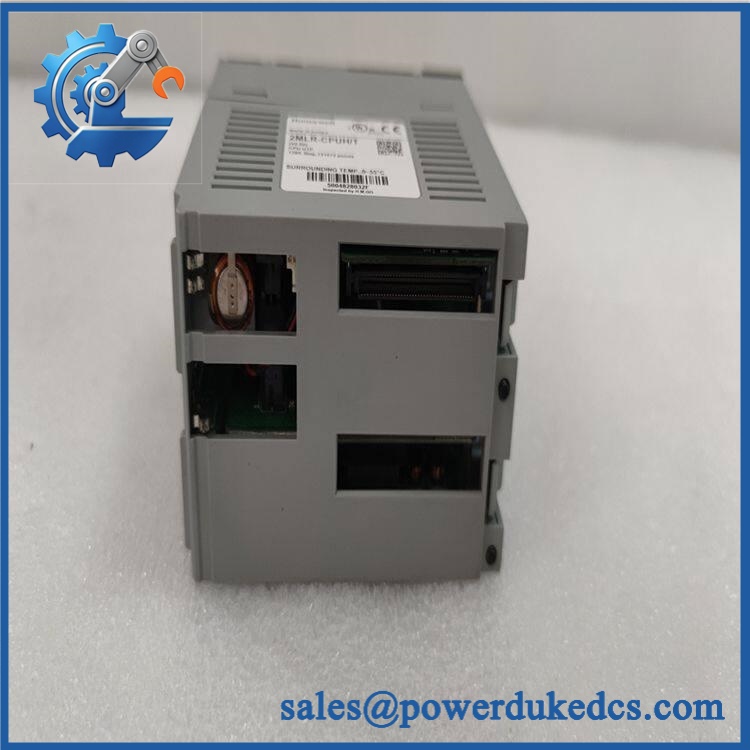

HONEYWELL 2MLR-CPUH | OEM PLC CPU Replacement Unit

Description

• Model: HONEYWELL 2MLR-CPUH
• Series: Honeywell MasterLogic-200R PLC
• Part Type: High Performance CPU Module
• Core Function: Executes PLC application programs, manages I/O scanning, and coordinates communication tasks within Honeywell MasterLogic control systems.
• Key Specifications:
  • High-performance PLC processor module.
  • Supports Honeywell MasterLogic programming environment.
  • Designed for industrial sequencing, machine control, and process automation.
  • Supports communication with expansion I/O and network modules.
  • Suitable for redundant and high-availability automation architectures depending on configuration.
• Typical Procurement Category: PLC processor spare, Honeywell MasterLogic CPU replacement, industrial controller inventory.

Product Introduction

Installed in the Honeywell MasterLogic PLC rack, the 2MLR-CPUH CPU module acts as the central processing unit responsible for executing control logic, managing memory operations, and coordinating communication with connected I/O modules. A processor failure can stop machine sequences, disable remote I/O updates, or interrupt communication with supervisory systems. In field deployments, technicians verify the power supply, rack backplane, communication modules, and application backup before replacing the CPU (a processor fault is not always caused by the processor itself).

The 2MLR-CPUH is designed for Honeywell MasterLogic-200R PLC systems requiring higher processing capability for complex automation tasks. The module handles PLC program execution, diagnostics, and data exchange within the control architecture. Correct firmware revision, project backup, and communication settings must be confirmed before commissioning a replacement unit.

Core Technical Specifications

HONEYWELL 2MLR-CPUH

Application Scenarios & Pain Points

At manufacturing plants with automated production lines, the 2MLR-CPUH executes machine sequences, interlocks, and process control routines where unexpected CPU failure can stop production.

For water treatment and utility systems, PLC processor availability supports continuous operation of pumps, valves, and monitoring equipment.

During control system expansion projects, maintaining compatible CPU spares allows engineers to extend existing MasterLogic PLC installations without redesigning the entire control structure.

Inside industrial machinery cabinets, the CPU module coordinates local I/O processing and communication with operator interfaces.

Without a functioning PLC CPU, connected input and output modules cannot execute the programmed control sequence.

Common Error Codes & Diagnostic Symptoms

Symptom/Code: CPU RUN LED OFF / STOP LED ON
→ Diagnosis: Possible application stop, corrupted program memory, configuration mismatch, or CPU hardware issue.
→ Action: Check PLC diagnostics, reload application if required, and replace CPU if hardware failure is confirmed.

Symptom/Code: Watchdog Fault / CPU System Error
→ Diagnosis: Possible processor overload, memory corruption, or internal CPU malfunction.
→ Action: Review program execution status and replace the CPU module if the fault persists.

Symptom/Code: Communication Loss With I/O Modules
→ Diagnosis: Possible backplane communication failure, rack connection issue, or CPU interface fault.
→ Action: Inspect rack connections and replace the CPU module when necessary.

Cross-Reference & Lifecycle Migration

• Compatible Platform:
  • Honeywell MasterLogic-200R PLC systems.
• Related Models:
  • 2MLR-CPUH-F series variants.
  • Honeywell MasterLogic CPU module family.
• Replacement Considerations:
  • Verify CPU firmware version.
  • Confirm PLC project compatibility.
  • Backup application program before replacement.
  • Check rack and power supply compatibility.
  • Confirm communication module settings.
• Firmware Requirement:
  A replacement CPU may require firmware matching and PLC application download before operation. The correct project file and parameter backup are required for restoration.
• Lifecycle Status: Legacy / Active Support Dependent.
  • Maintain tested spare CPUs for production-critical PLC systems.
  • Store program backups and revision information with each spare.

Field Engineer’s Tech Notes (Anti-Pitfall Guide)

1. Do not replace a PLC CPU without securing the application backup first.
   The replacement hardware does not automatically contain the machine control program.
2. Check rack power quality before installing another CPU.
   Voltage instability can damage replacement processors and create repeated failures.
3. Avoid handling the backplane connector directly.
   Finger contamination or ESD exposure can affect communication reliability.

Strict QA & Testing SOP

Step 1 — Incoming Inspection

• Verify Honeywell label and 2MLR-CPUH marking.
• Record serial number and hardware revision.
• Photograph module condition.

Step 2 — Physical Examination

• Inspect rack connector pins.
• Check enclosure condition.
• Verify status LEDs and labels.

Step 3 — Electrical Inspection

• Apply compatible PLC rack power.
• Verify startup behavior.
• Check CPU diagnostics.

Step 4 — Functional Testing

• Install in MasterLogic test rack.
• Load compatible firmware.
• Download test PLC application.
• Verify program execution.
• Confirm communication functions.

Step 5 — Packaging Control

• Use ESD protective packaging.
• Protect backplane connector.
• Include inspection documentation.

Test videos are available for verification procedures when required.

Buyer’s FAQ (Dynamic Q&A)

Q: Can the Honeywell 2MLR-CPUH be replaced while the PLC system is powered?

A: Follow the approved Honeywell MasterLogic maintenance procedure. Power isolation is normally required before removing CPU hardware.

Q: How can I verify an original 2MLR-CPUH module?

A: Confirm the Honeywell label, exact model number, hardware revision, serial information, connector condition, and functional test report.

Q: Does this CPU module include the PLC application program?

A: No. The CPU hardware executes the application, but the user program and configuration must be restored from the engineering backup.

Q: What should be checked before ordering this CPU spare?

A: Confirm MasterLogic PLC model, firmware revision, rack configuration, application backup availability, test status, and warranty conditions.

Procurement Note: The Honeywell 2MLR-CPUH should be managed as a controlled PLC spare. Store the CPU together with application backups, firmware records, rack configuration details, and inspection reports to reduce recovery time after controller failure.
