Description
- ICS Triplex T9451 | OEM Traceable Safety Spare
Unboxing & Physical Snapshot
- Model & Brand: ICS Triplex T9451
- Product Type: Digital Output Module
- Application: AADvance safety controller digital output module used for switching field devices such as valves, actuators, alarms, and relays. The T9451 provides 8 output channels and supports safety applications requiring IEC 61508 SIL capability within the approved system architecture.
- Approximate Physical Dimensions (W × H × D):
- Width: approximately 38–45 mm
- Height: approximately 163–180 mm
- Depth: approximately 120 mm
- Mounting: AADvance controller module format
- Estimated Shipping Weight: Approximately 0.5–1.0 kg including ESD packaging and protective transport materials.
- What’s in the Box:

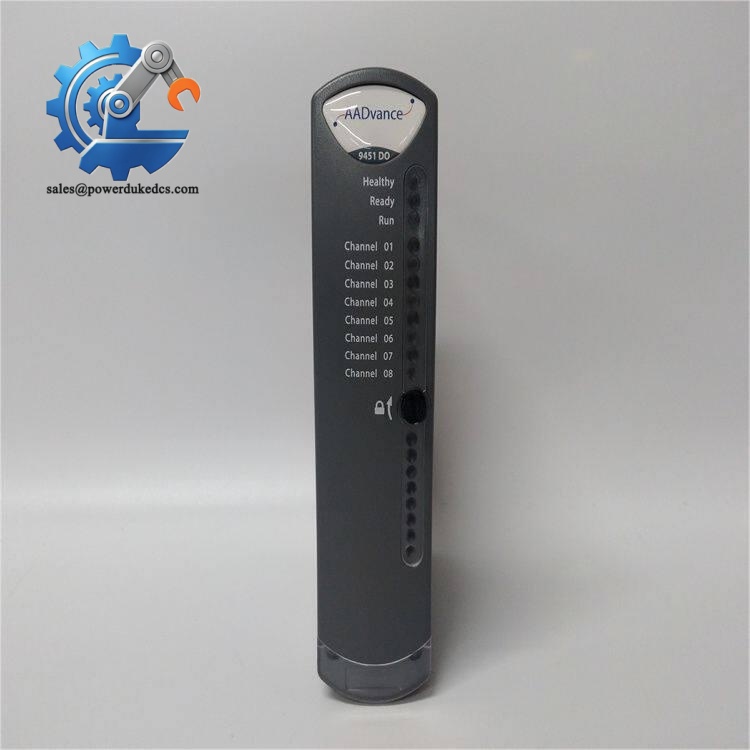

- ICS Triplex T9451 Digital Output Module
- Front status indicator section

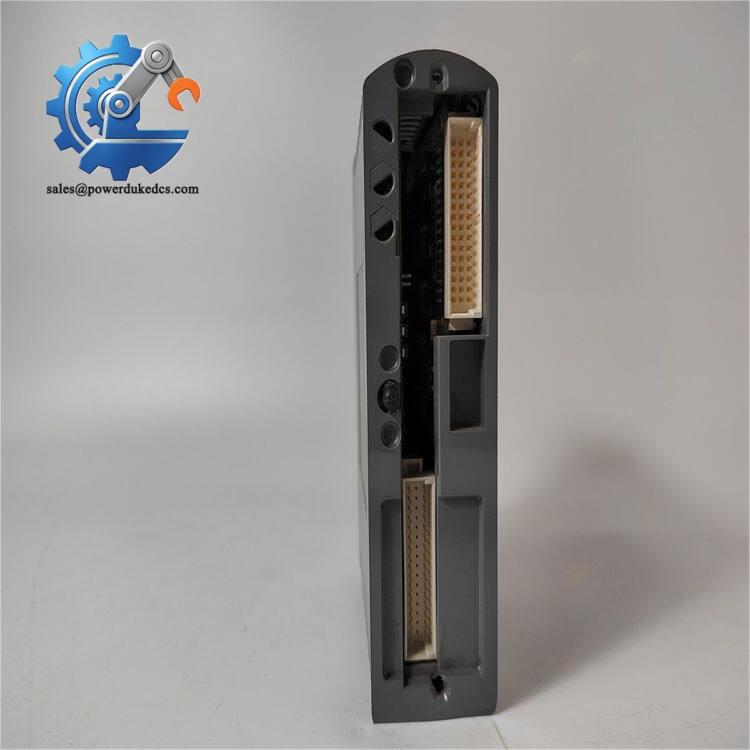

- Backplane connector interface
- Terminal assembly interface compatibility
- Anti-static (ESD) shielding bag
- Protective foam packaging
- Documentation when supplied with controlled inventory
Product Introduction
The T9451 installs into the ICS Triplex AADvance controller assembly as a safety-related output interface between the controller logic and external field equipment. It occupies a dedicated I/O position and provides controlled 24 VDC switching functions through eight output channels. Each channel includes monitoring functions for voltage and load conditions, supporting applications where unexpected output behavior must be detected. (This matters for shutdown circuits, actuator commands, and other protective functions.)
Handle this module as a safety lifecycle component. Replacement requires verification of I/O configuration, controller database settings, firmware compatibility, and site validation records. Inspect the terminal interface, connector contacts, module casing, and status indicators before installation. A physically matching spare may still require engineering approval before being returned to service.
Core Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ICS Triplex / Rockwell Automation |
| Model Number | T9451 |
| Product Type | Digital Output Module |
| System Platform | AADvance Safety Controller |
| Output Channels | 8 channels |
| Output Voltage | 24 VDC nominal |
| Operating Field Voltage | 18–32 VDC |
| Maximum Output Voltage | Up to 32 VDC per channel |
| Output Current | Up to 1 A per channel (configuration dependent) |
| Continuous Channel Current | Typically 0.5–1 A depending on application configuration |
| Output Protection | Short circuit, reverse current, and line monitoring functions |
| Channel Isolation | Approximately ±1.5 kVDC withstand |
| Safety Integrity Level | IEC 61508 SIL 3 within approved architecture |
| Safety Configuration | 1oo1D / 1oo2D configurations |
| Self-Test Interval | Less than 30 minutes |
| Module Supply | Redundant 24 VDC |
| Backplane Voltage Range | 18–32 VDC |
| Power Dissipation | Approximately 3 W |
| Heat Dissipation | Approximately 10.2 BTU/hr |
| Mounting Method | AADvance controller rack |
| Cooling Method | Cabinet convection / forced-air cooling |
ICS Triplex T9451
Global Compliance & Industry Certifications
Expected compliance considerations for the ICS Triplex include:
- CE Mark for applicable EMC and electrical safety requirements when installed within the certified AADvance system.
- IEC 61508 SIL capability when used as part of the validated safety controller architecture.
- UL/cUL Listed or Recognized status depending on the final equipment assembly.
- ATEX/IECEx consideration when integrated into a complete hazardous-area safety system.
- Marine approvals such as DNV GL where installed within approved offshore or vessel control systems.
IEC 61508 SIL certification is important because digital output modules directly control final elements such as shutdown valves and alarms. The certification depends on the complete safety system design, including approved hardware, software configuration, and maintenance procedures.
Verify specific lot certifications with OEM.
Long-Term Storage & Asset Preservation Guide
- Keep the inside the original anti-static (ESD) shielding bag. Protect the backplane connector and terminal interface from oxidation during extended storage.
- Maintain warehouse humidity below 60% RH. Moisture exposure can affect connector plating and create intermittent field output faults after installation.
- Inspect stored modules every 12–24 months. Record serial numbers, firmware information where available, and packaging condition. Check the front indicators and enclosure surfaces before deployment.
Do not store safety modules loose on metal shelving. Use individual ESD protection.
Physical Installation Prerequisites
- Install only into a compatible ICS Triplex AADvance controller rack.
- Verify module slot assignment and application configuration before power-up.
- Maintain cabinet airflow for heat removal. Leave approximately 50 mm clearance above and below the rack assembly where cabinet design permits.
- Confirm redundant 24 VDC supply availability.
- Ensure protective earth bonding is correctly completed.
- Use ESD protection during handling.
- Verify field wiring, output load ratings, terminal assembly compatibility, and safety validation documentation before commissioning.
ICS Triplex T9451
Buyer’s FAQ (Logistics & Compliance Focus)
Q: What HS Tariff Code is commonly reviewed for the ICS Triplex ?
A: Industrial digital output modules are commonly evaluated under HS 8537 or related electrical control equipment classifications. Some suppliers reference HS 853890 classifications for control system modules, but final determination depends on the importing country’s customs rules and declared function.
Q: Does Country of Origin (COO) documentation matter for the ?
A: Yes. COO records support customs clearance, supplier qualification, and safety asset traceability. Maintain the OEM label, serial number, purchase documentation, and incoming inspection records.
Q: Should shipping insurance be purchased for the ICS Triplex ?
A: Yes. This module contains safety-rated output electronics and precision monitoring circuits. Use ESD packaging, moisture protection, shock protection, and declared-value freight coverage.
Q: Does the ICS Triplex include the latest firmware pre-loaded?
A: Firmware availability depends on the specific production unit and system revision. The module hardware includes required internal electronics, but the installed controller configuration must be verified against the existing AADvance application before replacement.
