1. ICS Triplex T8110B | Industrial Safety Control Asset

2. Unboxing & Physical Snapshot

• Brand & Model: ICS Triplex T8110B
• Product Type: Trusted TMR Processor module for the ICS Triplex Trusted Safety System. This processor module provides triple modular redundant processing for safety instrumented applications such as emergency shutdown (ESD), fire and gas systems, turbine control, and critical process monitoring.
• Physical Dimensions (Approximate W × H × D):
  • Approximately 93 × 266 × 303 mm
  • Rack-mounted Trusted system module format
• Estimated Shipping Weight: Approximately 3–4 kg including ESD packaging, protective foam, and export carton.
• What’s in the Box:
  • ICS Triplex T8110B Trusted TMR Processor module
  • Front-panel assembly with status indicators
  • Processor chassis interface connectors
  • Protective ESD shielding bag
  • Shock-resistant packaging
  • Product documentation when supplied

3. Product Introduction

Structure C — Compliance Hook

The ICS Triplex T8110B exists for applications where processor failure cannot be treated as a normal equipment fault. This Trusted TMR Processor uses a triple modular redundant architecture with three synchronized processor channels and hardware voting to maintain control operation when a single processor channel experiences a fault.

Installed within a Trusted T8100 chassis, the module becomes the primary execution unit for safety logic, diagnostics, and communication with Trusted I/O modules through the redundant Inter-Module Bus. Inspect the front-panel indicators, chassis connectors, and module locking mechanism before installation (—which is critical for SIS cabinets operating continuously for years).

4. Core Technical Specifications

Parameter	Value
Manufacturer	ICS Triplex
Model Number	T8110B
Product Type	Trusted TMR Processor
System Platform	Trusted TMR Safety System
Chassis Compatibility	T8100 chassis
Processor Architecture	Triple Modular Redundant processor design
Processor Clock	100 MHz
Operating Voltage	20 to 32 VDC
Maximum Load	80 W
Heat Dissipation	Approximately 80 W
DRAM	16 MB EDO 60 ns
EPROM	512 KB
Flash Memory	2 MB
NVRAM	128 KB
SOE Buffer	1,000 events; transferred to 4,000-event CI buffer
I/O Interface	Triple redundant Inter-Module Bus
Retained Variable Storage	4 KB
Operating Temperature	0°C to 60°C
Storage Temperature	-25°C to 70°C
Humidity Range	10% to 95% RH, non-condensing
Weight	Approximately 2.94 kg
Mounting Method	Trusted chassis rack mounting

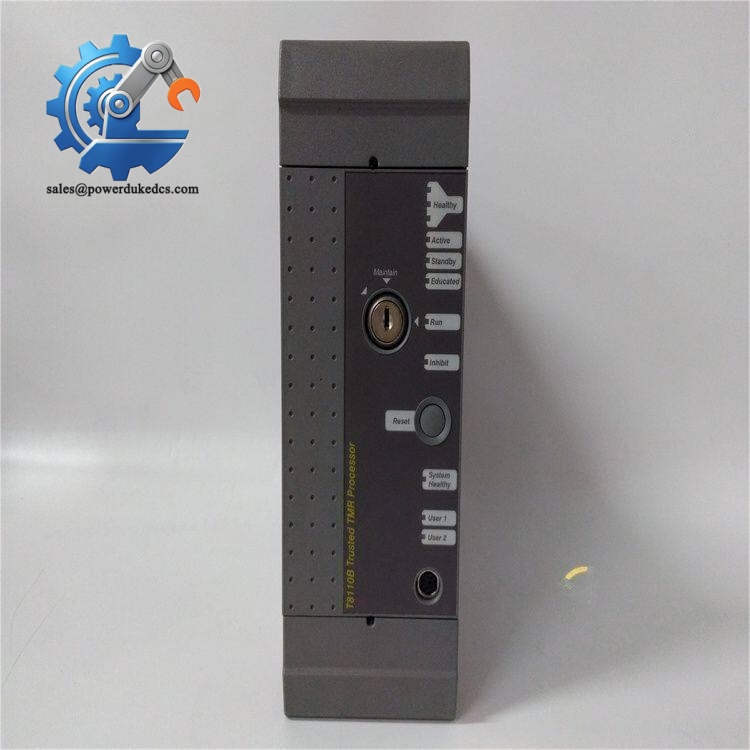

ICS Triplex T8110B

Specifications may vary slightly by documentation revision and system configuration. Verify installed firmware, chassis assignment, and application configuration before replacing an active safety controller.

5. ? Global Compliance & Industry Certifications

Expected regulatory approvals and compliance considerations for the ICS Triplex T8110B include:

• CE Mark — expected for compliant system installations meeting European EMC and safety requirements.
• UL/cUL Listed or Recognized Components — applicable depending on the complete safety system certification.
• IEC 61508 Safety Integrity Compliance — the Trusted platform is designed for safety-related applications requiring high diagnostic coverage and fault tolerance.
• ATEX/IECEx Compatibility — not a standalone hazardous-area certified device; suitability depends on the complete certified enclosure and installation method.
• Marine Approvals (DNV GL) — applicable only when installed within approved marine automation systems.

For safety systems, certification is not only a documentation requirement. A verified SIL-rated architecture helps ensure that dangerous process conditions are detected and controlled according to the approved safety design.

Verify specific lot certifications with OEM.

6. ? Long-Term Storage & Asset Preservation Guide

Store the ICS Triplex T8110B in its original anti-static (ESD) shielding bag. The chassis connector pins, front-panel electronics, and internal PCB assemblies require protection from contamination.

Maintain warehouse humidity below 60% RH where possible. Moisture exposure can affect connector surfaces and reduce electrical contact reliability during commissioning.

Inspect stored modules every 12–24 months:

• Check front-panel indicators and mechanical locking hardware.
• Inspect chassis connectors for oxidation.
• Verify labels, serial numbers, and firmware records.
• Examine the enclosure for dust accumulation or corrosion.

Do not open sealed packaging in cold environments immediately after transport. Allow the module to stabilize to room temperature first to avoid condensation damage.

7. Physical Installation Prerequisites

• Install only in the designated ICS Triplex Trusted T8100 chassis.
• Confirm chassis power availability before insertion.
• Ensure correct module slot assignment according to the approved system configuration.
• Maintain cabinet airflow for heat removal.
• Leave at least 50 mm clearance around ventilation paths where cabinet design permits.
• Verify protective earth grounding continuity.
• Secure module retaining hardware before operation.

The T8110B is part of a safety-rated control architecture. Do not exchange modules between systems without verifying the application configuration and safety documentation.

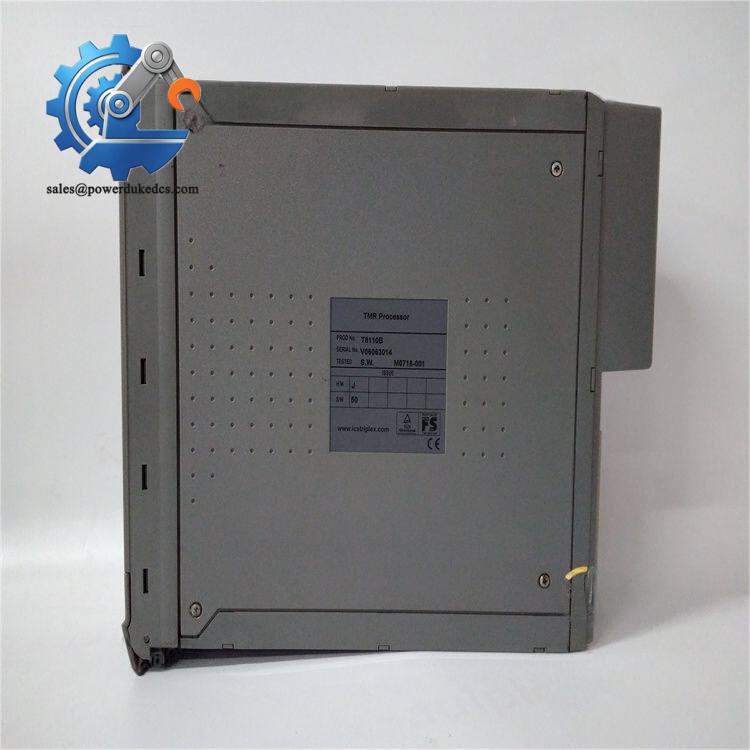

ICS Triplex T8110B

8. Buyer’s FAQ (Logistics & Compliance Focus)

Q1. What HS Tariff Code is commonly used for the ICS Triplex T8110B?

A: The final Harmonized System classification depends on the importing country’s customs interpretation and declared function. Industrial control modules are often reviewed under electronic control equipment categories. Confirm the final HS code with your customs broker before export.

Q2. Does Country of Origin affect T8110B import documentation?

A: Yes. COO records may affect customs processing, customer qualification records, and audit traceability. Maintain the module label, serial number, supplier invoice, and receiving inspection documentation.

Q3. Should shipping insurance be purchased for this safety processor module?

A: Recommended. The T8110B contains precision processor assemblies, memory devices, and chassis connectors that can be affected by impact, moisture, or electrostatic discharge. Use ESD packaging and replacement-value freight coverage.

Q4. Does the T8110B include the latest firmware pre-loaded?

A: Firmware depends on the installed module image, previous system configuration, and application requirements. Verify firmware revision, Trusted Toolset compatibility, and approved safety configuration files before installation into an operational SIS system.
