- ICS Triplex T8403C | OEM Trusted TMR Spare Unit
Unboxing & Physical Snapshot
- Model & Brand: ICS Triplex T8403C Trusted TMR 24Vdc Digital Input Module. This module provides 40 digital input channels using a Triple Modular Redundant (TMR) architecture for Trusted safety systems. Each field input is processed through redundant internal channels with diagnostic monitoring.
- Approximate Physical Dimensions (W × H × D): Approximately 31 × 266 × 303 mm (1.2 × 10.5 × 12.0 in.).
- Estimated Shipping Weight: Approximately 1.15–1.18 kg (2.5–2.6 lb) including module packaging, ESD shielding, and protective inserts.
- What’s in the Box:

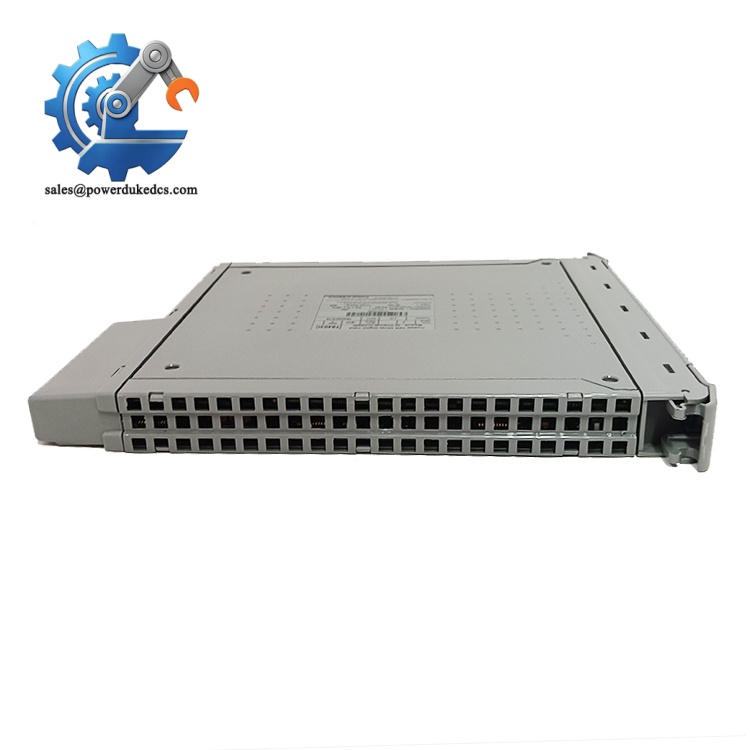

- ICS Triplex T8403C Trusted TMR 24Vdc Digital Input Module

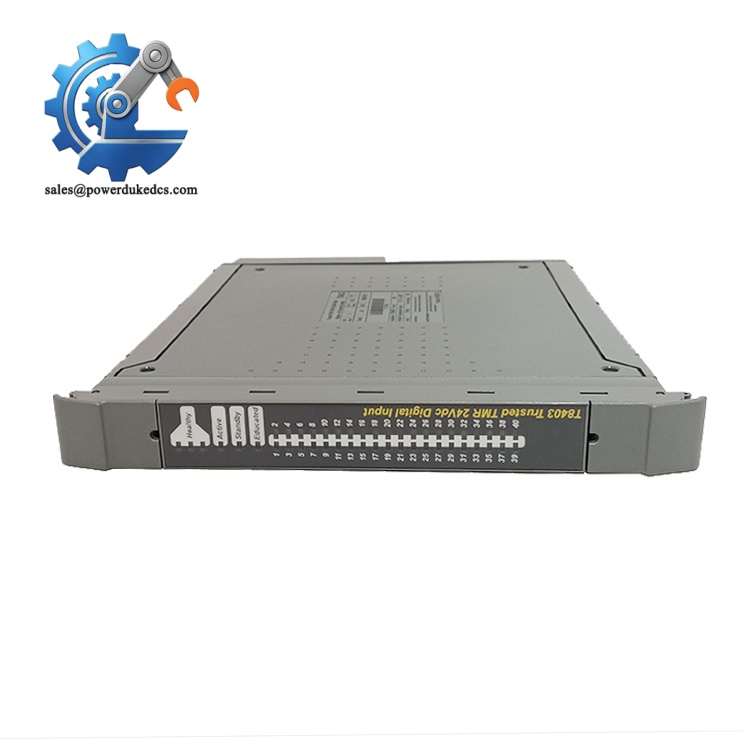

- Front panel assembly with status indicators
- Module identification label
- Anti-static (ESD) shielding bag
- Protective foam packaging
- Documentation when supplied
Product Introduction
The ICS Triplex T8403C installs into the Trusted TMR controller chassis, occupying a dedicated I/O module position connected through the Inter-Module Bus (IMB). Confirm the correct chassis slot, module keying, and backplane engagement before installation. The retaining mechanism must fully lock into place (which prevents vibration-related contact faults in demanding process environments).
This safety input module handles critical digital field signals where fault tolerance and diagnostic coverage are required. The T8403C provides 40 input channels, 24VDC operation, onboard diagnostics, optional line monitoring, configurable digital filtering, and Sequence of Events (SOE) reporting with 1 ms resolution. Inspect the front connector, LED indicators, module housing, and backplane contacts before releasing stored inventory for operational use.
Core Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ICS Triplex |
| Model Number | T8403C |
| Product Type | Trusted TMR 24Vdc Digital Input Module |
| Safety Architecture | Triple Modular Redundant (TMR) |
| Input Channels | 40 digital input channels |
| Input Voltage | 24 VDC nominal |
| Input Voltage Range | -6 to +36 VDC measurement range |
| Input Current | Approximately 2 mA per channel |
| Input Impedance | 5 kΩ |
| Input Thresholds | Configurable |
| Maximum Withstanding Voltage | ±50 VDC |
| Isolation | 2500 V impulse withstand opto/galvanic isolation barrier |
| Line Monitoring | Selectable open/short circuit monitoring |
| Digital Filtering | Configurable 50/60 Hz filtering |
| Sequence of Events Resolution | 1 ms |
| SOE Timestamp Accuracy | ±10 ms |
| Backplane Supply Voltage | 20–32 VDC |
| Typical Power Requirement | Approximately 20 W |
| Maximum Power Dissipation | Approximately 29 W |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -25°C to +70°C |
| Relative Humidity | 10–95% RH, non-condensing |
| Dimensions | 266 × 31 × 303 mm |
| Weight | Approximately 1.18 kg |
ICS Triplex T8403C
Global Compliance & Industry Certifications
Expected regulatory approvals and compliance considerations for the ICS Triplex include:
- CE Mark compliance for applicable Trusted safety system installations
- IEC 61508 SIL 3 capability when installed within a certified Trusted safety architecture
- UL/cUL recognition where applicable to the complete safety controller system
- ATEX/IECEx suitability only when integrated into an approved hazardous-area protection system
- Marine approvals such as DNV GL only for specifically certified system configurations
- Industrial EMC compliance according to the completed cabinet installation
The SIL 3 rating is important because it defines the safety integrity level achieved by the validated system design, including hardware diagnostics, application logic, and installation practices.
Verify specific lot certifications with OEM.
Long-Term Storage & Asset Preservation Guide
Keep the ICS Triplex inside its original anti-static (ESD) shielding bag during storage. Protect the front connector contacts, module edge interfaces, and status LED window from dust accumulation.
Maintain warehouse humidity below 60% RH to reduce oxidation risk on electrical contacts and prevent degradation of protective coatings. Avoid storage near corrosive chemicals, battery charging areas, or environments with airborne contaminants.
Before installation, inspect the module housing, retaining clips, connector pins, and identification markings. Record the serial number, hardware revision, firmware status, and storage history in the spare asset tracking system.
Physical Installation Prerequisites
- Install only in a compatible ICS Triplex Trusted TMR chassis.
- Verify the correct I/O slot assignment before insertion.
- Confirm IMB backplane connection integrity.
- Ensure cabinet protective earth grounding is correctly bonded.
- Maintain cabinet airflow for module heat dissipation.
- Leave approximately 50 mm clearance above and below rack ventilation paths where practical.
- Use approved field wiring practices for 24VDC safety circuits.
- Confirm module retaining hardware is secured before energization.
- Execute system diagnostics after installation.
ICS Triplex T8403C
Buyer’s FAQ (Logistics & Compliance Focus)
Q: What HS Tariff Code is commonly used for the ICS Triplex ?
A: Industrial safety input modules are commonly evaluated under electronic control equipment classifications, often within HS 8537 categories. Some suppliers list tariff references such as 8537101190, but final classification must be confirmed by the importing customs broker.
Q: Does Country of Origin affect importing the module?
A: Yes. COO affects customs declarations, supplier qualification records, and regulated industry traceability. Confirm origin through the module label, commercial invoice, and supplier documentation before shipment.
Q: Is shipping insurance recommended for an ICS Triplex ?
A: Recommended. The module contains safety-rated electronics, precision backplane contacts, and diagnostic circuitry. Use ESD packaging, impact protection, moisture control, and documented receiving inspection procedures.
Q: Does the include the latest firmware pre-loaded?
A: Firmware depends on the module revision and previous system history. The hardware may contain required firmware components, but the installed Trusted system software version and compatibility must be verified against the existing safety controller configuration before commissioning.
