1. ICS Triplex T8311 | OEM Traceable TMR Spare

2. Unboxing & Physical Snapshot

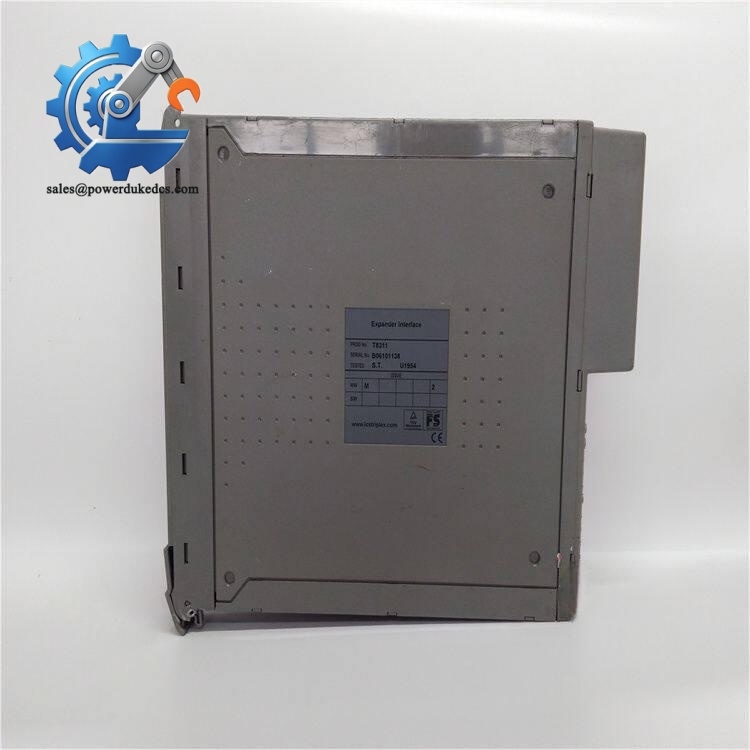

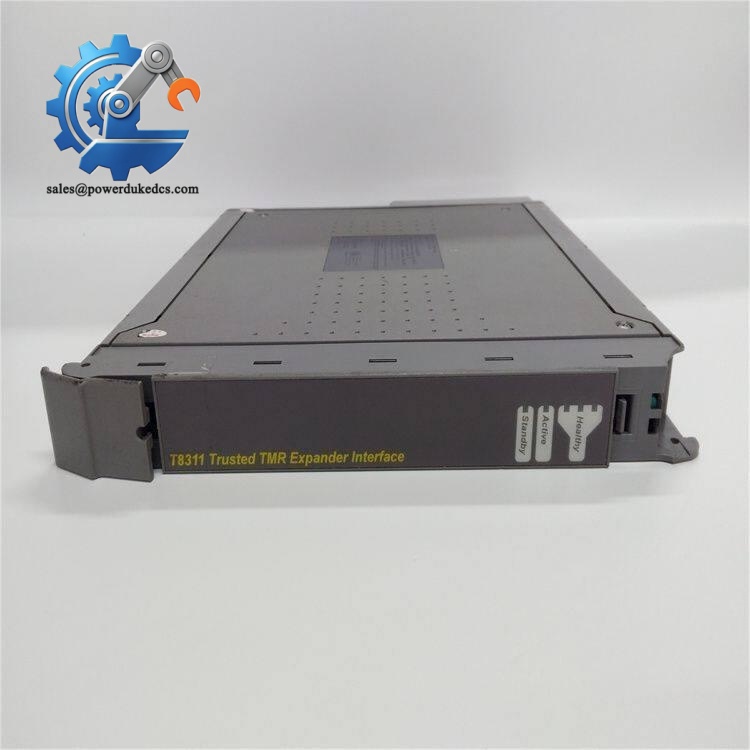

• Model & Brand: ICS Triplex T8311
• Product Type: Trusted TMR Expander Interface Module
• Application: Interface module for the ICS Triplex Trusted TMR safety system. The T8311 provides communication between the controller chassis Inter-Module Bus (IMB) and remote Expander Bus chassis while maintaining the fault-tolerant characteristics of the Trusted architecture.
• Approximate Physical Dimensions (W × H × D):
  • Width: approximately 31 mm
  • Height: approximately 266 mm
  • Depth: approximately 303 mm
  • Form Factor: Trusted single-width rack module
• Estimated Shipping Weight: Approximately 1.14 kg (2.5 lb) for the module; packed shipping weight will vary with ESD materials and export packaging.
• What’s in the Box:
  • ICS Triplex T8311 Trusted TMR Expander Interface Module
  • Front diagnostic LED panel
  • Backplane connection interface
  • Expander communication interface hardware
  • Anti-static (ESD) shielding bag
  • Protective foam packaging
  • Documentation when supplied with controlled inventory

3. Product Introduction

The T8311 mounts inside the Trusted controller chassis and acts as the communication bridge between the internal Inter-Module Bus and external Expander Bus architecture. Multiple chassis can be connected through this interface while preserving the diagnostic and fault containment functions required by the Trusted TMR system (which is critical for large safety systems distributed across multiple cabinets).

This module is a safety communication asset, not a standard network adapter. Replacement requires confirmation of chassis arrangement, expander cable type, firmware compatibility, and approved system configuration. Inspect the rear connector area, front status LEDs, module keying features, and enclosure condition before installation. A correct part number does not replace configuration verification.

4. Core Technical Specifications

Parameter	Value
Manufacturer	ICS Triplex / Rockwell Automation
Model Number	T8311
Product Type	Trusted TMR Expander Interface
System Platform	Trusted TMR Safety System
Architecture	Triple Modular Redundant (TMR)
Compatible Chassis	T8300
Module Clock	50 MHz
Expander Bus Data Rate	250 Mbps
Input/Output Interface	Expander chassis backplane
Operating Voltage Range	20–32 VDC
Maximum Load	40 W
Heat Dissipation	40 W
Communication Distance	30 m using TC-301 copper cable
Fiber Communication Distance	Up to 10 km using fiber converters
Mounting Location	Trusted controller chassis module slot
Operating Temperature	-5°C to +60°C
Storage Temperature	-25°C to +70°C
Operating Humidity	5–95% RH, non-condensing
Module Weight	1.14 kg

ICS Triplex T8311

5. Global Compliance & Industry Certifications

Expected compliance considerations for the ICS Triplex T8311 include:

• CE Mark for applicable EMC requirements within the approved Trusted system installation.
• IEC 61508 SIL capability when used as part of the certified Trusted TMR safety architecture.
• UL/cUL Listed or Recognized status depending on the complete system configuration.
• ATEX/IECEx consideration when installed within an approved hazardous-area safety system.
• Marine approvals such as DNV GL where integrated into offshore or vessel control equipment.

IEC 61508 compliance is important because communication failures in safety systems must be detected, controlled, and managed within defined failure limits. The certification applies to the complete safety architecture, including approved modules, configuration, installation, and maintenance procedures.

Verify specific lot certifications with OEM.

6. Long-Term Storage & Asset Preservation Guide

• Keep the T8311 inside its original anti-static (ESD) shielding bag during storage. Protect the backplane connector and expander communication contacts from oxidation.
• Maintain warehouse humidity below 60% RH to protect connector plating, PCB surfaces, and internal electronic assemblies.
• Inspect stored modules every 12–24 months. Record serial numbers, firmware information where available, packaging condition, and any signs of corrosion around connectors.

Check the date code. Safety communication modules require controlled inventory records.

7. Physical Installation Prerequisites

• Install only into a compatible ICS Triplex Trusted T8300 chassis.
• Verify module slot assignment and Expander Bus configuration before energizing the rack.
• Maintain cabinet airflow for heat removal. Leave approximately 50 mm clearance above and below the rack assembly where cabinet design permits.
• Confirm 20–32 VDC redundant backplane supply availability.
• Ensure protective earth bonding and cabinet grounding are complete.
• Use ESD protection during handling.
• Verify expander cable type, communication distance limits, system configuration database, and safety validation records before commissioning.


  ICS Triplex T8311

8. Buyer’s FAQ (Logistics & Compliance Focus)

Q: What HS Tariff Code is commonly reviewed for the ICS Triplex T8311?
A: Industrial safety communication modules are commonly evaluated under HS 8537 or related electrical control equipment classifications. The final tariff code depends on the importing country’s customs interpretation, declared function, and documentation.

Q: Does Country of Origin (COO) documentation matter for the T8311?
A: Yes. COO records support customs clearance, supplier qualification, and safety lifecycle traceability. Maintain the OEM label, serial number, purchase documents, and incoming inspection records.

Q: Should shipping insurance be purchased for the ICS Triplex T8311?
A: Yes. This module contains specialized TMR communication electronics and safety monitoring circuits. Use ESD packaging, moisture protection, shock protection, and declared-value freight coverage.

Q: Does the ICS Triplex T8311 include the latest firmware pre-loaded?
A: Not necessarily. The module contains its required internal firmware hardware, but the installed revision depends on the specific production unit and system history. Verify firmware compatibility, chassis configuration, and Trusted system records before installation.
