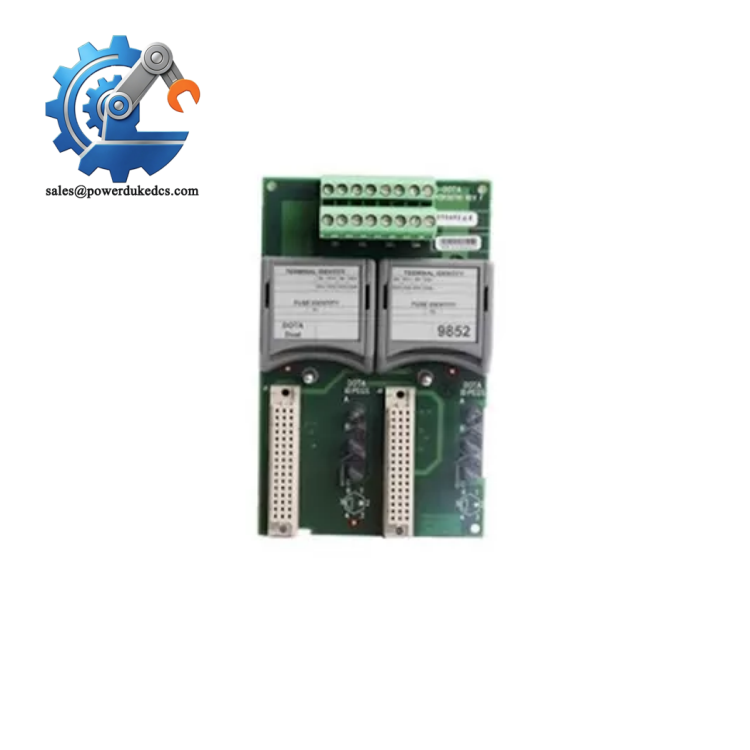

ICS Triplex T9831 | Original Trusted System Component

Description

1. ICS Triplex T9831 | Original Trusted System Component

Unboxing & Physical Snapshot

• Brand & Model: ICS Triplex T9831
• Product Type: Analog Input Termination Assembly for ICS Triplex Trusted/AADvance safety control systems. The T9831 provides field wiring termination for analog input signals and supports 16-channel simplex/commoned configurations.
• Primary Application: Safety instrumented systems (SIS), process monitoring, oil & gas facilities, power generation, and industrial control cabinets requiring organized field signal termination.
• Physical Dimensions (Approximate W × H × D):
  • Approximately 175 × 154 × 86 mm
  • Some installation references list compact enclosure dimensions around this range depending on mounting configuration.
• Estimated Shipping Weight: Approximately 1.0–1.2 kg including terminal assembly, protective packaging, and export carton.
• What’s in the Box:
  • ICS Triplex T9831 Analog Input Termination Assembly
  • Terminal connection interface
  • Mounting hardware where supplied
  • Protective ESD packaging
  • Installation documentation when available

Product Introduction

Structure B — Architecture Hook

The ICS Triplex T9831 sits between field instrumentation wiring and the Trusted controller input architecture. It provides the physical termination point where analog signals from transmitters, sensors, and process devices enter the safety system cabinet. Correct installation depends on accurate channel identification, proper shielding practice, and matching the termination assembly with the intended Trusted input module.

This assembly is not a processor or intelligent controller. It is a precision wiring interface that directly affects signal quality and maintenance reliability (—especially in plants where calibration records and loop documentation are audited regularly). Inspect terminal screws, enclosure condition, and connector alignment before installation. Loose field wiring is a common source of false diagnostics.

Core Technical Specifications

ICS Triplex T9831

The does not contain application firmware or processor memory. Verify the paired input module, wiring diagram, and channel assignment before commissioning.

? Global Compliance & Industry Certifications

Expected regulatory approvals and compliance considerations for the ICS Triplex include:

• CE Mark — applicable for compliant Trusted/AADvance system installations.
• UL/cUL Recognition — may apply depending on the complete certified control system configuration.
• IEC 61508 System Compatibility — relevant because the termination assembly supports safety-related signal paths.
• ATEX/IECEx Compatibility — not a standalone hazardous-area certified device; hazardous-area suitability depends on the complete approved installation.
• Marine Approvals (DNV GL) — applicable only when integrated into certified marine automation equipment.

Signal termination quality matters in safety applications. A properly documented and certified installation helps prevent wiring errors that could affect safety loop performance.

Verify specific lot certifications with OEM.

? Long-Term Storage & Asset Preservation Guide

Store the ICS Triplex inside the original anti-static (ESD) packaging. Protect the terminal contacts and connector surfaces from dust, humidity, and chemical contamination.

Maintain warehouse humidity below 60% RH. Moisture can increase terminal oxidation and create higher contact resistance during commissioning.

Before installation:

• Inspect terminal blocks for corrosion or damaged threads.
• Verify enclosure surfaces have no cracks or deformation.
• Check connector pins and mounting points for oxidation.
• Confirm all identification labels remain readable.

Keep the assembly away from areas containing corrosive vapors. Copper alloys and plated contacts can degrade when exposed to industrial chemicals over long storage periods.

Physical Installation Prerequisites

• Install only with the approved ICS Triplex Trusted/AADvance hardware configuration.
• Confirm correct channel mapping before connecting field wiring.
• Tighten terminal screws according to manufacturer requirements.
• Maintain cabinet airflow around adjacent electronic modules.
• Leave at least 50 mm clearance around ventilation paths where cabinet construction permits.
• Verify protective earth grounding continuity of the cabinet structure.
• Confirm cable shielding and grounding practices match the approved loop drawings.

Route field cables away from high-current switching conductors to reduce electrical interference.

Buyer’s FAQ (Logistics & Compliance Focus)

Q1. What HS Tariff Code is commonly used for the ICS Triplex ?

A: The final Harmonized System classification depends on the importing country’s customs rules and the declared function of the assembly. Industrial termination assemblies may be reviewed under electronic control equipment or parts categories. Confirm the final HS code with your customs broker before shipment.

Q2. Does Country of Origin affect import documentation?

A: Yes. COO information may affect customs clearance, customer qualification records, and compliance audits. Maintain the original product label, supplier invoice, packing list, and receiving inspection records.

Q3. Is shipping insurance recommended for the ?

A: Recommended. Although it is primarily a termination assembly, damaged terminal blocks, cracked housings, or bent connection hardware can prevent proper installation. Use protective packaging and replacement-value freight coverage.

Q4. Does the include the latest firmware pre-loaded?

A: No. The is a passive termination assembly and does not contain firmware, memory, or application configuration data. Verify the connected Trusted input module firmware and system configuration separately before startup.
