- ICS Triplex T9432 | OEM Traceable Control Spare
Unboxing & Physical Snapshot
- Model & Brand: ICS Triplex T9432
- Product Type: 16-Channel Isolated Analog Input Module
- Application: Safety-related analog signal acquisition module for the ICS Triplex AADvance controller platform. The T9432 receives field current signals from transmitters and process instruments, converting them into digital values for safety and process monitoring functions.
- Approximate Physical Dimensions (W × H × D):
- Width: approximately 42 mm
- Height: approximately 166 mm
- Depth: approximately 118 mm
- Mounting style: AADvance controller I/O module format
- Estimated Shipping Weight: Approximately 0.4–0.8 kg including ESD packaging and protective transport materials.
- What’s in the Box:
- ICS Triplex T9432 analog input module

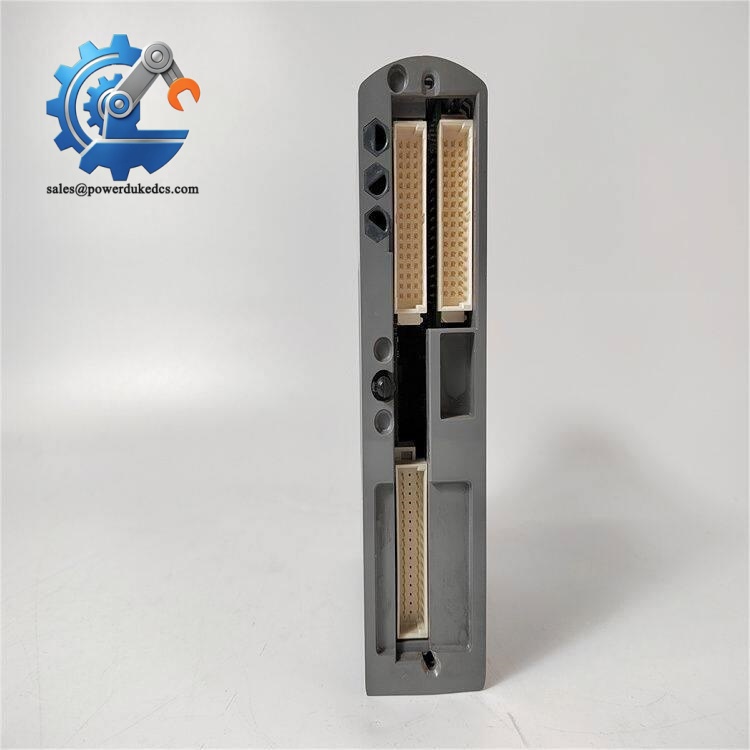

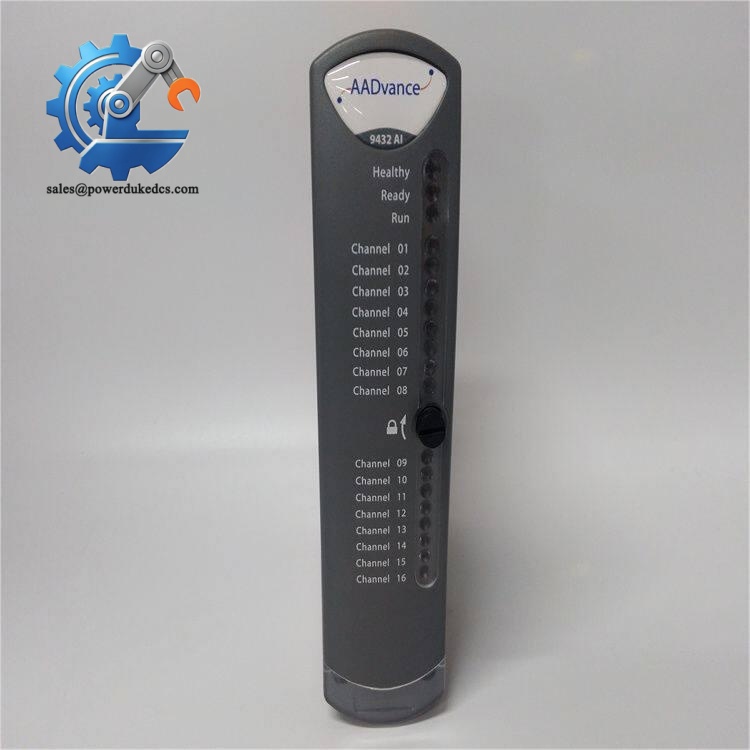

- Front status indicator assembly
- Controller backplane interface
- Terminal connection interface (system dependent)
- Anti-static (ESD) shielding bag
- Protective foam packaging
- Documentation when supplied with controlled inventory
Product Introduction
The T9432 installs into the ICS Triplex AADvance controller chassis as a safety-rated analog acquisition module. It occupies a dedicated I/O position and communicates processed field values back to the controller through the internal system bus. The module provides 16 isolated analog input channels, supporting current-based field instruments commonly used for pressure, temperature, flow, and level monitoring (which is critical in process plants where signal integrity affects protective functions).
Treat this module as a safety lifecycle asset. Replacement requires verification of channel configuration, controller firmware compatibility, safety application settings, and validation documentation. Inspect the terminal interface, enclosure condition, connector pins, and status LEDs before installation. A correct part number alone does not confirm application compatibility.
Core Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ICS Triplex / Rockwell Automation |
| Model Number | T9432 |
| Product Type | Analog Input Module |
| System Platform | ICS Triplex AADvance |
| Input Channels | 16 isolated analog input channels |
| Input Signal Range | 0 mA to 24 mA |
| Standard Signal Range | 4 mA to 20 mA |
| Resolution | 15-bit |
| Least Significant Bit Value | Approximately 0.98 µA |
| Channel Isolation | Up to ±1.5 kVDC withstand |
| Power Supply | Redundant 24 VDC nominal |
| Supply Range | 18 VDC to 32 VDC |
| Power Consumption | Approximately 4 W |
| Sample Update Interval | Approximately 6 ms without filtering |
| Accuracy | Approximately ±0.05 mA at 25°C |
| Safety Integrity Capability | IEC 61508 SIL 2 / SIL 3 depending on system configuration |
| Operating Temperature | Approximately -20°C to +70°C |
| Storage Temperature | Approximately -40°C to +85°C |
| Mounting Method | AADvance controller rack installation |
| Enclosure Protection | IP20 system installation |
ICS Triplex T9432
Global Compliance & Industry Certifications
Expected compliance considerations for the ICS Triplex include:
- CE Mark for applicable EMC and electrical safety requirements within the approved AADvance system installation.
- IEC 61508 SIL capability when installed as part of the validated safety controller architecture.
- UL/cUL Listed or Recognized status depending on the complete installed system configuration.
- ATEX/IECEx consideration when integrated into a certified hazardous-area safety system.
- Marine approvals such as DNV GL where installed in approved offshore or vessel automation applications.
IEC 61508 certification matters because safety modules must meet defined hardware fault tolerance and diagnostic requirements before they can be used in safety instrumented functions. The certification applies to the complete approved architecture, not only the individual circuit board.
Verify specific lot certifications with OEM.
Long-Term Storage & Asset Preservation Guide
- Keep the inside its original anti-static (ESD) shielding bag. Protect the terminal connections and backplane contacts from oxidation.
- Maintain warehouse humidity below 60% RH. Moisture exposure can degrade connector surfaces and create intermittent analog measurement faults.
- Inspect stored modules every 12–24 months. Record firmware information where available, check packaging condition, and inspect the enclosure for contamination or mechanical damage.
Do not stack loose modules. Use individual ESD protection sleeves.
Physical Installation Prerequisites
- Install only into a compatible ICS Triplex AADvance controller base unit.
- Verify module position, I/O configuration, and controller database settings before startup.
- Maintain cabinet airflow for convection cooling. Leave approximately 50 mm clearance above and below the rack assembly where cabinet design permits.
- Confirm redundant 24 VDC supply availability.
- Ensure cabinet protective earth bonding is complete.
- Use ESD protection during handling.
- Verify field wiring polarity, shield termination, input scaling, and safety application validation records before commissioning.
ICS Triplex T9432
Buyer’s FAQ (Logistics & Compliance Focus)
Q: What HS Tariff Code is commonly reviewed for the ICS Triplex ?
A: Analog input safety modules are commonly evaluated under HS 8537 or related electrical control equipment classifications. The final classification depends on the importing country, declared function, and customs authority interpretation.
Q: Does Country of Origin (COO) documentation matter for the ?
A: Yes. COO records support customs clearance, supplier qualification, and safety asset traceability. Maintain the OEM label, serial information, purchase records, and receiving inspection documents.
Q: Should shipping insurance be purchased for the ICS Triplex ?
A: Yes. This module contains precision analog conversion circuits, isolation components, and safety-related electronics. Use ESD packaging, moisture protection, shock protection, and declared-value freight coverage.
Q: Does the ICS Triplex include the latest firmware pre-loaded?
A: The module contains its required internal electronics, but firmware and system configuration depend on the installed AADvance environment. Verify module revision, controller firmware compatibility, and application database configuration before installation.
