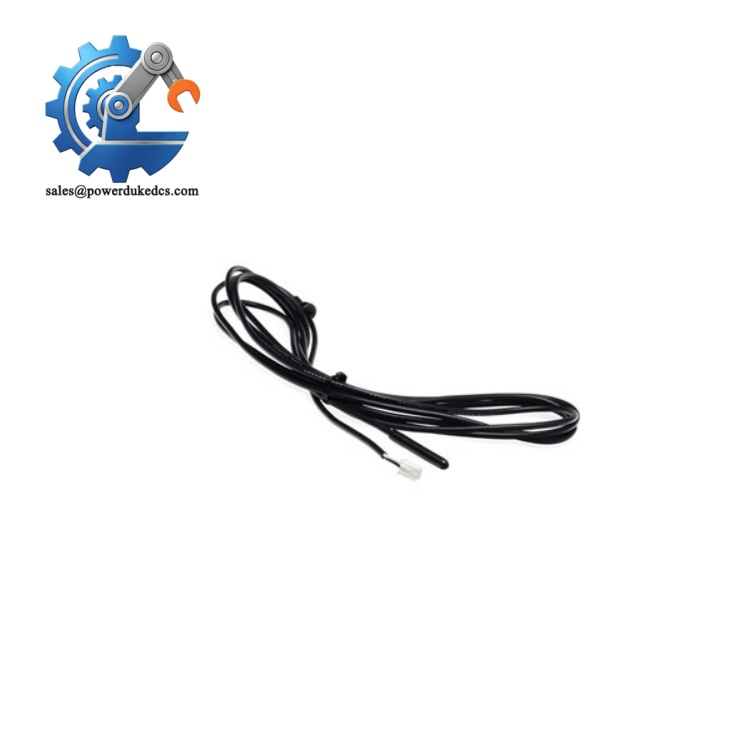

ICS Triplex TC-201-01-4M5 | Trusted TMR Cabinet Component

1. ICS Triplex TC-201-01-4M5 | Trusted TMR Cabinet Component

Unboxing & Physical Snapshot

• Brand & Model: ICS Triplex TC-201-01-4M5
• Product Type: Trusted Chassis Power Cable Assembly. The TC-201 series is used within ICS Triplex Trusted systems for internal chassis power distribution and cabinet-level interconnection.
• Primary Application: Trusted TMR controller chassis power connection, safety system cabinets, industrial automation racks, and replacement maintenance stock.
• Cable Configuration:
  • Series: TC-201
  • Variant: 01
  • Length Code: 4M5 (approximately 4.5 meters)
• Physical Dimensions (Approximate):
  • Cable Length: 4.5 m
  • Packed Dimensions: approximately 300 × 220 × 80 mm
• Estimated Shipping Weight: Approximately 0.8–1.2 kg including protective wrapping and export carton.
• What’s in the Box:
  • ICS Triplex TC-201-01-4M5 cable assembly
  • Factory-installed connectors
  • Protective connector covers (when supplied)
  • Cable identification label
  • ESD-safe packaging
  • Export protection materials

Product Introduction

Structure B — Architecture Hook

The ICS Triplex TC-201-01-4M5 is installed as part of the physical power distribution path inside a Trusted safety control cabinet. Unlike signal cables that carry process information, this assembly supports the controlled delivery of power between approved system hardware locations. Correct cable identification matters because similar-looking harnesses may have different pin assignments or electrical functions.

This cable assembly is a maintenance-critical item despite its passive design. A damaged connector shell, incorrect routing, or stressed cable bend can create intermittent power issues that are difficult to diagnose during plant operation (—which is critical in safety systems requiring documented maintenance procedures). Inspect the insulation jacket, connector locking features, and labeling before installation.

Core Technical Specifications

ICS Triplex TC-201-01-4M5

The TC-201-01-4M5 is a passive connection assembly and does not contain firmware, memory, or configurable electronics. Verify the cable part number against the chassis drawing before replacement.

? Global Compliance & Industry Certifications

Expected regulatory considerations for the ICS Triplex TC-201-01-4M5 include:

• CE Mark — applicable when installed within a compliant Trusted system assembly.
• UL/cUL Recognition — may apply depending on the complete certified cabinet configuration.
• IEC 61508 System Compatibility — relevant because the cable supports power infrastructure within safety-related automation systems.
• ATEX/IECEx Compatibility — not a standalone hazardous-area certified cable; suitability depends on the complete installation design.
• Marine Approvals (DNV GL) — applicable only when integrated into approved marine automation equipment.

For safety-related installations, cable identification is part of configuration control. A visually similar replacement cable without matching approval records may create an audit issue.

Verify specific lot certifications with OEM.

? Long-Term Storage & Asset Preservation Guide

Store the TC-201-01-4M5 in a dry cabinet with the original packaging intact. Keep connector ends covered to prevent dust and oxidation on contact surfaces.

Maintain warehouse humidity below 60% RH. Long-term exposure to moisture can affect connector plating and increase contact resistance.

Before installation:

• Inspect the cable jacket for cuts, flattening, or chemical damage.
• Check connector housings and retaining clips for cracks.
• Confirm cable labels remain readable.
• Verify no excessive twisting occurred during storage.

Avoid hanging long cables by the connector ends. The mechanical load can damage internal strain relief sections.

Physical Installation Prerequisites

• Install only according to the approved ICS Triplex Trusted cabinet drawings.
• Verify the cable destination and connector orientation before connection.
• Avoid sharp bends or excessive pulling force.
• Secure long cable runs with approved cabinet supports.
• Keep the cable separated from high-current switching conductors where required.
• Verify cabinet protective earth continuity.
• Maintain sufficient clearance around cable routing areas for inspection.

Leave at least 50 mm clearance around cabinet ventilation paths where required by the enclosure design.

Buyer’s FAQ (Logistics & Compliance Focus)

Q1. What HS Tariff Code is commonly used for the ICS Triplex TC-201-01-4M5?

A: The final Harmonized System classification depends on the importing country’s customs interpretation and the declared function of the cable assembly. Industrial control power cables may be reviewed under electrical cable or control equipment categories. Confirm the final HS code with your customs broker before shipment.

Q2. Does Country of Origin affect TC-201-01-4M5 import documentation?

A: Yes. COO information supports customs clearance, customer qualification records, and asset traceability. Keep the cable label, supplier invoice, packing list, and receiving inspection records together.

Q3. Is shipping insurance recommended for this cable assembly?

A: Recommended. Although passive, the assembly contains precision connectors that may be damaged by impact, compression, or moisture exposure. Use protective packaging and replacement-value freight coverage.

Q4. Does the TC-201-01-4M5 include the latest firmware pre-loaded?

A: No. The TC-201-01-4M5 is a passive power cable assembly and contains no firmware, memory, or configuration data. Verify compatibility with the connected Trusted hardware before installation.
