- ICS Triplex T8110C | OEM Safety PLC Processor Spare

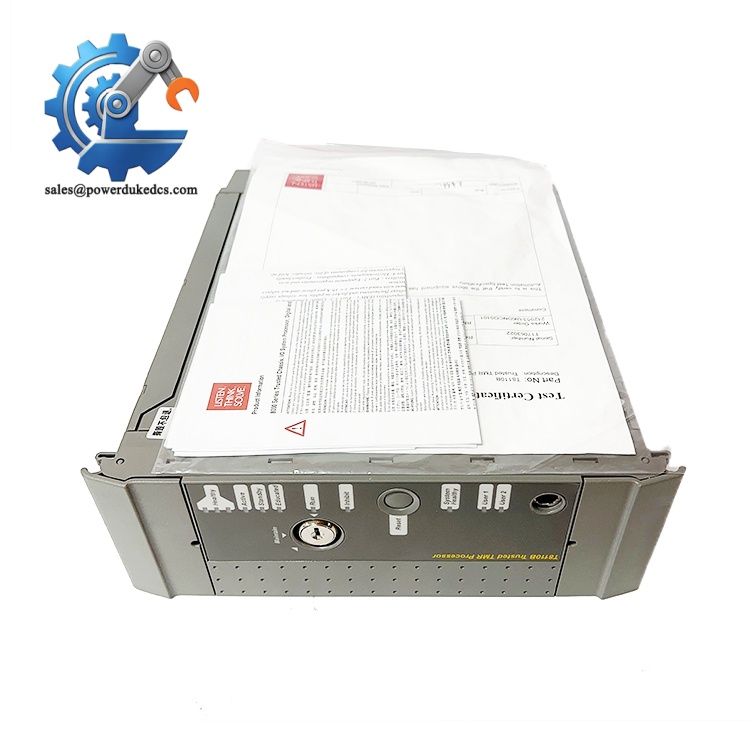

Unboxing & Physical Snapshot
- Model & Brand: ICS Triplex T8110C Trusted TMR Processor. This module is the main processing component of the Trusted safety system, providing system control, monitoring, application execution, and communication with Trusted I/O modules through the Triple Modular Redundant Inter-Module Bus (IMB).
- Approximate Physical Dimensions (W × H × D): Approximately 93 × 266 × 303 mm (3.7 × 10.5 × 11.9 in.) for the Trusted processor module format.
- Estimated Shipping Weight: Approximately 1.9 kg (4.2 lb) including ESD shielding, protective foam, and transport packaging.
- What’s in the Box:
- ICS Triplex T8110C Trusted TMR Processor Module
- Front panel assembly with status indicators
- Diagnostic serial interface access
- Anti-static (ESD) shielding bag
- Protective foam packaging
- Product identification label
- Documentation when supplied
Product Introduction
The ICS Triplex T8110C installs into the Trusted T8100 processor chassis, occupying the dedicated processor slot and connecting to the system through the triplicated Inter-Module Bus (IMB). Confirm chassis compatibility, power feed arrangement, and processor slot assignment before insertion. Secure the retaining hardware completely. A loose module connection can introduce diagnostic faults during operation (especially in high-vibration control rooms).
This processor module serves as the central execution and monitoring unit within a Trusted TMR safety architecture. It uses three synchronized processor fault containment regions operating in a lock-step configuration, with voting logic, independent memory resources, and hardware fault detection mechanisms. The design supports safety applications such as emergency shutdown, fire and gas control, and critical process monitoring where deterministic fault handling is required. Inspect the front connector, diagnostic port, retaining clips, and chassis backplane contacts before returning a stored processor to active service.
Core Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ICS Triplex / Rockwell Automation |
| Model Number | T8110C |
| Product Type | Trusted TMR Processor Module |
| System Platform | Trusted TMR Safety System |
| Safety Architecture | Triple Modular Redundant (TMR) |
| Processor Configuration | Three synchronized processor fault containment regions |
| Processor Clock | 100 MHz class |
| Operating Mode | Lock-step execution with 2oo3 voting |
| Chassis Location | T8100 Processor Slot |
| IMB Interface | Triple redundant Inter-Module Bus |
| Supply Voltage | 20–32 VDC |
| Maximum Power Dissipation | Approximately 30 W |
| Maximum Load Capability | Approximately 80 W system specification |
| Application Memory | Flash ROM / DRAM / retained memory architecture |
| SOE Buffer | Approximately 1000 events |
| Communication Ports | RS-232 diagnostics, RS-422/485 serial interfaces, IRIG timing interfaces |
| Retained Variable Storage | 4 KB class |
| Application Size | Approximately 960 KB maximum |
| Real-Time Clock Retention | Capacitor-backed retention |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -25°C to +70°C |
| Relative Humidity | 10–95% RH, non-condensing |
| Dimensions | 266 × 93 × 303 mm |
| Weight | Approximately 1.89 kg |
- ICS Triplex T8110C
Global Compliance & Industry Certifications
Expected regulatory approvals and compliance considerations for the ICS Triplex include:
- CE Mark compliance for applicable Trusted safety system installations
- IEC 61508 SIL 3 capability when installed within a certified Trusted safety architecture
- UL/cUL recognition where applicable to the complete safety controller system
- ATEX/IECEx suitability only when integrated into an approved hazardous-area safety solution
- Marine approvals such as DNV GL only for specifically certified system configurations
- Industrial EMC compliance according to the complete cabinet installation requirements
The IEC 61508 SIL 3 capability is significant because the processor participates directly in the validated safety architecture. Certification depends on the complete system design, including application software, I/O modules, installation practices, and maintenance procedures.
Verify specific lot certifications with OEM.
Long-Term Storage & Asset Preservation Guide
Keep the ICS Triplex inside its original anti-static (ESD) shielding bag during warehouse storage. Protect the front connector, diagnostic port, and chassis interface contacts from contamination and oxidation.
Maintain storage humidity below 60% RH. The processor contains sensitive memory devices and precision timing circuits; uncontrolled humidity can accelerate contact corrosion and protective coating degradation.
Inspect the module before installation. Check the front-panel indicators, retaining clips, connector condition, and identification markings. Record the serial number, hardware revision, firmware version, and storage history in the spare asset management system.
Physical Installation Prerequisites
- Install only in a compatible ICS Triplex Trusted T8100 chassis.
- Verify the dedicated processor slot before insertion.
- Confirm redundant 24VDC supply availability and correct polarity.
- Ensure cabinet protective earth grounding is properly bonded.
- Maintain cabinet airflow for processor heat removal.
- Leave approximately 50 mm clearance above and below rack ventilation paths where practical.
- Verify IMB backplane connector condition before installation.
- Confirm diagnostic communication ports are correctly terminated.
- Perform Trusted system diagnostics after replacement.
- ICS Triplex
Buyer’s FAQ (Logistics & Compliance Focus)
Q: What HS Tariff Code is commonly used for the ICS Triplex ?
A: Safety processor modules are commonly evaluated under industrial control equipment classifications, often within HS 8537 categories. Final classification depends on the declared function and the importing country’s customs requirements.
Q: Does Country of Origin affect importing the processor?
A: Yes. COO affects customs documentation, supplier qualification, and lifecycle traceability for safety-related assets. Confirm origin through the module label, commercial invoice, and supplier records before shipment.
Q: Is shipping insurance recommended for the ICS Triplex ?
A: Recommended. The processor contains safety-rated electronics, memory components, and precision backplane interfaces. Use ESD packaging, shock protection, moisture control, and documented receiving inspection.
Q: Does the include the latest firmware pre-loaded?
A: Firmware depends on the module revision and previous system configuration. The processor contains firmware storage resources, but the installed Trusted firmware version and application compatibility must be verified against the existing safety system before commissioning.
Start Chat
