Description

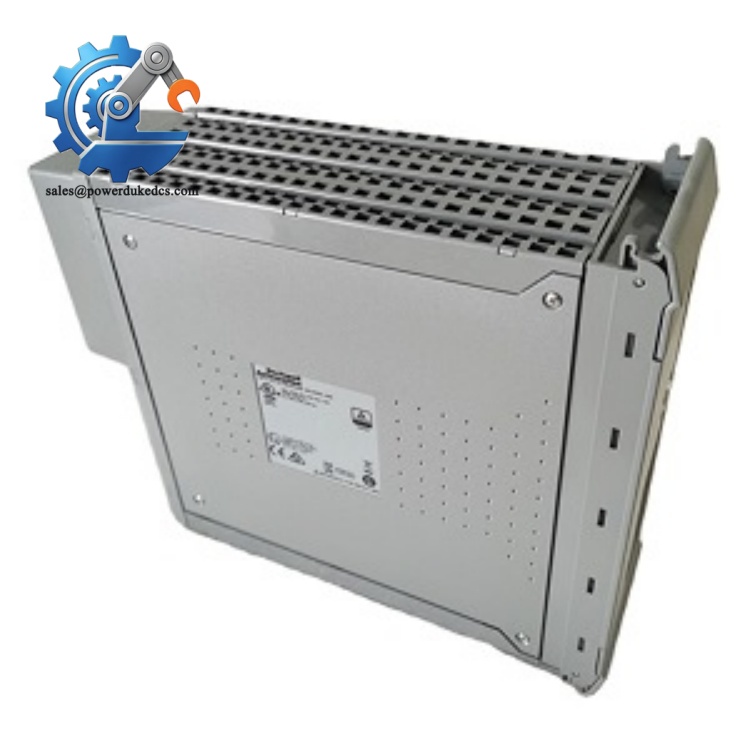

- ICS Triplex T3310 | Authentic Trusted Control Module
Unboxing & Physical Snapshot
- Model & Brand: ICS Triplex T3310
- Product Type: Trusted™ Digital DC Input Module designed for ICS Triplex safety control systems. The T3310 provides 16 digital DC input channels for safety-related monitoring applications, including switch inputs and discrete field signals.
- Approximate Physical Dimensions (W × H × D):
- Approximately 33 × 265 × 357 mm
- Rack-mounted Trusted system module format.
- Estimated Shipping Weight: Approximately 1.26 kg module weight; allow additional packaging weight for ESD protection and transport materials.
- What’s in the Box:
- ICS Triplex T3310 Digital DC Input Module
- Front panel assembly with status indicators
- Module retaining hardware
- Identification label
- Anti-static (ESD) shielding bag
- Protective foam packaging
- Documentation package when available
Product Introduction
The ICS Triplex T3310 mounts inside the Trusted safety controller chassis and provides the signal interface between field devices and the safety logic processor. Its job is to detect discrete DC states from field equipment while maintaining diagnostic coverage and electrical isolation (which is critical for shutdown systems, burner management, and process protection applications).
This module must be managed as a safety asset, not a standard automation spare. The replacement process requires verification of channel assignment, field wiring, hardware revision, and system configuration records. The T3310 supports 16 digital inputs, configurable input filtering, optocoupler isolation, and diagnostic monitoring features intended for high-integrity control environments. Check the revision label before installation.
Core Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ICS Triplex |
| Model | ICS Triplex T3310 |
| Product Family | Trusted™ Safety System |
| Module Type | Digital DC Input Module |
| Input Channels | 16 channels |
| Input Voltage Options | 24 VDC / 48 VDC / 120 VDC configurable |
| Input Current | Approximately 7 mA |
| Input Isolation | Optocoupler isolation |
| Input Filtering | Configurable anti-bounce filtering |
| Acquisition Time | Approximately 1 ms |
| Field Connection | Shielded or unshielded cable support |
| Status Indication | LED indicators for input, communication, self-test, and faults |
| Safety Application | Safety Instrumented System (SIS) input monitoring |
| Power Consumption | Approximately 7.5 W maximum |
| Supply Voltage | 24 VDC nominal system supply |
| Heat Dissipation | Generated mainly by input conditioning and isolation circuits |
| Mounting Method | Trusted rack backplane installation |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | Up to 95% RH without condensation |
ICS Triplex T3310
? Global Compliance & Industry Certifications
Expected regulatory considerations for the ICS Triplex include:
- CE Mark: Applicable when installed as part of a complete Trusted system meeting EMC and electrical safety requirements.
- UL/cUL Listed: May apply depending on the certified system configuration and installation environment.
- IEC 61508 Functional Safety: The Trusted platform is designed for safety-related applications, with certification dependent on the complete system configuration and hardware revision.
- ATEX / IECEx: Not a standalone hazardous-area certified device. Hazardous-area applications require approved barriers, field devices, enclosure systems, and complete installation certification.
- Marine Approvals (DNV GL): Applicable only when installed as part of an approved marine control system.
For audit control, record the module serial number, hardware revision, firmware information, rack position, and safety validation history. A replacement card without matching records can create traceability issues during a functional safety review.
Verify specific lot certifications with OEM.
? Long-Term Storage & Asset Preservation Guide
Keep the ICS Triplex inside its original anti-static shielding bag during storage. Protect the rear connector pins, front indicator panel, and PCB surfaces from electrostatic discharge and contamination.
Maintain warehouse humidity below 60% RH. Long-term moisture exposure can degrade connector surfaces and increase the risk of intermittent field signal faults.
Inspect stored modules every 12-24 months. Check the retaining clips, connector condition, identification labels, and PCB surface. Before installation, perform a controlled inspection and confirm the spare module revision matches the approved safety system record.
Physical Installation Prerequisites
- Install the only in the approved ICS Triplex Trusted rack system.
- Confirm the correct I/O slot assignment before insertion.
- Verify field wiring against approved loop drawings.
- Ensure the backplane connector is fully seated.
- Maintain cabinet airflow for convection cooling.
- Leave sufficient clearance around rack assemblies to prevent localized heat accumulation.
- Confirm cabinet protective earth grounding.
- Verify field voltage selection matches the installed configuration.
- Confirm signal isolation requirements before energizing.
- Complete required safety validation testing after replacement.
Buyer’s FAQ (Logistics & Compliance Focus)
Q: What HS Tariff Code is commonly used for an ICS Triplex shipment?
A: Industrial safety input modules are commonly reviewed under electronic control equipment categories, often within HS 8538 or related industrial automation component classifications. Final classification depends on customs interpretation, declared function, and importing-country regulations.
Q: Does Country of Origin (COO) documentation matter for the ?
A: Yes. COO records support customs clearance, asset traceability, and safety system documentation. Verify the actual country marking on the module label and shipping paperwork before export or import.
Q: Should the ship with insurance coverage?
A: Recommended. The module contains precision input circuits, isolation components, and rack connectors. Shock or moisture exposure during transport may cause failures discovered only during safety testing.
Q: Does the ICS Triplex include the latest firmware pre-loaded?
A: The module contains internal operating firmware, but the installed revision depends on manufacturing history and previous service records. Confirm firmware compatibility, hardware revision, and Trusted system configuration before installation.
