- ICS Triplex TC-501-02-4M5 | Industrial Control Wiring Assembly
2. Unboxing & Physical Snapshot
- Brand & Model: ICS Triplex TC-501-02-4M5
- Product Type: Trusted I/O SmartSlot Cable Assembly. The TC-501 cable family provides the connection path between Trusted I/O modules and field termination assemblies (FTAs/VFTAs). The cable is used for internal input signal connection between the chassis and termination hardware.
- Primary Application: ICS Triplex Trusted TMR safety systems, analog/digital I/O signal routing, FTA cabinet wiring, and safety control panel installations.
- Cable Configuration:
- Type: TC-501 SmartSlot Cable
- Insulation Variant: 02 (LSZH / low smoke zero halogen cable type)
- Length Code: 4M5 = approximately 4.5 meters
- The SmartSlot cable ordering format uses cable type, insulation type, and length designation within the part number.
- Physical Dimensions (Approximate):
- Cable length: 4.5 m
- Packed dimensions: approximately 200 × 130 × 60 mm
- Estimated Shipping Weight: Approximately 0.5–1.0 kg including protective packaging.
- What’s in the Box:

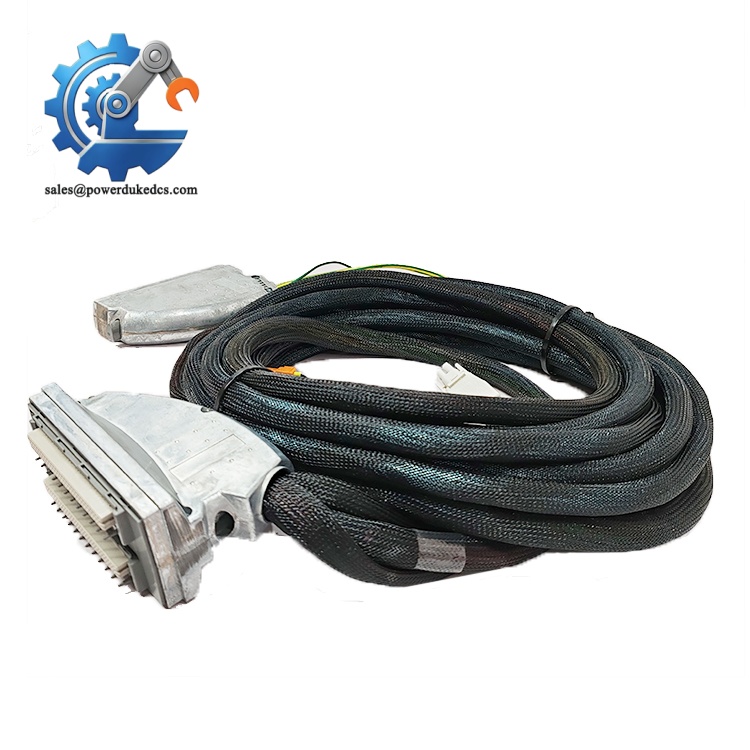

- ICS Triplex TC-501-02-4M5 SmartSlot Cable Assembly
- 96-way Type C chassis connector end
- 96-way Type R remote FTA connector end
- Shield braid connection points
- Protective caps (when supplied)
- ESD-safe packaging and transport protection
3. Product Introduction
Structure B — Architecture Hook
The ICS Triplex TC-501-02-4M5 sits between the Trusted controller chassis and field termination equipment, carrying I/O signals through a controlled connection path. The cable assembly uses dedicated 96-way connectors to interface with compatible Trusted modules and FTAs, keeping field wiring separated from the main electronic rack assembly.
Cable assemblies are often overlooked during maintenance planning. They should not be treated as simple wiring. A damaged connector hood, incorrect cable routing, or excessive pulling force can create intermittent faults that are difficult to reproduce (—which is critical in safety instrumented systems with strict troubleshooting requirements). Inspect the connector shells, strain relief sections, and cable jacket before installation.
4. Core Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ICS Triplex |
| Model Number | TC-501-02-4M5 |
| Product Type | Trusted I/O SmartSlot Cable |
| Cable Family | TC-501 |
| Cable Function | Internal I/O module to FTA connection |
| Insulation Type | LSZH / Low Smoke Zero Halogen |
| Cable Length | 4.5 m |
| Chassis Connector | 96-way Type C connector |
| Remote Connector | 96-way Type R connector |
| Compatible Hardware | Trusted I/O modules and FTAs |
| Signal Type | Analog and digital I/O signals |
| Shielding | Cable braid with safety earth connection |
| Maximum Recommended Length | 15 m typical system limit |
| Installation Location | Control cabinet environment |
| Operating Temperature | Approximately 0°C to +60°C |
| Storage Temperature | Approximately -25°C to +70°C |
| Humidity | 10–95% RH non-condensing |
| Weight | Approximately 0.5–1.0 kg |
ICS Triplex TC-501-02-4M5
The TC-501 series cable is manufactured with specific connector and insulation selections. Confirm the exact module, FTA type, and cable revision before replacement.
5. ? Global Compliance & Industry Certifications
Expected regulatory considerations for the ICS Triplex TC-501-02-4M5 include:
- CE Mark — applicable when installed within a compliant Trusted system assembly.
- UL/cUL Recognition — may apply depending on the selected cable insulation specification and complete system approval.
- IEC 60332-3 Flame Performance — LSZH cable variants are designed for reduced smoke and flame propagation characteristics.
- IEC 61508 System Compatibility — relevant because the cable supports signal paths within safety-related automation systems.
- ATEX/IECEx Compatibility — not a standalone hazardous-area certified cable assembly; suitability depends on the complete installation design.
- Marine Approvals (DNV GL) — applicable only when incorporated into approved marine automation systems.
Cable certification should match the installed environment. Incorrect insulation type or routing method can create compliance issues during safety audits.
Verify specific lot certifications with OEM.
6. ? Long-Term Storage & Asset Preservation Guide
Store the TC-501-02-4M5 coiled loosely inside the original packaging. Avoid tight bends around the connector ends because repeated stress can damage internal conductors.
Maintain warehouse humidity below 60% RH. Moisture can affect connector plating and reduce long-term contact reliability.
Before installation:
- Inspect the cable jacket for cracks, cuts, or compression marks.
- Check both connector housings for bent pins or damaged locking hardware.
- Confirm connector protective covers are installed during storage.
- Verify the cable label matches the required module connection.
Never pull the cable by the connector shell. Use the cable body when positioning it inside the cabinet.
7. Physical Installation Prerequisites
- Install only with compatible ICS Triplex Trusted I/O modules and FTA assemblies.
- Verify connector orientation before insertion.
- Ensure the cable bend radius is maintained.
- Avoid routing parallel to high-current power cables where possible.
- Connect cable shields according to approved grounding drawings.
- Secure the cable using cabinet supports to prevent connector loading.
- Maintain sufficient cabinet clearance for inspection and replacement access.
Leave at least 50 mm clearance around cabinet ventilation paths where required by the enclosure design.
8. Buyer’s FAQ (Logistics & Compliance Focus)
Q1. What HS Tariff Code is commonly used for the ICS Triplex TC-501-02-4M5?
A: The final Harmonized System classification depends on customs interpretation and the declared function of the cable assembly. Industrial control cables may be reviewed under electrical cable or control equipment categories. Confirm the final HS code with your customs broker before shipment.
Q2. Does Country of Origin affect TC-501-02-4M5 import records?
A: Yes. COO information supports customs clearance, customer qualification files, and traceability requirements. Maintain cable labels, supplier invoices, packing lists, and receiving inspection records.
Q3. Should shipping insurance be purchased for this cable assembly?
A: Recommended. Connector damage, crushing, or moisture exposure can make the cable unusable even when the external jacket appears intact. Use protective packaging and replacement-value freight coverage.
Q4. Does the TC-501-02-4M5 include firmware pre-loaded?
A: No. The TC-501-02-4M5 is a passive I/O cable assembly and does not contain firmware, memory, or configuration data. Verify the connected Trusted module and FTA compatibility before installation.
