- ICS Triplex T8403 | OEM Trusted TMR Controller Spare
Unboxing & Physical Snapshot

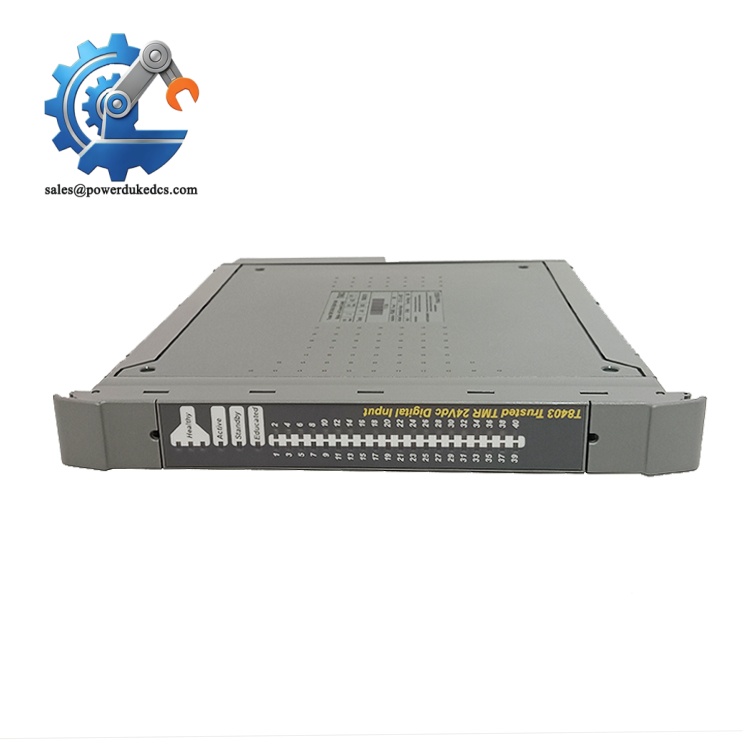

- Model & Brand: ICS Triplex T8403 Trusted TMR 24Vdc Digital Input Module. This module provides 40 digital input channels using a Triple Modular Redundant (TMR) architecture for Trusted safety systems. Each field input is triplicated internally for fault-tolerant signal processing.
- Approximate Physical Dimensions (W × H × D): Approximately 31 × 266 × 303 mm (1.2 × 10.5 × 12.0 in.).
- Estimated Shipping Weight: Approximately 1.18 kg (2.6 lb) for the module; allow additional packaging weight for ESD protection and shock isolation.
- What’s in the Box:
- ICS Triplex T8403 Trusted TMR 24Vdc Digital Input Module

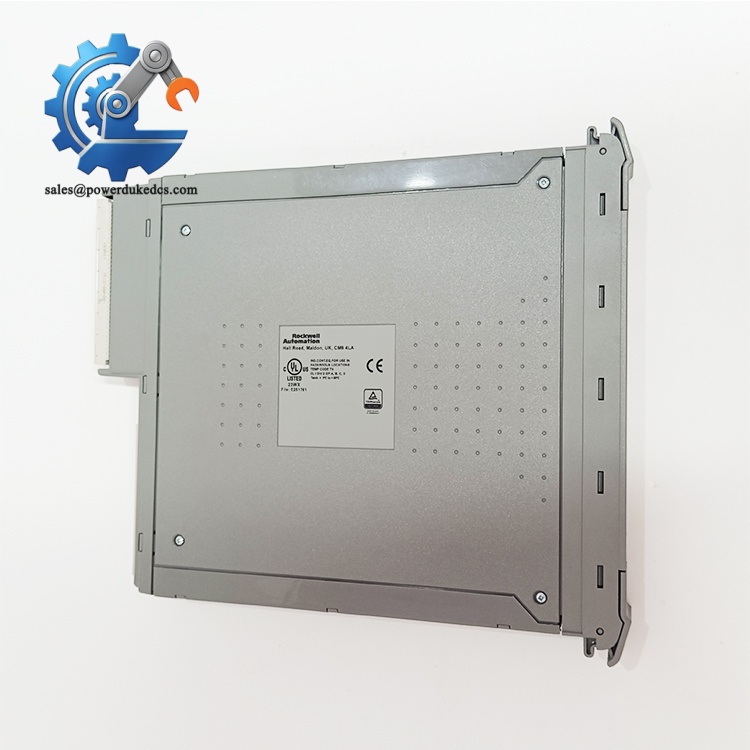

- Front panel assembly with status indicators
- Module identification label
- Anti-static (ESD) shielding bag
- Protective foam packaging
- Product documentation when supplied
Product Introduction
The ICS Triplex T8403 installs into the Trusted TMR controller chassis, occupying a dedicated I/O module position connected through the internal module bus. Verify the chassis slot assignment, keying arrangement, and backplane connections before insertion. The retaining mechanism must fully engage before power is applied (which prevents intermittent faults caused by vibration or incomplete seating).
This safety input module is intended for critical process applications where digital field signals require continuous diagnostics and fault tolerance. The T8403 processes up to 40 field input devices, provides onboard diagnostics, supports Sequence of Events (SOE) reporting with 1 ms resolution, and uses TMR processing to maintain operation during certain internal failures. Inspect the front connector, status LEDs, housing condition, and module contacts before placing a stored spare into service.
Core Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ICS Triplex / Rockwell Automation |
| Model Number | T8403 |
| Product Type | Trusted TMR 24Vdc Digital Input Module |
| Safety Architecture | Triple Modular Redundant (TMR) |
| Input Channels | 40 digital input channels |
| Input Voltage | 24 VDC nominal |
| Input Measurement | Sigma-delta input circuit with configurable thresholds |
| Isolation | Opto/galvanic isolation barrier |
| Sequence of Events Resolution | 1 ms |
| SOE Timestamp Accuracy | ±10 ms |
| Diagnostics | Automatic module and channel diagnostics |
| Line Monitoring | Configurable open/short circuit monitoring |
| Hot Replacement | Supported with approved Trusted configurations |
| Backplane Supply Voltage | 20–32 VDC |
| Maximum Power Dissipation | Approximately 29 W |
| Typical Power Requirement | Approximately 20 W backplane supply |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -25°C to +70°C |
| Relative Humidity | 10–95% RH, non-condensing |
| Dimensions | 266 × 31 × 303 mm |
| Weight | 1.18 kg |
- ICS Triplex
Global Compliance & Industry Certifications
Expected regulatory approvals and compliance considerations for the ICS Triplex include:
- CE Mark compliance for applicable Trusted safety system installations
- IEC 61508 SIL 3 capability when installed within an approved Trusted safety architecture
- UL/cUL recognition where applicable to the complete safety controller system
- ATEX/IECEx suitability only when installed as part of an approved hazardous-area protection system
- Marine approvals such as DNV GL only for specifically certified system configurations
- Industrial EMC compliance according to the complete cabinet installation requirements
The SIL 3 classification is significant because it defines the safety integrity level achievable by the validated system architecture, including hardware, diagnostics, application programming, and installation practices.
Verify specific lot certifications with OEM.
Long-Term Storage & Asset Preservation Guide
Keep the ICS Triplex inside its original anti-static (ESD) shielding bag during storage. The front connector contacts and internal electronic assemblies should remain protected from dust, moisture, and electrostatic discharge.
Maintain warehouse humidity below 60% RH to reduce oxidation risk on electrical contacts and prevent degradation of protective coatings. Store the module in a controlled environment away from corrosive gases, battery rooms, and chemical storage areas.
Before installation, inspect the module housing, retaining clips, connector pins, and LED window. Record the serial number, hardware revision, firmware status, and storage history in the spare asset database.
Physical Installation Prerequisites
- Install only in a compatible ICS Triplex Trusted TMR chassis.
- Verify correct I/O slot location before insertion.
- Confirm backplane power availability within the specified 20–32 VDC range.
- Ensure cabinet protective earth grounding is correctly bonded.
- Maintain cabinet airflow for module heat dissipation.
- Leave approximately 50 mm clearance above and below ventilation paths where practical.
- Use approved field wiring practices for 24VDC safety circuits.
- Confirm module keying and retaining hardware engagement before energization.
- Perform system diagnostics after installation.
Buyer’s FAQ (Logistics & Compliance Focus)
Q: What HS Tariff Code is commonly used for the ICS Triplex ?
A: Industrial safety input modules are commonly evaluated under electronic control equipment classifications, often within HS 8537 categories. Final classification depends on the declared function and the importing country’s customs requirements.
Q: Does Country of Origin affect importing the module?
A: Yes. COO affects customs documentation, warranty traceability, and regulated industry procurement records. Confirm origin from the module label, commercial invoice, and supplier documentation before shipment.
Q: Should shipping insurance be included for an ICS Triplex ?
A: Recommended. The module contains safety-rated electronics, precision connectors, and diagnostic hardware. Use ESD packaging, impact protection, moisture control, and receiving inspection records.
Q: Does the include the latest firmware pre-loaded?
A: Firmware availability depends on the module revision and previous system history. The hardware may contain required firmware components, but the installed Trusted system software version and compatibility must be verified before commissioning.
