- ProSoft MVI56E-MNETC | Original ControlLogix Spare Module
2. Unboxing & Physical Snapshot

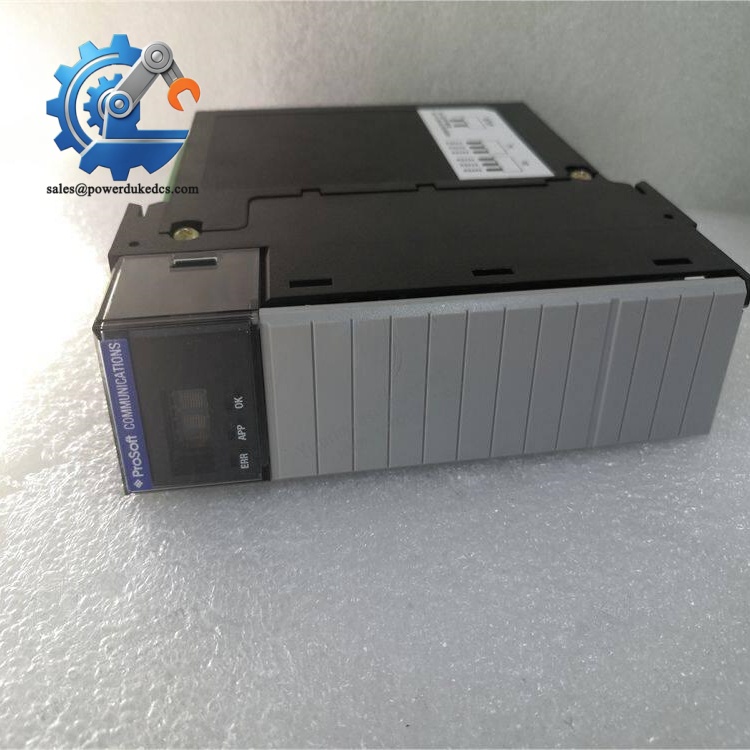

- Model & Brand: ProSoft Technology MVI56E-MNETC
- Product Type: Modbus TCP/IP Enhanced Communication Module for Rockwell Automation ControlLogix platforms. The module provides Modbus TCP/IP client and server communication between ControlLogix PAC systems and external Modbus-compatible devices, including PLCs, meters, instruments, SCADA systems, and DCS equipment.
- Approximate Physical Dimensions (W × H × D):
- Approximately 35 × 145 × 150 mm
- Single-slot ControlLogix chassis form factor.
- Estimated Shipping Weight:
- Module weight: approximately 0.3–0.5 kg
- Typical packaged shipping weight: 0.7–1.0 kg
- What’s in the Box:
- ProSoft MVI56E-MNETC communication module
- Front Ethernet RJ45 interface
- ControlLogix backplane connector
- Configuration software/documentation package when supplied
- Ethernet cable when included by supplier
- Anti-static (ESD) shielding bag
- Protective packaging
3. Product Introduction
The ProSoft MVI56E-MNETC occupies a single slot in a Rockwell Automation ControlLogix chassis, acting as a communication bridge between the ControlLogix backplane and Modbus TCP/IP networks. It transfers register data between the PAC processor and external Modbus devices without requiring the controller to directly manage the protocol stack (—which is critical in plants where legacy Modbus equipment must remain connected to newer control architectures).
This module requires careful network documentation control. Confirm the IP address, Modbus register mapping, firmware revision, and ControlLogix project configuration before replacement. Check the Ethernet port. Check the chassis slot assignment. The MVI56E-MNETC supports up to 30 client connections and up to 40 server connections, allowing simultaneous communication with multiple field devices and supervisory systems.
4. Core Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ProSoft Technology |
| Model | MVI56E-MNETC |
| Product Type | Modbus TCP/IP Enhanced Communication Module |
| Platform Compatibility | Rockwell Automation ControlLogix |
| Chassis Requirement | Single-slot 1756 ControlLogix chassis |
| Communication Protocol | Modbus TCP/IP |
| Communication Mode | Client and Server |
| Client Connections | Up to 30 |
| Server Connections | Up to 40 |
| Ethernet Interface | 10/100 Base-T RJ45 |
| Ethernet Cable | CAT5 compatible |
| Backplane Current Load | 800 mA @ 5 VDC; 3 mA @ 24 VDC |
| Memory Database | Internal Modbus data register area |
| Modbus Functions Supported | FC 1, 2, 3, 4, 5, 6, 7, 8, 15, 16, 17, 22, 23 |
| Configuration Method | ProSoft Configuration Builder |
| Diagnostics | Ethernet-based configuration and module status display |
| LED Indicators | Module status, application status, communication status |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5–95% RH non-condensing |
| Shock Resistance | 30 g operational; 50 g non-operational |
| Vibration Resistance | 5 g, 10–150 Hz |
ProSoft MVI56E-MNETC
5. ? Global Compliance & Industry Certifications
Expected regulatory approvals for the ProSoft MVI56E-MNETC include:
- CE Mark
- Indicates compliance with applicable EMC requirements for industrial communication equipment.
- UL/cUL Listed
- Applicable for approved industrial control system installations in North America.
- ATEX / IECEx
- Not normally a standalone hazardous-area communication module. Hazardous-area use requires approved enclosure, wiring methods, and complete system certification.
- Marine Approvals (DNV GL)
- May apply only when installed as part of a certified marine automation system.
For industrial networks, certification matters because communication failures can interrupt control data exchange between PLCs, instruments, and supervisory systems. A properly documented installation reduces audit risk and improves troubleshooting accuracy.
Verify specific lot certifications with OEM.
6. ? Long-Term Storage & Asset Preservation Guide
Keep the MVI56E-MNETC inside the original anti-static (ESD) shielding bag during storage. The Ethernet connector, backplane pins, and PCB components should remain protected from dust and electrostatic exposure.
Maintain warehouse humidity below 60% RH. Oxidation on the backplane connector can create intermittent communication faults after installation.
Inspect stored modules every 12–24 months. Check the RJ45 port, retaining clips, label condition, and connector pins. Record firmware revision and serial number before placing the spare into inventory.
Do not store directly on concrete floors. Use sealed cabinets or ESD-safe shelving (—small environmental controls prevent expensive troubleshooting later).
7. Physical Installation Prerequisites
- Install only in a compatible 1756 ControlLogix chassis.
- Verify chassis power supply capacity before adding the module.
- Confirm slot location matches the ControlLogix project configuration.
- Inspect the backplane connector before insertion.
- Connect protective grounding according to cabinet standards.
- Maintain cabinet airflow around the chassis.
- Leave approximately 50 mm clearance above and below ventilation areas where required by enclosure design.
- Use shielded Ethernet practices in high-noise environments.
- Verify IP address, subnet, gateway, and Modbus register mapping before commissioning.
- Perform communication diagnostics after replacement.
8. Buyer’s FAQ (Logistics & Compliance Focus)
Q: What HS Tariff Code is commonly used for the ProSoft MVI56E-MNETC?
A: Industrial communication modules are commonly reviewed under HS 8517 or HS 8538 categories depending on customs interpretation and whether the item is classified as a communication interface or PLC system component. Confirm the final code with the destination customs broker.
Q: Why does Country of Origin (COO) matter for this communication module?
A: COO affects import documentation, duty calculation, and traceability records. The commercial invoice, packing list, and certificate of origin should contain matching information.
Q: Is shipping insurance recommended for the MVI56E-MNETC?
A: Recommended. The module contains Ethernet circuitry, memory components, and a sensitive backplane connector. Transit shock or electrostatic damage may not be visible during receiving inspection.
Q: Does the MVI56E-MNETC include the latest firmware pre-loaded?
A: The module ships with factory firmware, but the correct revision depends on the ControlLogix application requirements. Verify firmware compatibility, ProSoft configuration files, and the ControlLogix project before installation.
