- ProSoft MVI56-PDPMV1 | Original Rockwell Chassis Module
2. Unboxing & Physical Snapshot
- Model & Brand: ProSoft Technology MVI56-PDPMV1 PROFIBUS DPV1 Master Communication Module for Rockwell Automation ControlLogix platforms. The module operates as a PROFIBUS master interface between PROFIBUS field devices and the ControlLogix processor backplane.
- Product Type: ControlLogix in-chassis communication module.
- Communication Protocol: PROFIBUS DPV1 Master via isolated RS-485 interface.
- Physical Dimensions (Approximate W × H × D): Approximately 33 × 138 × 112 mm (1.3 × 5.4 × 4.4 in.), standard single-slot ControlLogix module form factor.
- Estimated Shipping Weight: Approximately 0.5–2.0 kg (1.1–4.4 lb) depending on packaging configuration.
- What’s in the Box:
- ProSoft MVI56-PDPMV1 communication module
- PROFIBUS RS-485 DB-9 interface
- Configuration cable set (when supplied)
- Connector accessories
- Anti-static ESD packaging
- Product identification label
- Documentation/software media when included
3. Product Introduction
The ProSoft MVI56-PDPMV1 installs directly into a Rockwell ControlLogix chassis and occupies a single slot beside the processor or other communication modules. Mechanical fit is only one part of the installation. The module relies on clean backplane contact surfaces, correct keying, and stable cabinet conditions because communication interruptions can affect multiple PROFIBUS field devices simultaneously (which is critical in process plants with distributed motor control).
This module acts as a PROFIBUS DPV1 master, exchanging cyclic and acyclic data between PROFIBUS slaves and the ControlLogix processor. It supports up to 125 slaves with repeaters, PROFIBUS baud rates up to 12 Mbps, diagnostic data handling, and DPV1 read/write services. Check the saved configuration file before replacement. The hardware alone does not restore the PROFIBUS network; the master configuration, GSD files, and device parameters must also match the running system.
4. Core Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ProSoft Technology |
| Model Number | MVI56-PDPMV1 |
| Platform Compatibility | Rockwell ControlLogix |
| Product Type | PROFIBUS DPV1 Master Communication Module |
| Backplane Current Load | 800 mA @ 5 VDC; 3 mA @ 24 VDC |
| PROFIBUS Interface | Isolated RS-485 |
| Connector Type | 9-pin female D-shell |
| Maximum PROFIBUS Speed | 12 Mbps |
| Maximum Slaves | Up to 125 with repeater |
| Cyclic Input Data | Up to 1536 bytes |
| Cyclic Output Data | Up to 1536 bytes |
| DPV1 Support | Acyclic Read/Write, Alarm Handling |
| PROFIBUS Features | Sync, Freeze, Multicast, Broadcast |
| Configuration Interface | RS-232 configuration port |
| Configuration Connector | RJ45 to DB-9 adapter |
| Status Indicators | Module, communication, error LEDs |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity Range | 5–95% RH non-condensing |
| Shock Rating | 30 g operational |
| Vibration Rating | 5 g, 10–150 Hz |
| Mounting | ControlLogix chassis slot |
| Cooling Method | Chassis convection airflow |

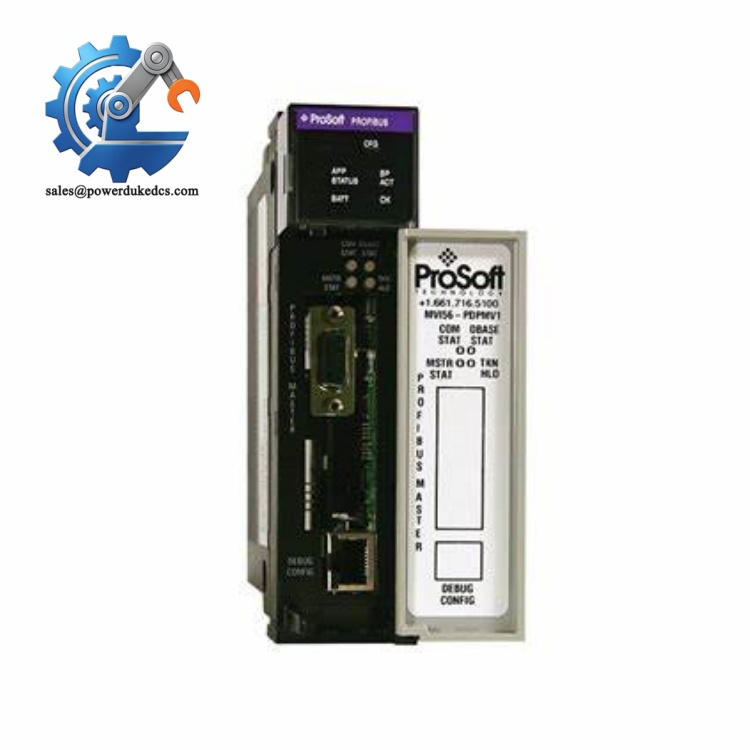

ProSoft MVI56-PDPMV1
5. Global Compliance & Industry Certifications
Expected compliance considerations for the ProSoft MVI56-PDPMV1 include:
- CE Mark — applicable for compliant industrial control installations.
- UL/cUL Recognition — typically evaluated as part of the complete ControlLogix system installation.
- RoHS Compliance — verify according to manufacturing revision and documentation.
- IEC 61158 / PROFIBUS-related standards — relevant for fieldbus communication performance.
- ATEX/IECEx — not a standalone hazardous-area certified module; installation requires a complete certified system approach.
- Marine approvals (DNV GL) — applicable only when included in an approved marine automation package.
UL/cUL compliance is important for control cabinet safety because communication modules share power and grounding environments with other automation hardware, where insulation and temperature limits must remain within approved values.
Verify specific lot certifications with OEM.
6. Long-Term Storage & Asset Preservation Guide
Store the MVI56-PDPMV1 in its original anti-static (ESD) shielding bag. The backplane connector and RS-485 interface are sensitive points; avoid touching contact surfaces with bare hands.
Maintain warehouse humidity below 60% RH. Moisture exposure can oxidize connector contacts and degrade PCB protection materials over long storage periods.
Before installation after extended storage:
- Inspect the edge connector and DB-9 interface.
- Check the housing for cracks or deformation.
- Confirm the module firmware revision.
- Verify saved PROFIBUS configuration files are available.
- Confirm compatibility with the existing ControlLogix firmware environment.
Keep spare communication modules away from strong electromagnetic sources and vibration areas.
7. Physical Installation Prerequisites
- Install only in a compatible Rockwell ControlLogix chassis.
- Disconnect power before inserting or removing the module.
- Confirm chassis slot assignment and module configuration.
- Ensure the backplane connector is clean and undamaged.
- Connect protective grounding according to cabinet standards.
- Use properly shielded PROFIBUS cable.
- Maintain cable separation from high-current motor conductors.
- Install PROFIBUS termination resistors according to network design.
- Maintain cabinet airflow clearance; allow approximately 50 mm clearance around ventilation areas where practical.
- Verify node addresses and master configuration before commissioning.
8. Buyer’s FAQ (Logistics & Compliance Focus)
Q: What HS Tariff Code is commonly used for the ProSoft MVI56-PDPMV1?
A: Industrial communication modules are commonly reviewed under HS 8517 or HS 8538 categories depending on customs interpretation. The final classification depends on the declared function and destination-country regulations.
Q: Does Country of Origin (COO) affect importing this ProSoft module?
A: Yes. COO affects customs duty treatment, supplier qualification records, and industrial asset traceability. Ensure the COO information matches across the commercial invoice, packing list, and product documentation.
Q: Is shipping insurance recommended for the MVI56-PDPMV1?
A: Recommended. Although compact, the module contains PCB assemblies, communication electronics, and precision connectors. Shock, ESD exposure, or moisture during transport may create intermittent failures.
Q: Does the MVI56-PDPMV1 include the latest firmware pre-loaded?
A: Firmware depends on the specific hardware revision supplied. The module also requires the correct PROFIBUS master configuration, device GSD files, and ControlLogix application setup before operation. Verify the firmware and configuration backup before replacement.
Lifecycle Note: The MVI56-PDPMV1 is a legacy ControlLogix communication module. Maintain a verified spare, preserve configuration backups, and record firmware revisions because replacement commissioning depends heavily on the existing PROFIBUS project files.
