ProSoft PTQ-PDPMV1 | Original Automation Interface Hardware

1. ProSoft PTQ-PDPMV1 | Original Automation Interface Hardware

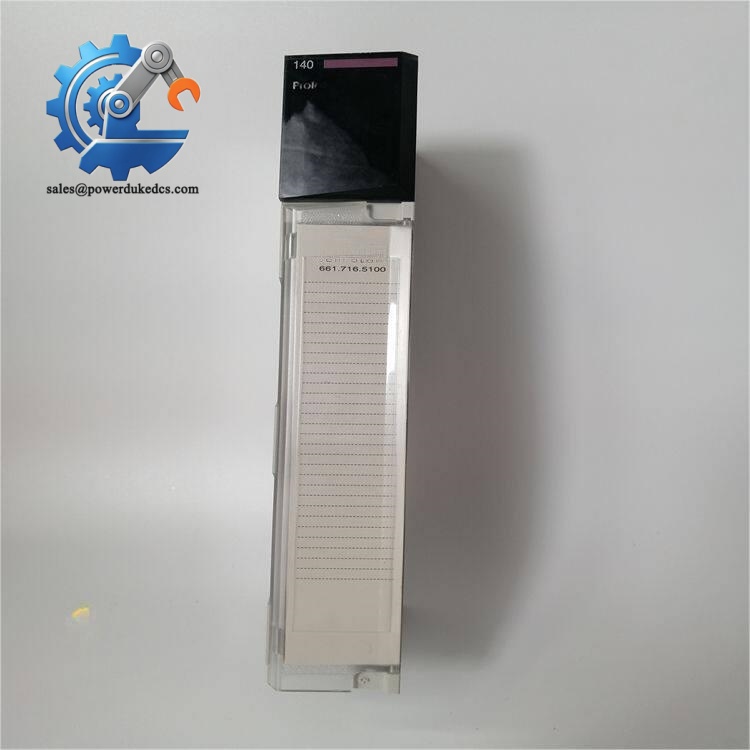

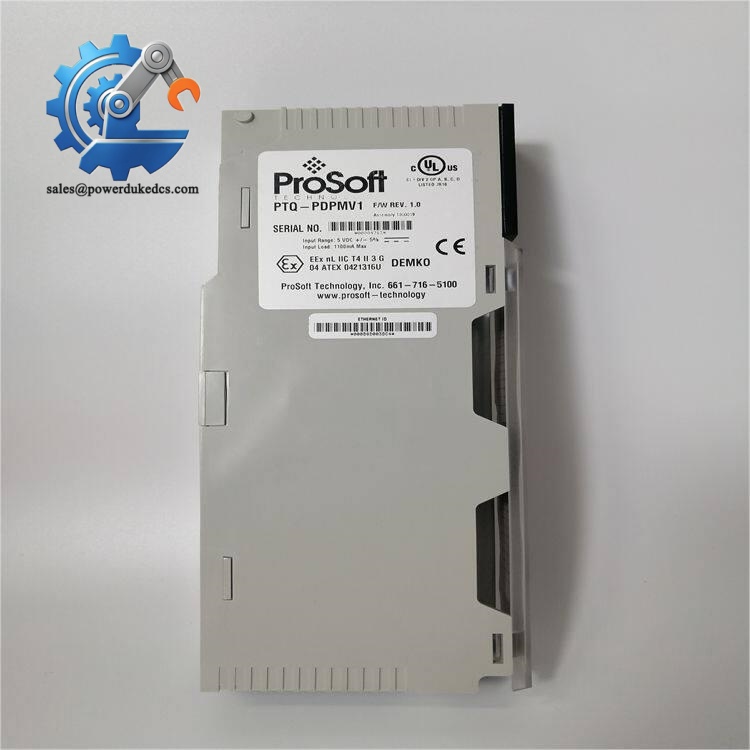

Unboxing & Physical Snapshot

• Brand & Model: ProSoft Technology PTQ-PDPMV1
• Product Family: ProTalk® Quantum PROFIBUS DPV1 Master Communication Module.
• Product Type: PROFIBUS DP Master Network Interface Module for Modicon Quantum PLC platforms.
• Primary Function: Provides PROFIBUS DPV1 master communication between Modicon Quantum processors and PROFIBUS DP/DPV1 slave devices.
• Compatible Platform: Modicon Quantum / Unity PLC systems.
• Communication Interface: PROFIBUS DPV1 RS-485 interface with isolated connection.
• Maximum Slave Capacity: Up to 125 PROFIBUS slave devices.
• Baud Rate Support: 9.6 kbps to 12 Mbps with automatic baud-rate detection.
• Approximate Physical Dimensions (W × H × D): Approximately 40 × 130 × 100 mm (single Quantum rack module format).
• Estimated Shipping Weight: Approximately 0.42 kg including standard packaging.
• Mounting Style: Single-slot installation in a Modicon Quantum backplane.
• Mechanical Features:
  • Industrial plastic module housing
  • Front status LED indicators
  • 9-pin D-shell PROFIBUS connector
  • Quantum backplane connector
  • Configuration interface connection
• Cooling Method: Passive convection cooling through cabinet airflow.
• Operating Temperature: Approximately 0°C to +60°C.
• What’s in the Box:
  • ProSoft PTQ-PDPMV1 module
  • ESD protective packaging
  • Configuration cable/accessories when supplied
  • Documentation if included

Product Introduction

The ProSoft PTQ-PDPMV1 installs directly into a Modicon Quantum rack as a dedicated PROFIBUS communication interface, allowing the PLC processor to exchange cyclic and acyclic data with distributed field devices. The module operates as a PROFIBUS DPV1 master and supports Class 1 and Class 2 DPV1 services for parameter access and diagnostics (which is important when maintaining large installed PROFIBUS networks).

This module should be managed as a controlled communication asset. Inspect the backplane connector, PROFIBUS port, label information, and configuration records before installation. Check the firmware revision and saved configuration file. A replacement communication module may appear identical externally but still require matching network parameters before returning the system to operation.

Core Technical Specifications

ProSoft PTQ-PDPMV1

Global Compliance & Industry Certifications

Expected compliance considerations for the ProSoft PTQ-PDPMV1 include:

• CE Mark — applicable for electromagnetic compatibility requirements in industrial environments.
• UL/cUL Recognition — may apply when installed as part of an approved industrial control panel.
• RoHS Compliance — applicable to supported manufacturing revisions.
• ATEX/IECEx Considerations — this module is not typically a hazardous-area certified device; hazardous locations require certified enclosures and system-level approval.
• Marine Approvals (DNV GL) — require confirmation for marine automation applications.

EMC compliance is important for PROFIBUS communication hardware because signal integrity can be affected by electrical noise from drives, motors, and switching equipment.

Verify specific lot certifications with OEM.

Long-Term Storage & Asset Preservation Guide

• Keep the inside its original ESD shielding bag until installation. The backplane connector and communication circuitry should remain protected from static discharge.
• Maintain warehouse humidity below 60% RH. Moisture can degrade connector contacts and internal PCB insulation properties.
• Store the module in a clean cabinet away from dust, vibration, and corrosive chemical exposure.
• Preserve the original configuration backup file together with the spare module record. PROFIBUS master parameters, slave addresses, and network settings are critical recovery information.
• Inspect the 9-pin PROFIBUS connector before installation. Bent pins or contamination can create communication faults that are difficult to diagnose.

Physical Installation Prerequisites

• Install the only in a compatible Modicon Quantum backplane.
• Confirm rack power capacity before adding the communication module.
• Leave sufficient cabinet clearance for natural convection cooling.
• Maintain approximately 50 mm clearance above and below the rack assembly where cabinet airflow design requires it.
• Connect PROFIBUS shielding according to the network installation standard.
• Ensure the RS-485 cable grounding and termination resistors are correctly installed.
• Verify slave addresses and saved configuration before placing the network online.
• Use ESD protection when inserting or removing the module.


  ProSoft PTQ-PDPMV1

Buyer’s FAQ (Logistics & Compliance Focus)

Q: What HS Tariff Code is commonly used for ProSoft ?

A: Industrial PLC communication modules are commonly reviewed under HS 8537 classifications for electrical control apparatus. Some suppliers declare PLC interface modules under 853710 categories, but the final classification depends on customs interpretation.

Q: Why does Country of Origin (COO) matter for this communication module?

A: COO affects customs clearance, duty calculation, export documentation, and automation asset traceability. The COO should match the commercial invoice, packing list, and certificate of origin when required.

Q: Is shipping insurance recommended for the ?

A: Recommended. The module is lightweight, but the PCB assembly, backplane connector, and PROFIBUS interface components can be damaged by shock, moisture, or electrostatic exposure during transport.

Q: Does the include the latest firmware pre-loaded?

A: The module is supplied with factory-installed firmware according to its production revision. Confirm firmware compatibility and restore the saved PROFIBUS configuration before commissioning.
