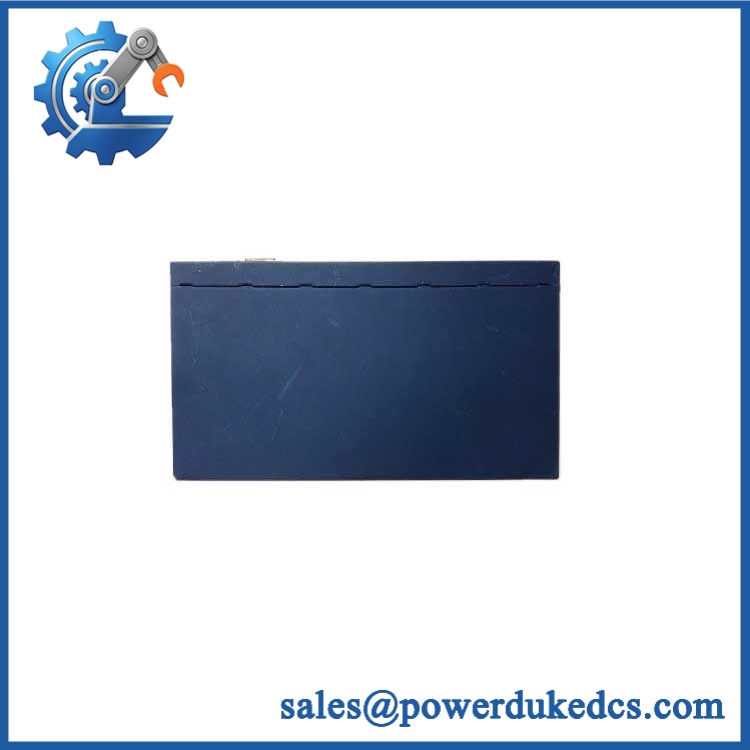

TRICONEX 2000361-001 | Thermal Management Spare

Unboxing & Physical Snapshot

• Model & Brand: TRICONEX 2000361-001
• Part type: Chassis heat-management baffle for Tricon systems.
• Primary function: Controls airflow and supports thermal management around Tricon chassis installed in vented or non-vented enclosures.
• OEM identification: Triconex technical documentation explicitly identifies 2000361-001 as the recommended baffle part number for Tricon chassis heat management.
• Physical dimensions: Verify from the actual baffle and applicable chassis drawing; no reliable standalone dimensional specification was located.
• Estimated shipping weight: Typically a lightweight sheet-metal/mechanical component; weigh the actual packed part for freight documentation.
• What’s in the box: 2000361-001 baffle and mounting hardware only if supplied with the inventory lot.
• Receiving inspection: Check the part number, mounting holes, bends/flanges, surface condition, and any corrosion or deformation.
• Asset classification: Mechanical/thermal-management accessory rather than an electronic I/O or processor module.

Product Introduction

Environmental hook: Tricon chassis generate heat that must be managed within the control cabinet, particularly when multiple chassis or high-density I/O configurations are installed. The 2000361-001 baffle is specifically identified by Triconex as a chassis heat-management component.

Its role is easy to underestimate. A missing or incorrectly positioned airflow baffle can alter the cabinet’s thermal pattern, leaving electronics exposed to higher temperatures even though the chassis itself remains electrically functional. Triconex documentation states that additional heat-management measures are required for enclosure temperatures above 122°F (50°C).

Core Technical Specifications

TRICONEX 2000361-001

Triconex documentation specifically recommends the 2000361-001 baffle when mounting Tricon chassis in vented or non-vented enclosures. For cabinet temperatures exceeding 50°C, the documentation calls for further thermal provisions such as louvers, enlarged ventilation openings, lower-density filters, or continuously operating redundant fans.

? Global Compliance & Industry Certifications

Because 2000361-001 is a mechanical thermal-management accessory, certification should be evaluated as part of the complete Tricon chassis/enclosure installation.

• CE Mark: Verify the applicable Tricon system declaration and whether the baffle forms part of the documented installation configuration.
• UL/cUL: Verify the complete cabinet/chassis assembly against applicable North American requirements.
• ATEX / IECEx: The baffle itself should not be represented as independently hazardous-area certified. Hazardous-area compliance belongs to the complete certified installation.
• Marine approvals: Verify DNV or other classification requirements at the system/cabinet level where applicable.
• Thermal compliance: Maintain the manufacturer’s specified cabinet thermal conditions; the baffle does not replace required cooling provisions.

This component has no firmware or electrical rating to verify, but its physical installation can affect equipment temperature, making correct identification important for an SIS cabinet.

Verify specific lot certifications with OEM.

? Long-Term Storage & Asset Preservation Guide

• Prevent corrosion. Store the baffle indoors in a dry environment, preferably below 60% RH, with protection from condensation and corrosive chemicals.
• Protect the geometry. Do not stack heavy equipment on top of the baffle. Bent flanges or distorted mounting holes can change the intended airflow path.
• Preserve mounting hardware. Keep screws, brackets, and other associated hardware with the part where supplied. A missing fastener can result in an improvised installation that changes the baffle position.

Unlike electronic Tricon modules, this spare has no firmware or battery-storage issue. Mechanical condition is the preservation priority.

Physical Installation Prerequisites

• Install the 2000361-001 only in the Tricon chassis/enclosure arrangement for which the baffle is specified.
• Follow the applicable Tricon chassis mechanical drawing for mounting location and orientation.
• Do not drill, trim, bend, or otherwise modify the baffle without an approved engineering change.
• Maintain the required airflow path around the chassis and avoid blocking ventilation openings.
• Tricon documentation specifies that unused chassis slots should be fitted with Model 8105 blank I/O slot panels to maintain proper airflow.
• Provide adequate clearance for cabinet doors, communication cables, chassis removal, and service access.
• The Tricon chassis includes a 1/4-20 threaded chassis ground; grounding should follow the complete chassis installation requirements rather than treating the baffle itself as a grounding component.
• For cabinet temperatures above 122°F (50°C), evaluate the additional thermal-management measures specified by Triconex rather than relying on the baffle alone.

TRICONEX 2000361-001

Buyer’s FAQ

Q: What HS Tariff Code should be used for TRICONEX 2000361-001?
A: Classification should reflect its actual identity as a mechanical chassis thermal-management component/baffle. Do not classify it as an electronic Tricon I/O module. Confirm the final tariff heading with the importing country’s customs rules and retain the technical description used for the determination.

Q: What Country of Origin should be declared?
A: Use the actual manufacturing origin supported by the physical marking, OEM documentation, or supplier declaration. The Triconex brand and seller’s location do not establish COO.

Q: Does this part need shipping insurance?
A: Normally the transport value is much lower than that of an electronic Tricon module, but insurance may still be appropriate when shipped as part of a critical SIS spare package. Protect the baffle from bending and corrosion during transit.

Q: Does 2000361-001 contain firmware?
A: No. It is a passive mechanical heat-management baffle. Its purpose is to support airflow and thermal control around the Tricon chassis; there is no firmware, battery, or electrical power requirement associated with the baffle itself.
