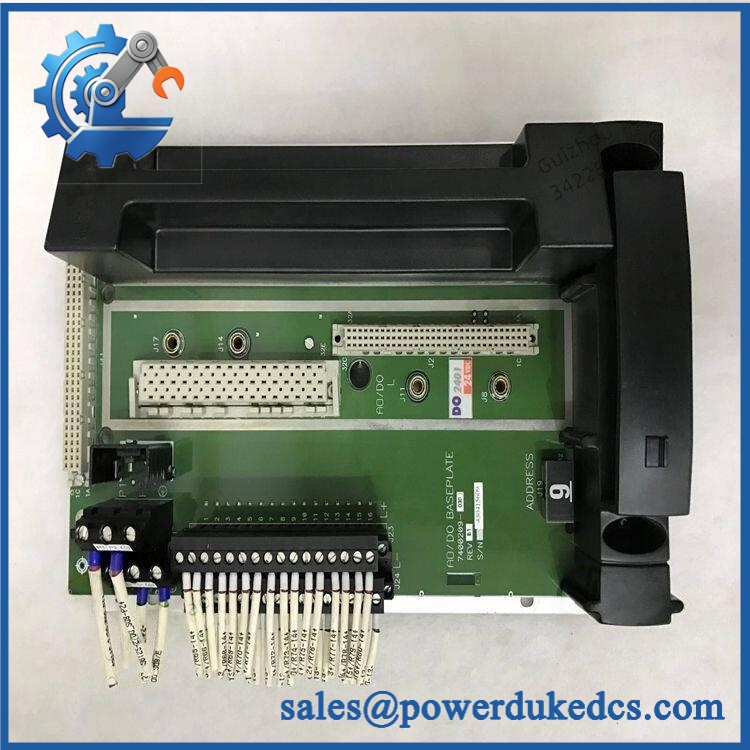

Triconex 2401H | Supervised Output Baseplate | Asset

Unboxing & Physical Snapshot

• Model & Brand: Triconex 2401H, identified as a Digital Output Baseplate Kit, High Current. Triconex technical documentation associates 2401H with the 5411H Digital Output TriPak, Supervised, High Current.
• Physical Dimensions: Verify the OEM mechanical drawing for the specific kit revision. Do not substitute dimensions from the 7400219-030 DO2401H module, which is a different item.
• Estimated Shipping Weight: Verify actual packed weight before freight booking. A baseplate kit should not be assigned the published weight of the separate DO module.
• What’s in the Box: 2401H baseplate kit and associated mounting/interface hardware only where confirmed by the packing list. Do not assume the 5411H output TriPak is included.
• Receiving inspection: Check the part number, mounting surface, terminal/interface condition, retaining hardware, labeling, and any included accessories.

Product Introduction

The Triconex 2401H is a baseplate rather than the digital-output electronics themselves. Triconex technical documentation maps the 5411H Digital Output TriPak, Supervised, High Current to the 2401H Digital Output Baseplate Kit, High Current.

That distinction is critical for inventory control. The 5411H is the output module; 2401H is the associated baseplate kit. A purchasing database that labels 2401H simply as a “digital output module” can therefore create a serious kitting and replacement error. The baseplate must be matched to the correct TriPak/module and system configuration (especially in a safety-related installation).

Core Technical Specifications

Triconex 2401H

The available Triconex technical guide explicitly lists 2401H as the “Digital Output Baseplate Kit, High Current” and pairs it with the 5411H Digital Output TriPak, Supervised, High Current.

Do not confuse 2401H with DO2401H 7400219-030. The latter is marketed as a complete digital-output module, while 2401H is identified in the Triconex technical documentation as a baseplate kit.

Global Compliance & Industry Certifications

• IEC 61508 / SIL: The baseplate itself should not be assigned an independent SIL rating. Functional-safety capability depends on the validated Triconex architecture, associated modules, firmware, application, and installation.
• IEC 61511: Process SIS installations should remain within the site’s approved safety lifecycle and management-of-change procedures.
• CE Mark: Verify the applicable Triconex/Schneider Electric declaration for the complete hardware configuration.
• UL/cUL: Verify product-specific certification for the applicable Triconex assembly.
• ATEX/IECEx: Do not assume hazardous-area suitability from the 2401H designation. Verify the complete installation and associated certified equipment.
• Marine approvals: DNV, ABS, LR, or equivalent approval requires exact certificate verification.
• EMC: Correct cabinet grounding, shielding, wiring segregation, and module/baseplate installation remain necessary.

The compliance boundary should be documented correctly: 2401H is an interface/baseplate component, not the complete safety-output function.

Verify specific lot certifications with OEM.

Long-Term Storage & Asset Preservation Guide

1. Protect the mating surfaces. Keep the 2401H in its original protective packaging. Prevent dust, moisture, oil, and fingerprints from reaching electrical contacts and terminal interfaces.
2. Protect mechanical features. Store the baseplate so that terminal blocks, retaining clips, mounting holes, and connector interfaces cannot be bent or loaded by heavier inventory (a mechanically damaged baseplate may pass visual inspection yet fail during module installation).
3. Maintain kit integrity. Keep all supplied mounting hardware and accessories with the 2401H. Do not separate the baseplate from its associated hardware and later represent the incomplete assembly as a complete kit.

Physical Installation Prerequisites

• Compatibility: Verify that the 2401H is being used with the intended 5411H high-current supervised Digital Output TriPak.
• Mounting: Follow the Triconex TriPak/baseplate mechanical arrangement; do not treat the part as a generic DIN-rail component.
• Clearance: Maintain sufficient clearance for module insertion/removal, terminal access, wiring bend radius, and cabinet cooling.
• Grounding: Follow the applicable Triconex cabinet grounding and bonding requirements.
• Wiring: Match terminal assignments against the approved wiring drawings. Verify field-device voltage and current requirements separately.
• Thermal calculation: Base cabinet heat-load calculations on the complete installed module/baseplate assembly, not the bare baseplate.
• Inspection: Check retaining hardware and electrical contacts before installing the output module.
• Commissioning: After assembly, verify channel wiring and the approved cause-and-effect logic before returning the safety function to service.

Buyer’s FAQ

Q: What HS tariff code should be used for Triconex 2401H?
A: Do not classify it as a complete digital-output module merely because it is associated with a DO system. The technical description should identify it as a digital output baseplate kit, then the importing-country customs broker should determine the applicable HS/national tariff classification.

Q: What Country of Origin should be declared?
A: Use the actual manufacturing Country of Origin (COO) supported by the product marking, manufacturer documentation, or Certificate of Origin. Do not infer COO from the country where the distributor ships the spare.

Q: Should shipping insurance be purchased?
A: Consider insurance when the baseplate is difficult to replace or plant downtime is significant. Protect the terminal and mating interfaces with suitable packaging because mechanical damage can make an otherwise electrically sound assembly unusable.

Q: Does the 2401H contain the latest firmware?
A: No firmware should be assumed for the baseplate itself. The 2401H is identified as the Digital Output Baseplate Kit, High Current; firmware considerations apply to the associated Triconex electronic module/controller.

Asset-control note: Record TRICONEX 2401H as a “Digital Output Baseplate Kit, High Current”, not as a generic digital-output module. The associated 5411H Digital Output TriPak, Supervised, High Current is a separate inventory item.
