Description
Unboxing & Physical Snapshot
- Model & Brand: TRICONEX 3000510-380
- Equipment type: Industrial Controller Interface Module / interface module. Current part listings consistently identify 3000510-380 as a Triconex interface/controller-interface assembly.
- Tricon relationship: The Tricon technical guide identifies 3000510-380 as the ETA (Enhanced Termination Assembly) associated with 9563-810. The corresponding field cable is 4000093-310.
- Physical dimensions: Verify the exact mechanical drawing and enclosure revision before cabinet planning.
- Estimated net weight: Approximately 0.9–2.0 kg, depending on whether the listing refers to the module alone or the packaged assembly. One current listing specifies 2 kg shipping weight, while another reports 900 g.
- Estimated shipping weight: Allow approximately 2–3 kg packed until the actual unit is weighed.
- What’s in the box: 3000510-380 interface assembly; associated cable or termination hardware only if explicitly included in the supplied lot.
- Receiving inspection: Record the complete part number, hardware revision, serial/date code, connector condition, and any associated 9563-810 / 4000093-310 identifiers.
3. Product Introduction
Architecture hook: The TRICONEX 3000510-380 is part of the Tricon termination/interface architecture. The Tricon technical guide maps 9563-810 → 3000510-380 ETA → 4000093-310 cable, making the exact relationship between the interface assembly, termination panel, and field wiring important during replacement.
Do not treat the 3000510-380 as an interchangeable generic controller card. Its compatibility depends on the associated termination architecture and installed Tricon configuration. Current aftermarket listings use descriptions such as “Industrial Controller Interface Module” and “Controller Interface Module,” but the OEM cross-reference provides a more useful identification basis for maintenance records.
4. Core Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | TRICONEX |
| Product Family | Tricon Safety System |
| Part Number | 3000510-380 |
| Product Type | Controller / Interface Module |
| Associated Termination Panel | 9563-810 |
| Associated Field Cable | 4000093-310 |
| Architecture | Tricon TMR |
| Primary Function | Interface between Tricon electronics and termination/field wiring architecture |
| Power Requirement | Verify exact installation |
| Communication Interface | Verify exact application |
| I/O Function | Determined by associated termination architecture |
| Dimensions | Verify OEM mechanical drawing |
| Net Weight | Approximately 0.9 kg reported; verify actual unit |
| Shipping Weight | Approximately 2 kg reported |
| Operating Temperature | Verify OEM specification |
| Storage Temperature | Verify OEM specification |
| Firmware | Verify whether applicable to exact assembly |
| Hardware Revision | Record actual unit |
| Certification | Verify exact revision/system |

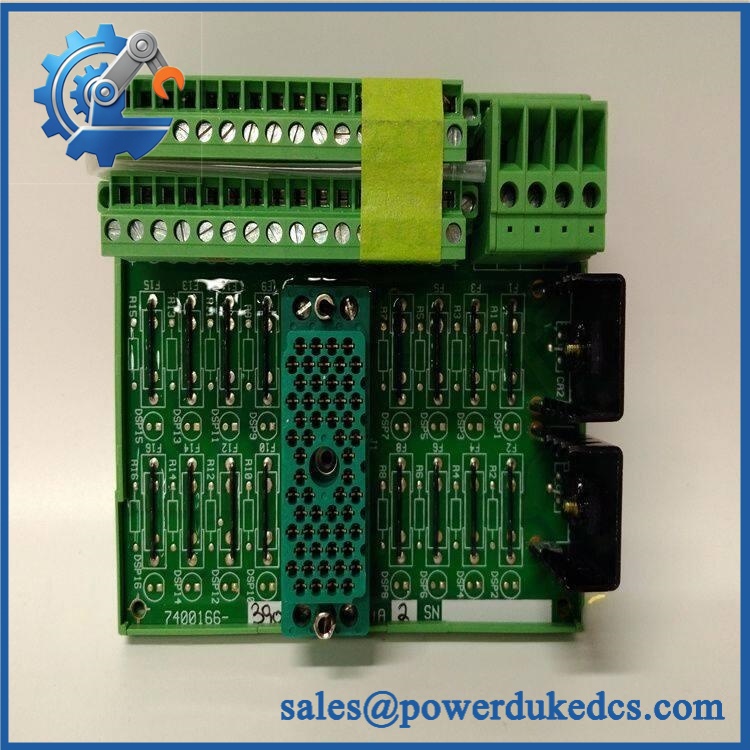

TRICONEX 3000510-380
The strongest technical identification available is the OEM-style cross-reference: 9563-810 uses ETA 3000510-380 and cable 4000093-310.
5. ? Global Compliance & Industry Certifications
For this Triconex interface hardware, certification should be evaluated against the complete safety-system configuration.
- CE Mark: Verify the applicable Triconex/Schneider Electric declaration for the exact hardware revision.
- UL/cUL: Verify the applicable North American certification and installation conditions.
- IEC 61508 / SIL: Do not assign an independent SIL rating to the 3000510-380. Its safety significance derives from its use within the evaluated Tricon system.
- ATEX / IECEx: Do not assume hazardous-area approval from the part number. Verify the complete certified installation, including field termination and associated barriers where applicable.
- Marine approvals: DNV or equivalent approval must be confirmed for the exact hardware and application.
- EMC: Follow the Tricon system’s grounding, cable-routing, shielding, and cabinet requirements.
For audit purposes, retain the 3000510-380 part number together with the associated 9563-810 termination-panel and 4000093-310 cable records. That linkage is more useful than recording the interface module as an isolated spare.
Verify specific lot certifications with OEM.
6. ? Long-Term Storage & Asset Preservation Guide
- Protect the connectors. Keep the interface module in its original ESD packaging and protect mating contacts from dust, moisture, and oxidation.
- Control humidity. Maintain a clean warehouse environment, preferably below 60% RH, with no condensation. Connector oxidation can create intermittent interface faults after years of storage.
- Preserve the configuration identity. Keep the 3000510-380, associated termination-panel information, hardware revision, and any supplied cable documentation together. This prevents a physically compatible-looking spare from being issued without its required interface components.
Before energization, inspect the connector surfaces, enclosure, mounting hardware, and identification labels. Do not assume that a visually clean legacy module is electrically ready for immediate service.
7. Physical Installation Prerequisites
- Verify that the installed architecture calls for 3000510-380 with the applicable 9563-810 termination panel.
- Confirm the associated 4000093-310 cable where the documented configuration requires it.
- Inspect all connectors for bent contacts, oxidation, contamination, or damaged locking mechanisms.
- Install the module using the specified Tricon mounting arrangement; do not modify the enclosure or connector assembly.
- Maintain adequate clearance for cable bending, connector access, module removal, and cabinet ventilation.
- Keep interface/field wiring separated from high-energy switching and motor circuits as required by the system installation design.
- Verify cabinet grounding and bonding before energization.
- Confirm the termination-panel channel assignment and approved Tricon configuration before placing the interface assembly into service.
8. Buyer’s FAQ
Q: What HS Tariff Code should be used for TRICONEX 3000510-380?
A: Classification should be based on its confirmed function as a Triconex industrial controller/interface assembly. Do not classify it simply as a generic PLC module. The associated termination-panel and cable relationship should be retained as technical evidence for the customs classification.
Q: What Country of Origin should be declared?
A: Use the actual manufacturing origin supported by the physical label, OEM documentation, or supplier declaration. The Triconex brand and seller’s shipping location do not establish COO.
Q: Should shipping insurance be purchased?
A: For a critical Triconex SIS spare, insurance is reasonable where replacement cost or downtime exposure is significant. Use ESD protection, impact-resistant packaging, and connector protection, then photograph the serial number and physical condition before shipment.
Q: Does 3000510-380 contain the latest firmware?
A: Do not assume it does. Current technical listings identify it as an interface/controller-interface module, while the Tricon technical cross-reference identifies it as the ETA associated with 9563-810. Record the actual hardware revision and any firmware information available on the physical assembly before commissioning.
