Description
Unboxing & Physical Snapshot
- Model & Brand: TRICONEX 3000656-210C1R
- Part number: 3000656-210C1R
- Equipment type: Triconex I/O/interface assembly; verify the exact functional description against the physical OEM label before installation.
- Platform: Triconex/Trident family — verify the applicable platform from the chassis and associated termination hardware.
- Physical dimensions: Verify the applicable mechanical drawing; do not use dimensions from a visually similar Triconex assembly.
- Estimated shipping weight: Verify by scale. A reliable OEM shipping weight should be retained for freight and customs documentation.
- What’s in the box: 3000656-210C1R assembly; cables, termination hardware, mounting hardware, and accessories only when explicitly included in the lot.
- Receiving inspection: Photograph the complete nameplate, revision/date code, serial number, connector arrangement, PCB markings, and any associated cable or termination part numbers.
- Inventory warning: Preserve the suffix C1R exactly. Do not shorten the inventory record to
3000656-210.
Product Introduction
Architecture hook: The TRICONEX 3000656-210C1R should be managed as an exact interface hardware identity, rather than as a generic PLC or I/O card. The suffix is part of the identification and may distinguish the supplied assembly from other 3000656 variants.
For a safety-system spare, that distinction is not cosmetic. Hardware revision, termination compatibility, connector pinout, and approved system configuration all need to agree before installation. If the physical label does not clearly identify the complete part number, quarantine the item for engineering verification rather than issuing it as an equivalent replacement.
Do not infer electrical ratings from the part number. The 3000656-210C1R identifier should first be cross-checked against the physical assembly and its associated Triconex documentation.

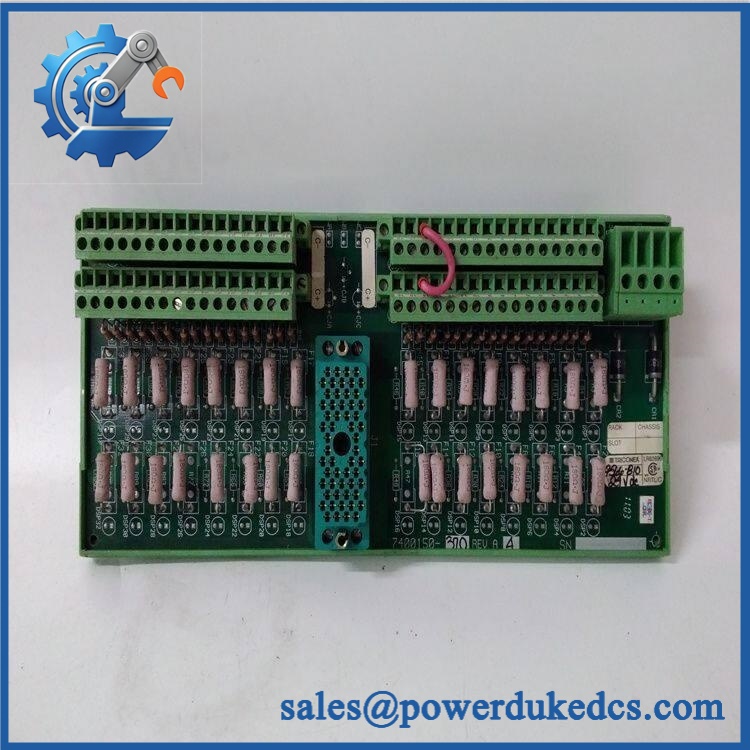

TRICONEX 3000656-210C1R
? Global Compliance & Industry Certifications
For this type of Triconex safety-system hardware, certification should be controlled at both the component and complete-system levels.
- CE Mark: Verify the applicable Triconex/Schneider Electric declaration for the exact hardware revision.
- UL/cUL: Verify the applicable North American certification and installation conditions.
- IEC 61508 / SIL: Do not assign an independent SIL rating to 3000656-210C1R unless the applicable certification documentation specifically supports that claim.
- ATEX / IECEx: Do not assume hazardous-area suitability from the Triconex name alone. Verify the complete certified installation.
- Marine approvals: DNV or another marine classification must be confirmed for the exact hardware and system configuration.
- EMC: Verify the applicable system requirements for grounding, shielding, cable routing, and cabinet installation.
For an audit-controlled spare, retain the complete part number, suffix, hardware revision, serial number, COO evidence, and applicable certification references as one asset record.
Verify specific lot certifications with OEM.
? Long-Term Storage & Asset Preservation Guide
- Maintain ESD protection. Store the assembly in its original ESD shielding bag or equivalent packaging, especially where exposed electronic connectors are present.
- Control humidity. Keep storage conditions clean and dry, preferably below 60% RH, and prevent condensation during temperature changes.
- Protect connector interfaces. Do not allow the assembly to sit directly on the backplane or connector face. Use the OEM protective caps or suitable non-contaminating protection where provided.
Keep the original label intact. For legacy SIS hardware, the revision and suffix can be as important as the base part number when determining interchangeability.
Physical Installation Prerequisites
- Confirm the exact Triconex chassis and slot/interface location associated with 3000656-210C1R.
- Verify the complete part number, including C1R, against the approved system bill of materials.
- Confirm connector keying, pinout, and mating hardware before insertion.
- Verify associated termination assemblies and field cables rather than assuming compatibility.
- Maintain cabinet clearance for connector access, cable bend radius, module removal, and ventilation.
- Protect signal wiring from high-energy power conductors in accordance with the approved cabinet design.
- Verify cabinet grounding and bonding before energization.
- Inspect all connector contacts for corrosion, bent pins, contamination, or damaged locking mechanisms.
- Record the installed hardware revision before commissioning.
- Complete the applicable Triconex diagnostic and configuration checks before returning the SIS to service.
Buyer’s FAQ
Q: What HS Tariff Code should be used for TRICONEX 3000656-210C1R?
A: The final HS classification should be based on the confirmed technical function of the assembly. Do not automatically classify it as a generic PLC module; first establish whether the item is an I/O interface, termination-related assembly, communication component, or another controlled hardware category.
Q: What Country of Origin should appear on the commercial invoice?
A: Use the actual manufacturing origin supported by the physical nameplate, OEM documentation, or supplier declaration. The seller’s warehouse location does not establish COO.
Q: Should this spare be insured during shipment?
A: For a critical SIS component, insurance is prudent when replacement cost or operational impact is material. Use ESD shielding, impact protection, connector protection, and internal immobilization, then photograph the complete unit before dispatch.
Q: Does 3000656-210C1R include the latest firmware?
A: Do not assume it does. First establish whether this exact assembly contains programmable electronics. If firmware applies, record the actual firmware revision and hardware revision before installation; the C1R suffix alone does not establish firmware currency.
