Description

Unboxing & Physical Snapshot

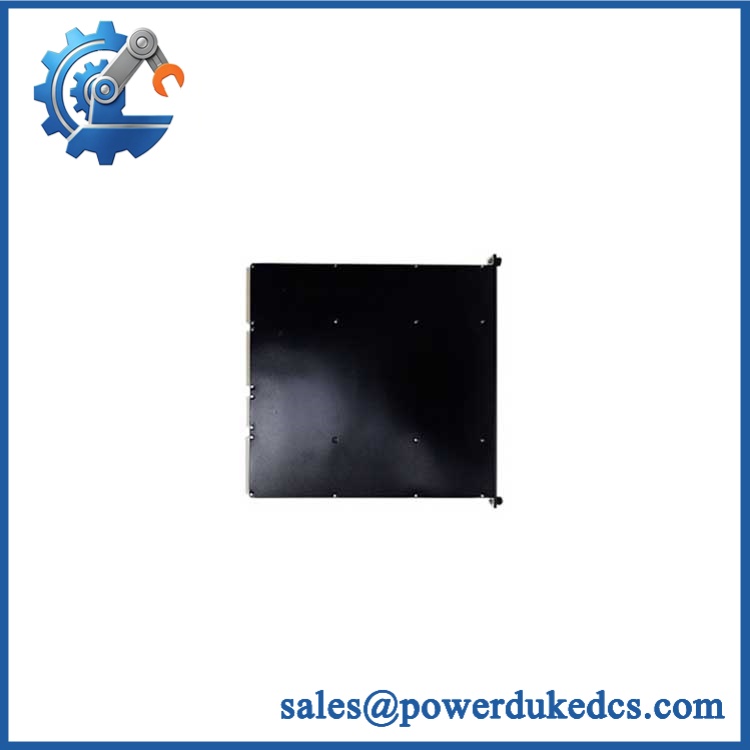

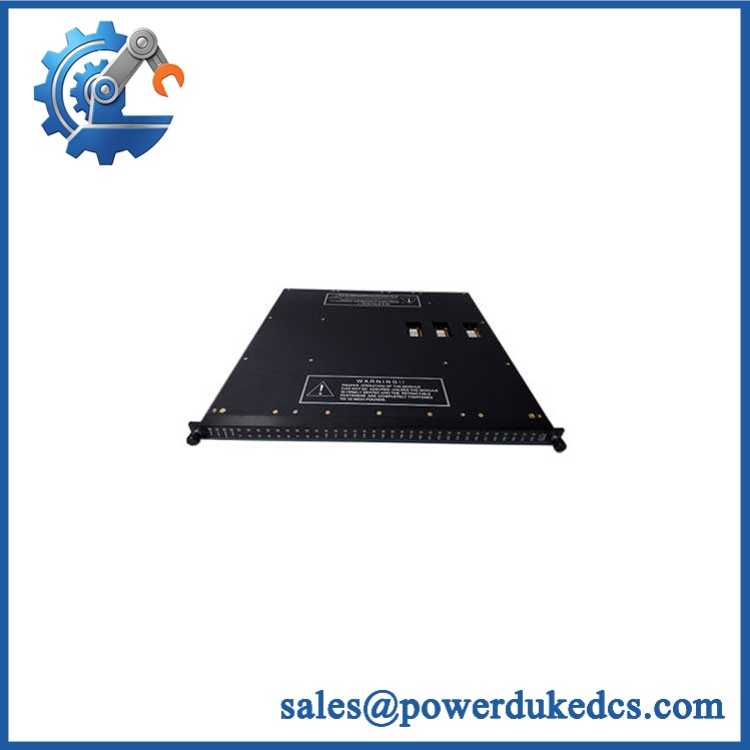

• Model & Brand: Triconex 3664 — Dual Digital Output (DDO) module for Tricon safety-instrumented systems.
• Function: Provides 32 commoned digital outputs using dual serial output architecture. It is intended primarily for de-energize-to-trip control programs.
• Physical Dimensions: Exact W × H × D dimensions should be taken from the applicable Tricon chassis/module mechanical drawing. Do not substitute dimensions from the 3674 or another Tricon I/O module.
• Estimated Shipping Weight: Approximately 0.8 kg net based on a current supplier listing; allow roughly 1.2–1.5 kg gross for ESD protection and export packaging.
• What’s in the Box: 3664 DDO module and protective packaging when supplied as a standalone spare. The external termination panel (ETP), system cable, and field wiring are separate items and should not be assumed included.
• Receiving Inspection: Record the complete model number, serial number, hardware revision, front-panel condition, status LEDs, keying features, and any certification markings.

Product Introduction

Compliance Hook

The 3664 is safety-system I/O hardware, not a conventional PLC output card. Its dual digital-output architecture is designed for Tricon systems where diagnostic coverage and fault behavior are part of the overall safety architecture. Tricon documentation specifically identifies the 3664/3674 family as dual digital output modules with a nominal 24 VDC supply.

There is an important application restriction. Tricon documentation warns that 3664 and 3674 are not recommended for energize-to-trip applications, because certain hardware faults can leave an output stuck OFF (de-energized). That distinction must be reconciled with the site’s approved safety philosophy before substitution.

Core Technical Specifications

Triconex 3664

The output switches are self-protected, so field termination does not require conventional output fuses for this module. The documented point isolation is 1,500 VDC minimum, while each output can handle up to 2 A under the specified conditions.

The module’s electrical behavior is safety-relevant. In particular, a stuck-OFF condition can produce a de-energized output; therefore, the 3664 should not be substituted based only on voltage and point count.

? Global Compliance & Industry Certifications

• CE Mark: Verify the applicable Tricon system declaration and the certification status of the exact 3664 hardware revision.
• UL/cUL: Confirm certification from the applicable Tricon system documentation. Do not infer UL/cUL status solely from the Triconex brand.
• ATEX/IECEx: Do not assume that the 3664 itself is hazardous-area certified. Hazardous-area suitability depends on the complete certified system, enclosure, field termination, barriers, and installation.
• Marine Approvals: DNV, ABS, or Lloyd’s Register approval must be verified against the exact Tricon system configuration if deployed offshore or on marine installations.
• Functional Safety: The 3664 is safety-system I/O, but its presence does not independently establish the SIL capability of a complete safety function. The complete SIF—including sensors, logic solver, output architecture, final elements, diagnostics, and proof-test requirements—must be assessed.
• Application Restriction: Tricon documentation specifically warns against using 3664/3674 in energize-to-trip applications because certain faults can produce a stuck-OFF condition.
• Audit Record: Retain the module nameplate, serial number, hardware revision, safety-system configuration, applicable certificates, and proof-test/maintenance records.

Verify specific lot certifications with OEM.

? Long-Term Storage & Asset Preservation Guide

1. Keep the 3664 in its original ESD shielding bag. The module contains high-density control electronics and connector contacts that should remain protected from static discharge, dust, and handling contamination.
2. Control humidity and condensation. Maintain a clean storage environment, preferably below 60% RH, with stable temperature. Condensation on connector contacts is particularly undesirable because the module will eventually operate on a 24 VDC field circuit with substantial output current capability.
3. Protect the connector and mechanical keying features. Do not place the module directly on the connector face or stack heavy equipment against the housing. The mechanical keying system is part of the installation-control strategy and should remain undamaged.
4. Preserve the safety configuration. Store the module’s model, revision, serial number, installed chassis location, Tricon system version, and application association together. A spare with the wrong revision can create a configuration-control issue even when its electrical ratings appear identical.

Physical Installation Prerequisites

• Chassis Compatibility: Install only in the specified Tricon chassis and module position. Tricon modules are mechanically keyed to help prevent installation into an incompatible location.
• External Termination: The 3664 requires a separate external termination panel (ETP) and system cable interface to connect field wiring to the Tricon backplane.
• Field Power: Digital outputs source current to field devices; field power must therefore be correctly wired at the field termination assembly.
• Clearance: Maintain the Tricon chassis manufacturer’s specified front and rear service clearance. Keep wiring from obstructing the chassis cooling path.
• Grounding: Verify chassis protective earth, cabinet bonding, field termination grounding, and shield termination against the approved Tricon installation design.
• Power: Confirm the field circuit remains within the 16–30 VDC recommended range and never exceeds the 36 VDC maximum specified for the module.
• Hot Spare: The DDO architecture supports hot-spare replacement, but online replacement must follow the site’s approved Tricon maintenance procedure.
• Commissioning: Verify every output point, field-load diagnostic, module PASS/FAULT/ACTIVE status, commanded state, and final-element response before returning the safety function to service.

Triconex 3664

Buyer’s FAQ

Q1. What HS tariff code should be used for Triconex 3664?

Do not assign an HS classification solely from the model number. The 3664 is a specialized industrial safety-system digital output module, and the final tariff classification depends on its function and the importing country’s tariff schedule.

Have the customs broker confirm the classification before issuing the commercial invoice. The product description should clearly identify it as a 32-point dual digital output module for a safety-instrumented system.

Q2. Does Country of Origin affect this spare?

Yes. COO can affect duty rates, preferential tariff eligibility, origin declarations, and trade-compliance screening.

Some commercial listings identify the 3664 as U.S. origin, but this should not be copied into a controlled ERP record without documentary support. Confirm COO from the physical unit, OEM records, or supplier Certificate of Origin.

Q3. Should shipping insurance be purchased?

For a safety-system I/O module, insurance should be evaluated against replacement value and process-safety consequences rather than weight alone. The module is compact, but damage to the connector, housing, or electronics can make a strategic spare unusable.

Photograph the serial number, connector, keying features, LEDs, and packaging before dispatch. Use ESD shielding and rigid cushioning for international transportation.

Q4. Does the 3664 include the latest firmware pre-loaded?

Do not assume a standalone 3664 has a universally applicable “latest firmware” state. The module must be compatible with the installed Tricon system hardware and software revision.

At receiving inspection, record the hardware revision and serial number, then verify compatibility against the target Tricon system before installation. Do not release the spare solely because the model number matches.

Asset-control note: Maintain TRICONEX 3664 as a distinct material identity. Do not interchange it with 3674 merely because both are 24 VDC, 32-point dual digital output modules; their specified fault behavior differs, including the response to a stuck-ON condition.
