Description
Unboxing & Physical Snapshot
- Manufacturer: Triconex / Invensys
- Part number: 3000678-100
- Product type: I/O Extender Module for Triconex Trident/Tri-GP systems. OEM-derived product guides identify this exact number as the I/O Extender Module.
- Primary function: Extends the Trident I/O bus between system locations and supports remote I/O arrangements.
- Bus architecture: Triplicated I/O bus arrangement.
- Physical dimensions: OEM verification required.
- Unit weight: One secondary supplier lists approximately 1 kg; use the actual measured weight for logistics records.
- Estimated packed shipping weight: Approximately 1.5–2.5 kg, pending actual packaging.
- What’s in the box: 3000678-100 I/O Extender Module; I/O bus cables, interconnect assembly, terminators, or end caps only when specifically included with the ordered kit.
- Receiving inspection: Record part number, serial number, hardware revision, date code, connector condition, power terminals, and ESD packaging.
Product Introduction
Architecture hook: The 3000678-100 is a physical I/O Extender Module within the Trident/Tri-GP architecture. It is used with the I/O bus infrastructure rather than serving as a conventional field I/O card. Triconex documentation identifies it in Model 2281 I/O Bus Extender kits and Model 2291/2292 bus termination kits.
Its role becomes particularly important in remote-I/O installations. Technical documentation describes three DB-9 I/O bus connectors—one for each redundant channel—and two 24 V logic-power input terminal blocks with fuse and blown-fuse indicators, together with a protective-earth terminal block.
Core Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Triconex / Invensys |
| Part number | 3000678-100 |
| Product type | I/O Extender Module |
| System family | Trident / Tri-GP |
| Primary function | I/O bus extension |
| Bus architecture | Triplicated I/O bus |
| I/O bus connectors | 3 × DB-9, one per channel |
| Logic power inputs | 2 × 24 V logic-power inputs |
| Fuse monitoring | Fuse and blown-fuse indication |
| Protective earth | Dedicated PE terminal block |
| Typical kit | Model 2281 I/O Bus Extender Module Kit |
| I/O termination kit | Model 2291 |
| MP termination kit | Model 2292 |
| Compatible interconnect | 2921 for I/O; 2920 for MP applications |
| Typical bus cable | 4000056-002 or revision-specific equivalent |
| Power consumption | OEM verification required |
| Heat dissipation | OEM verification required |
| Operating temperature | Verify applicable Trident/Tri-GP manual |
| Storage temperature | Verify applicable Trident/Tri-GP manual |
| Dimensions | OEM verification required |
| Weight | Approximately 1 kg reported by one secondary source |
| Firmware | Verify hardware revision/system documentation |
| Certifications | Verify exact hardware revision |

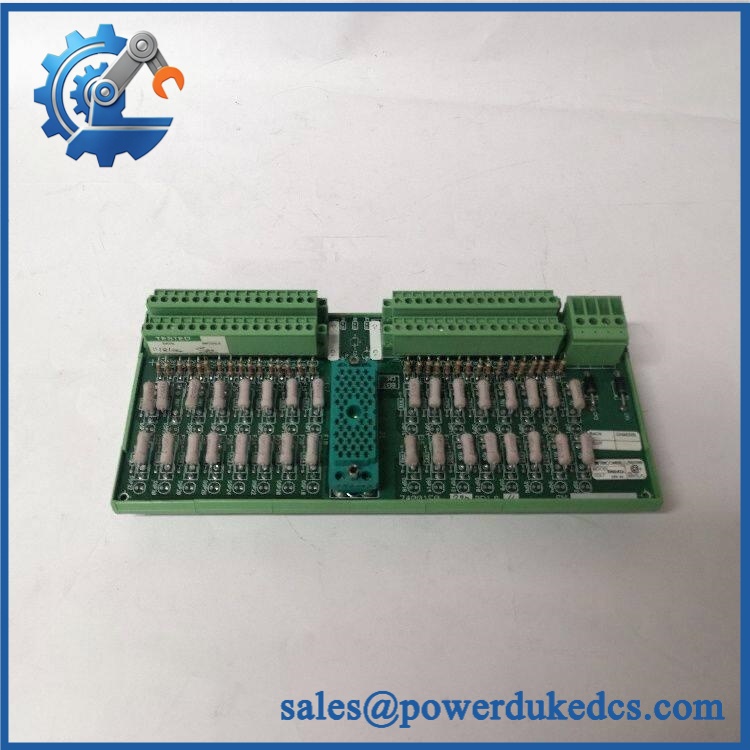

Triconex 3000678-100
The technical application documentation specifically identifies 3000678-100 as the I/O Extender Module and shows its use with three I/O bus channels, redundant 24 V logic power, fuse indication, and protective earth.
For remote I/O, three 3000678-100 modules can be used in configurations requiring triplicated bus paths; the associated cable, interconnect, and termination components must match the approved architecture.
Global Compliance & Industry Certifications
- IEC 61508: Verify the applicable functional-safety certification for the complete Tricon/Trident system configuration.
- IEC 61511: Evaluate compliance within the SIS lifecycle and application; do not treat the extender module alone as a complete safety function.
- CE Mark: Verify the applicable Triconex/Schneider Electric declaration.
- UL/cUL: Confirm certification for the exact hardware revision.
- FM/CSA: Verify where hazardous-location certification is required.
- ATEX/IECEx: Do not assume hazardous-area approval merely because the module is used within a safety-system architecture.
- Marine approvals: DNV/DNV GL, ABS, or other marine approvals require separate confirmation for the applicable system configuration.
The I/O extender is part of the communication path between safety-system components. Incorrect cable termination, grounding, power redundancy, or bus termination can affect system availability and fault detection.
Verify specific lot certifications with OEM.
Long-Term Storage & Asset Preservation Guide
Keep the 3000678-100 in its original ESD shielding bag. Protect the three DB-9 connectors and 24 V terminal blocks from dust, oxidation, and mechanical impact.
Protect the connector interfaces from humidity. Store below approximately 60% RH where practical, with no condensation, salt contamination, or corrosive gases. Connector oxidation can create intermittent bus faults after years on the shelf.
Preserve the associated accessory identity. Keep the module’s cables, interconnects, terminators, and kit documentation separately identified rather than combining them into an anonymous “Trident spare” box (the bus architecture depends on correctly matched components).
Physical Installation Prerequisites
- Install only within an approved Trident/Tri-GP I/O bus architecture.
- Verify whether the application requires an I/O-baseplate extender configuration or MP-baseplate termination configuration.
- Confirm the correct interconnect assembly: 2921 for I/O or 2920 for MP applications.
- Verify the three redundant I/O bus connections.
- Confirm the two 24 V logic-power inputs and associated fuse monitoring.
- Connect protective earth according to the approved Triconex installation procedure.
- Use the specified I/O bus cable length and part number.
- Inspect DB-9 connectors for bent contacts, contamination, or oxidation.
- Maintain cabinet ventilation and the manufacturer’s specified clearance.
- Do not apply an arbitrary 50 mm clearance without checking the applicable installation guide.
- Verify I/O bus termination at the appropriate end of the network.
- After installation, verify all three communication channels and power/fuse indications.
- Follow the approved safety-system maintenance and Management of Change procedures.
Buyer’s FAQ
Q: What HS tariff code should be used for 3000678-100?
A: Classify it according to its confirmed function as an industrial control-system I/O bus extender/interface module, then have the customs broker validate the applicable HS code for the destination country. Do not classify it as a conventional analog or digital I/O card.
Q: What should be declared as Country of Origin?
A: One secondary supplier lists USA as COO, but that listing is not sufficient evidence for an audit-grade declaration. Use the physical marking, OEM documentation, or supplier Certificate of Origin for the specific unit.
Q: What accessories are required for a remote I/O installation?
A: Depending on the configuration, the 3000678-100 is used with I/O bus cables, an interconnect assembly, and bus termination hardware. Model 2281, 2291, and 2292 kits provide different combinations of these components.
Q: Does the 3000678-100 contain the latest firmware?
A: Do not treat it like a programmable processor. The primary function is physical I/O-bus extension. Nevertheless, record the hardware revision and verify system compatibility before installation, particularly when maintaining legacy Trident/Tri-GP systems.
Asset-Control Warning
TRICONEX 3000678-100 is an I/O Extender Module, not a conventional field I/O module. Triconex documentation identifies it as the extender used in 2281 I/O Bus Extender, 2291 I/O Baseplate Termination, and 2292 MP Baseplate Termination configurations.
For warehouse release, verify the part number, hardware revision, three-channel bus configuration, compatible interconnect/cable, termination arrangement, actual weight, and certification documentation before marking the spare installation-ready.
