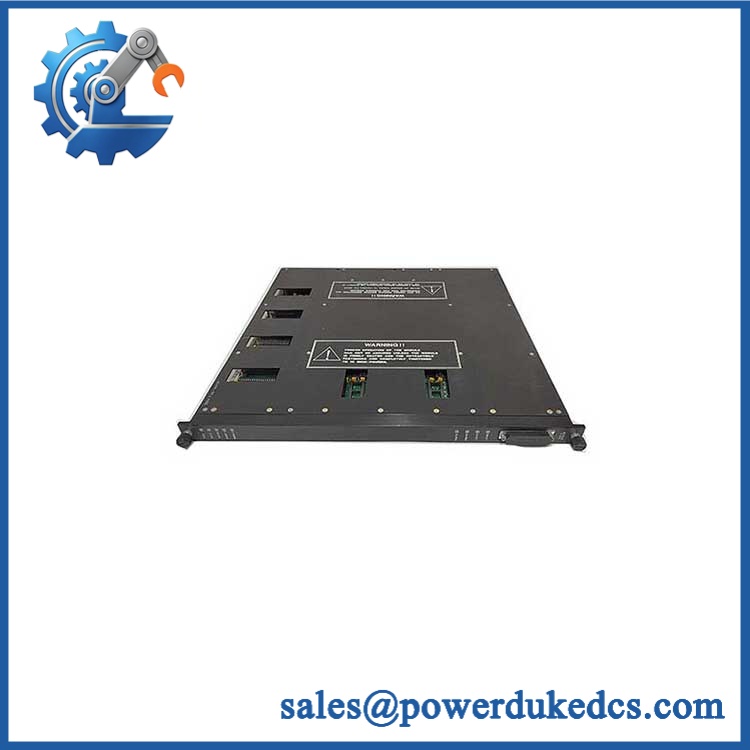

TRICONEX 300656-210 | MP2100 TMR Main Processor Module

Description

• Brand: TRICONEX
• Full Model Number: 300656-210
• System/Series Family: Tricon Safety Instrumented System
• One-Sentence Core Function: Main processor module for executing the Tricon control application and participating in the TMR fault-tolerant voting architecture
• Top 3 Hardcore Specs: MP2100 designation reported by current supplier references; Triple Modular Redundancy; Tricon main-processor application
• Stock Status: Exact hardware revision, processor generation, and service condition to be confirmed

Module 3: Technical Product Introduction

A failed main processor is a fundamentally different spare-parts event from an I/O-card failure. In a Tricon controller, the processor assembly participates directly in the execution of the control program, diagnostics, and TMR architecture. Current industrial supplier references identify TRICONEX 300656-210 as an MP2100 Main Processor Module, while other supplier material categorizes the same part number inconsistently. That identification conflict is important for procurement: the exact physical nameplate, Tricon controller revision, and original engineering documentation should be used as the final authority before installation.

Tricon systems use three independent main processors whose results are compared and voted to maintain operation when a single channel develops a fault. Tricon documentation describes this architecture as Triple Modular Redundancy, with diagnostics operating continuously across the three processor channels. The exact electrical, memory, firmware, and processor-generation specifications for 300656-210 / MP2100 could not be independently verified from an authoritative manufacturer document in the available sources, so figures such as CPU speed, RAM size, and firmware version should not be inserted into a purchase specification without confirming the installed revision.

Module 4: Application Scenarios & Field Realities

• Inside a Tricon main chassis, a processor replacement must be approached as a system-level maintenance task. Confirm the controller model, installed processor population, firmware environment, and chassis configuration before removing the suspect unit. A processor that reaches startup diagnostics can still be unsuitable if its software or hardware revision does not match the other channels.
• For TMR safety applications, the three processor channels must remain compatible enough for coordinated execution and voting. Check the existing processor labels as a set rather than evaluating one spare in isolation. A part number that looks close on the warehouse shelf is not sufficient evidence of interchangeability.
• During online maintenance planning, review the approved Tricon maintenance procedure for the specific controller revision before attempting a processor exchange. Hot-spare and replacement practices depend on the architecture and system version; do not generalize a procedure from one Tricon generation to another.
• When supporting an aging Tricon installation, preserve the controller configuration and software records before declaring the processor defective. Capture diagnostics, firmware identification, controller revision, and the condition of all three processor positions. That evidence helps separate a genuine processor fault from a chassis, power, communication, or configuration problem.

TRICONEX 300656-210

Module 5: Migration, Compatibility & Installation Traps

Replacement Matrix

Replacement Classification: Configuration-Matched Replacement — Do Not Assume Universal Drop-in Compatibility

TRICONEX 300656-210 should be treated as a direct replacement only within the verified Tricon architecture and hardware revision for which the unit was originally specified. Current supplier references identify it as an MP2100 Main Processor Module, but the available documentation does not establish a sufficiently detailed OEM interchange table for every Tricon generation.

A firmware download or application recompile should not be assumed automatically. The correct migration path depends on the existing Tricon controller generation, processor revision, operating software, and TriStation project environment. Compatibility should be demonstrated from the customer’s installed configuration rather than inferred from the family name.

⚠️ Field Traps — Watch Out

1. Processor-generation mismatch: Tricon systems have used multiple main-processor generations, and public product references do not provide enough verified information to prove that every “3006” or similar processor family is interchangeable with 300656-210. Confirm the exact processor identification and controller revision before installation.

2. TMR channel inconsistency: Do not replace one processor while overlooking revision differences across the other two processor channels. Record all three processor labels, firmware revisions, diagnostic status, and chassis positions before beginning the replacement procedure.

3. Configuration and diagnostics: A processor can pass basic power-up checks while still failing to participate correctly in the TMR control application. Verify processor-to-processor communication, application execution, diagnostic status, and voting behavior through the approved Tricon maintenance procedure.

Module 6: Quality Assurance SOP

Because public documentation for the exact 300656-210 revision is limited, pre-shipment QA should emphasize identification, processor diagnostics, and system-level compatibility.

• OEM identification visual inspection: Verify TRICONEX markings, 300656-210 part number, complete label information, serial number, hardware revision, connectors, and PCB identification.
• Processor configuration record: Record the processor identification and compare the replacement against the customer’s three installed processor channels.
• Mechanical inspection: Examine the PCB, connector interfaces, ejector hardware, mounting surfaces, heatsink or thermal hardware, and exposed components for impact, corrosion, contamination, or evidence of previous repair.
• Power verification: Install the module in an approved Tricon test chassis and verify stable power-up under the applicable controller configuration.
• Power-on self-test (POST): Confirm normal processor initialization, status indicators, diagnostic behavior, and expected startup sequence.
• Processor diagnostic verification: Run the approved Tricon diagnostic tests and record all processor, memory, communication, and system-status results.
• TMR communication check: Where the test platform permits, verify communication between the replacement processor and the other processor channels.
• TMR voting verification: Confirm that the replacement channel participates correctly in the system’s fault-tolerant voting and does not generate an unexplained processor discrepancy.
• Application execution test: Load or execute the authorized test application and verify correct program execution, scan behavior, diagnostic reporting, and controller status.
• Configuration verification: Compare firmware, operating-system information, TriStation configuration, controller revision, and other applicable software parameters against the customer’s baseline.
• Extended stability test: Run the processor under controlled operation while monitoring diagnostic status, communication stability, processor temperature, and controller behavior.
• Final QC record: Retain full part-number photographs, hardware revision, diagnostic logs, firmware identification, TMR test results, application-test results, thermal observations, and final QC approval.

For TRICONEX 300656-210, the central purchasing issue is exact identity rather than generic “Tricon processor” classification. Current supplier references identify the part as an MP2100 Main Processor Module, while authoritative Tricon documentation confirms the underlying TMR processor architecture but does not provide enough evidence in the retrieved sources to validate every detailed electrical or firmware specification for this exact suffix. A production replacement should therefore be released only after the physical nameplate, controller generation, firmware revision, and installed three-channel processor configuration have been reconciled.
