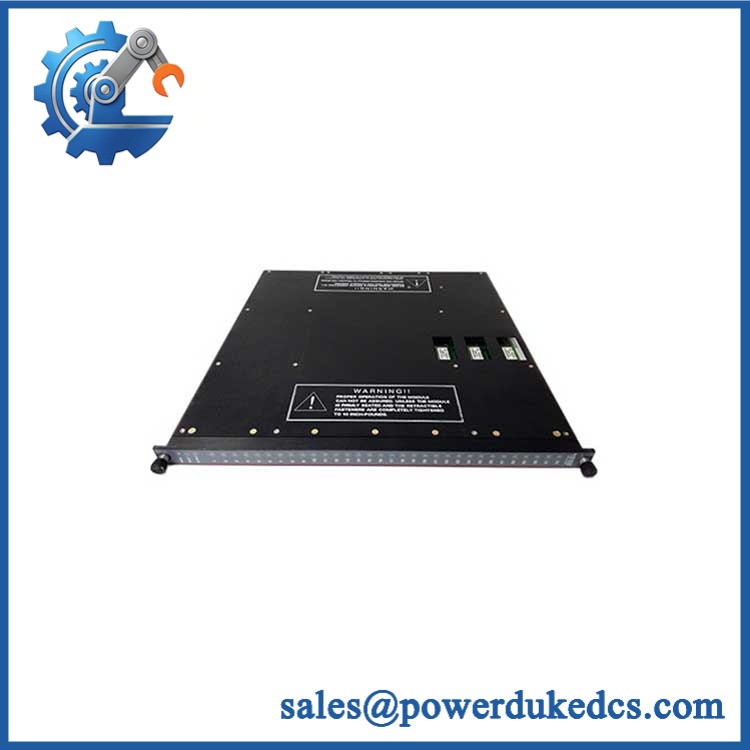

TRICONEX 3503E | Tricon TMR 32 Point Digital Input Module

Description

• Brand: TRICONEX / Invensys
• Full Model Number: 3503E
• System/Series Family: Tricon v9–v11
• One-Sentence Core Function: 32-point TMR digital input module for 24 VAC/VDC field signals with built-in input diagnostics
• Top 3 Hardcore Specs: 32 inputs commoned in groups of 8; 20–42.5 VDC recommended input range; <8 ms On response / <15 ms Off response
• Stock Status: Stock condition and hardware revision to be confirmed

Module 3: Technical Product Introduction

A failed digital input module can remove a large group of field states from the Tricon controller at once—shutdown switches, breaker feedback, valve limit contacts, motor status, and permissive circuits may all be affected. TRICONEX 3503E is a 32-point TMR digital input module for Tricon v9–v11 systems. Its inputs are arranged as four groups of eight commoned points, with opto-isolation between the field circuits and module electronics. Each input has an individual state indicator, while the module also reports overall Pass, Fault, and Active status.

The electrical thresholds are important during a replacement. The 3503E is designed for a nominal 24 VAC/VDC field interface, with a recommended 20–42.5 VDC input range and 42.5 VAC/VDC maximum. The typical Off-to-On threshold is 15 VAC/VDC, with 18 VAC/VDC specified as the worst-case limit; On-to-Off occurs at 8 VAC/VDC typically and 6 VAC/VDC worst case. Input delay is specified at less than 8 ms for Off-to-On and less than 15 ms for On-to-Off, while module logic power consumption is below 10 W.

Module 4: Application Scenarios & Field Realities

• On emergency shutdown and permissive circuits, the 3503E is suited to 24 VAC/VDC discrete field signals where the input state participates in safety logic. The four groups of eight are commoned, so the field common arrangement must be checked against the actual termination design before wiring the spare.
• For motor, pump, and valve status monitoring, all 32 points can be used for equipment-state feedback, with each point having its own status indication. Check the voltage at the module termination rather than assuming the field supply remains at nominal 24 V after cable losses and contact resistance.
• In applications with intrinsic-safety barriers, the 3503E deserves special attention. The Tricon installation guide specifically states that this model is not recommended for shunt-diode intrinsic-safety barriers and identifies Model 3505E for those applications.
• During fault investigation, the input self-test capability is useful for distinguishing a module problem from a field-wiring problem. The documented diagnostic coverage includes periodic input toggling, with a typical 20 ms diagnostic glitch duration. That test behavior should be considered when the 3503E input is paralleled with another monitoring device.

TRICONEX 3503E

Module 5: Migration, Compatibility & Installation Traps

Replacement Matrix

Replacement Classification: Drop-in Replacement Within the Matching Tricon 3503E Configuration

A like-for-like 3503E replacement is generally appropriate when the installed Tricon controller uses the same 3503E digital-input architecture, compatible chassis/baseplate, termination arrangement, and approved application configuration. The Tricon technical product guide identifies 3503E as a 32-point TMR digital input module for 24 VAC/VDC, with inputs commoned in groups of eight.

3503E → 3505E: Hardware Modification / Engineering Review Required. Both belong to the 24 VDC digital-input family, but 3505E is the low-threshold version and is specifically recommended for applications using shunt-diode intrinsic-safety barriers. Their field-interface behavior should therefore not be assumed identical.

3503E → 3504E: Hardware Modification Required. The Tricon guide identifies 3504E as a 64-point high-density DC input module, while 3503E provides 32 commoned points. Channel count, field wiring, and termination requirements are different.

⚠️ Field Traps — Watch Out

1. Intrinsic-safety barrier mismatch: Do not use 3503E with a shunt-diode intrinsic-safety barrier without an approved engineering basis. Tricon documentation specifically directs users toward 3505E for that application.

2. Commoned input groups: The 32 points are commoned in groups of eight, not individually isolated field channels. Review the field common and barrier arrangement before connecting the replacement.

3. Diagnostic glitch behavior: The self-test can create a diagnostic signal condition of approximately 20 ms typical. Where an input is paralleled with another controller or monitoring device, verify that this test behavior cannot be interpreted as a real field-state transition.

4. Part-number contamination: The submitted text also included RH916FN. That identifier is not a Triconex 3503E option code in the documentation reviewed; it is a Foxboro Type 4 terminal cable, 20 m long, superseding P0916FN. It should not be incorporated into the 3503E model description unless the order intentionally contains both products.

Module 6: Quality Assurance SOP

Each TRICONEX 3503E should pass a documented identification, electrical, diagnostic, and channel-level test before shipment.

• OEM identification visual inspection: Verify TRICONEX / Invensys markings, 3503E designation, serial number, hardware revision, module label, connectors, and front-panel indicators.
• Part-number reconciliation: Record 3503E separately from any cable or termination part numbers. In particular, do not record RH916FN as part of the Triconex module number; current Foxboro documentation identifies RH916FN as a 20 m Type 4 terminal cable.
• Mechanical inspection: Examine the module housing, connector interfaces, ejector hardware, keying features, LEDs, PCB, and mounting surfaces for corrosion, contamination, impact, or evidence of repair.
• Power verification: Install the module in an approved Tricon test chassis and apply the correct nominal field voltage. Verify operation within the documented 20–42.5 VDC recommended input range without exceeding the 42.5 VAC/VDC maximum.
• Power-on self-test (POST): Verify Pass, Fault, and Active status behavior during startup.
• 32-channel input test: Exercise each input independently with a controlled AC or DC signal and record the module response.
• Threshold verification: Test representative channels around the documented transition points: below 6–8 V, within the 6–18 V transition region, and above 15–18 V as applicable. Record the applied voltage and resulting logic state.
• Input timing verification: Confirm representative Off-to-On response below 8 ms and On-to-Off response below 15 ms under the approved laboratory conditions.
• Opto-isolation verification: Where permitted by the approved procedure, verify the specified field-to-logic isolation characteristics using suitable test equipment and isolation precautions. The published specification is 1,000 VAC minimum / 1,500 VDC minimum.
• Diagnostic test: Exercise the approved input self-test procedure and verify expected fault detection without allowing the diagnostic pulse to affect external production equipment.
• TMR verification: Confirm correct participation of all three processing paths and verify consistent input reporting through the authorized Tricon test environment.
• Extended stability test: Operate representative inputs under continuous cycling while monitoring module status, diagnostic behavior, and field-signal recognition.
• Final QC record: Retain complete 3503E identification photographs, hardware revision, 32-channel test results, threshold measurements, timing results, diagnostic results, TMR verification, and final QC approval.

The TRICONEX 3503E is a 32-point TMR digital input module for nominal 24 VAC/VDC signals, with inputs commoned in groups of eight, opto-isolated field interfaces, self-test diagnostics, and defined On/Off thresholds and response times.
